DC12V FPC LED Panel
- Item No：FPC220-380-84LED5050-3P-12V
- views：482
Parameter Feature Detail Application

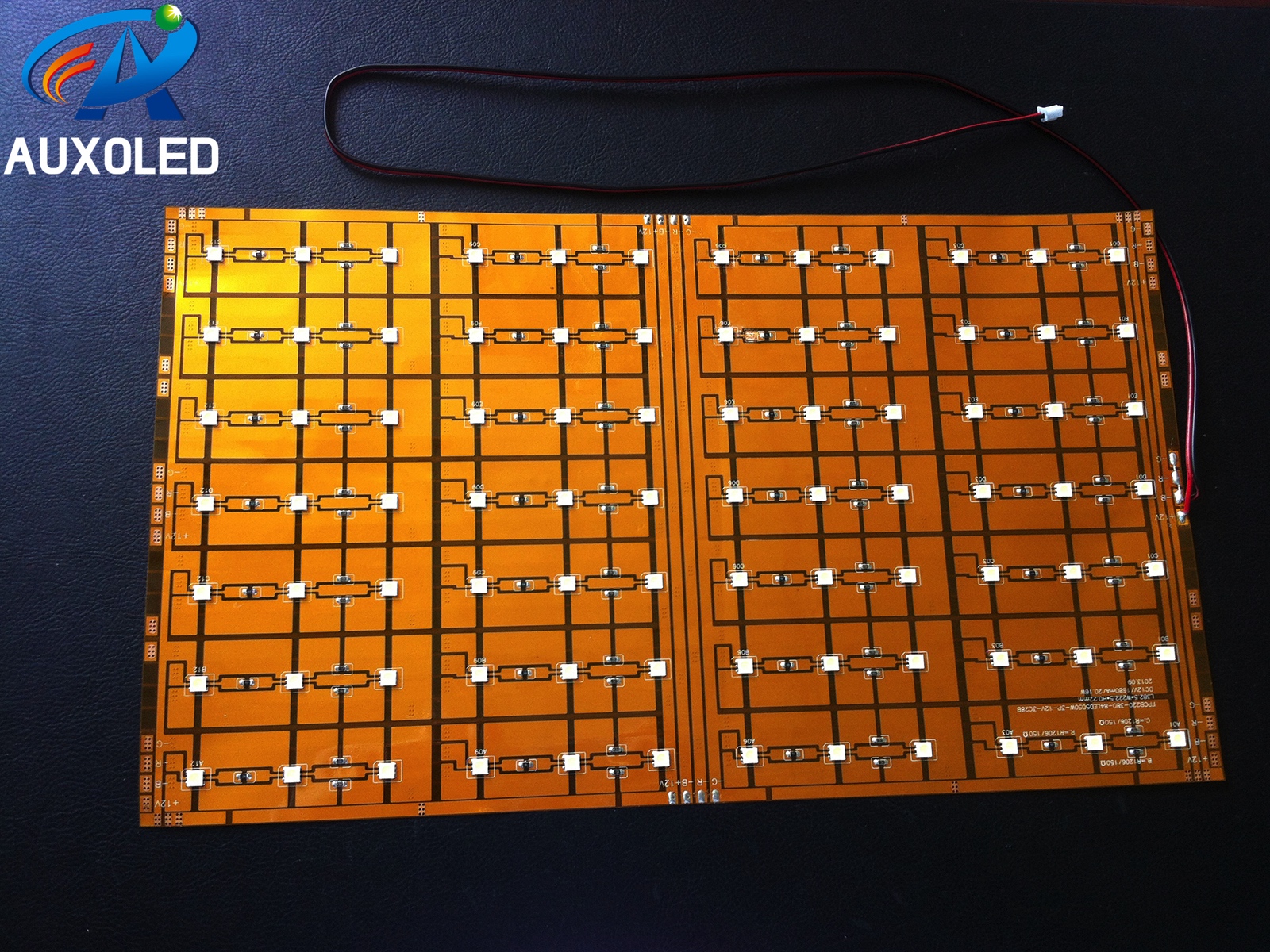

Item Name: DC12V 20.2W RGB FPC LED Panel Light
Item No.: FPC220-380-84LED5050-3P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W220*L380*T0.22 (mm)
Light Source: 84PCS SMD5050 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V
Power Consumption: 20.2W
Emitting Color: White, Red, Green, Blue, RGB
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White), 7000-9000K (Cold White)
Luminous Flux: 1680-1848LM (White Color)
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Can be Soldered into Bigger Size, Suitable for Using as the Backlight of LED Light Box and LED Panel Light
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Multi Emitting Color Optional: White, Red, Green, Blue, RGB, Can Meet Different Desires of Lighting and Illumination
DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Reception Desk, Stage, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC220-380-84LED5050-3P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W220*L380*T0.22 (mm)
Light Source: 84PCS SMD5050 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V
Power Consumption: 20.2W
Emitting Color: White, Red, Green, Blue, RGB
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White), 7000-9000K (Cold White)
Luminous Flux: 1680-1848LM (White Color)
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | CCT | Beam Angle | CRI | IP Class |
| DC12V | 2500-9000K |
120° |
＞70 |
IP20 |
| Item No. | Product Dimensions | Power Consumption | Light Source | Luminous Flux |
| FPC80-400-45LED5050-3P-12V | W80*400*T2.1 (mm) | 10.8W | 45PCS SMD5050 | 900-990LM |
|
FPC180-360-72LED5050-3P-12V |
W180*360*T2.1 (mm) |
17.3W | 72PCS SMD5050 | 1440-1584LM |
|
FPC220-380-84LED5050-3P-12V |
W220*380*T2.1 (mm) |
20.2W | 84PCS SMD5050 | 1680-1848LM |
|
FPC240-500-162LED5050-3P-12V |
W240*500*T2.1 (mm) |
39W | 162PCS SMD5050 | 3240-3564LM |
● Advantages:
Use Imported Epistar Chip LEDs, Super Long Working LifespanCan be Soldered into Bigger Size, Suitable for Using as the Backlight of LED Light Box and LED Panel Light
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Multi Emitting Color Optional: White, Red, Green, Blue, RGB, Can Meet Different Desires of Lighting and Illumination
DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Reception Desk, Stage, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
