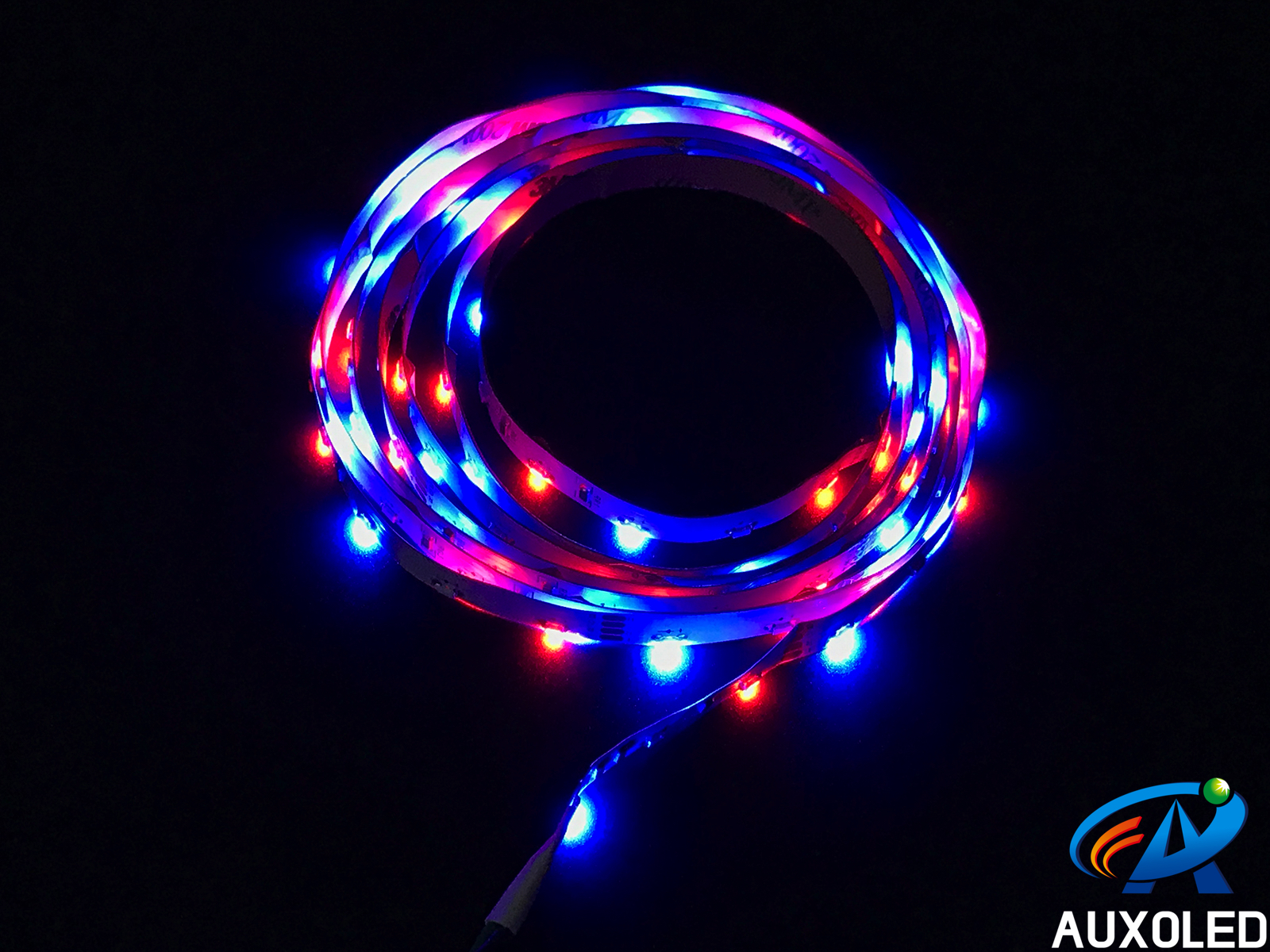

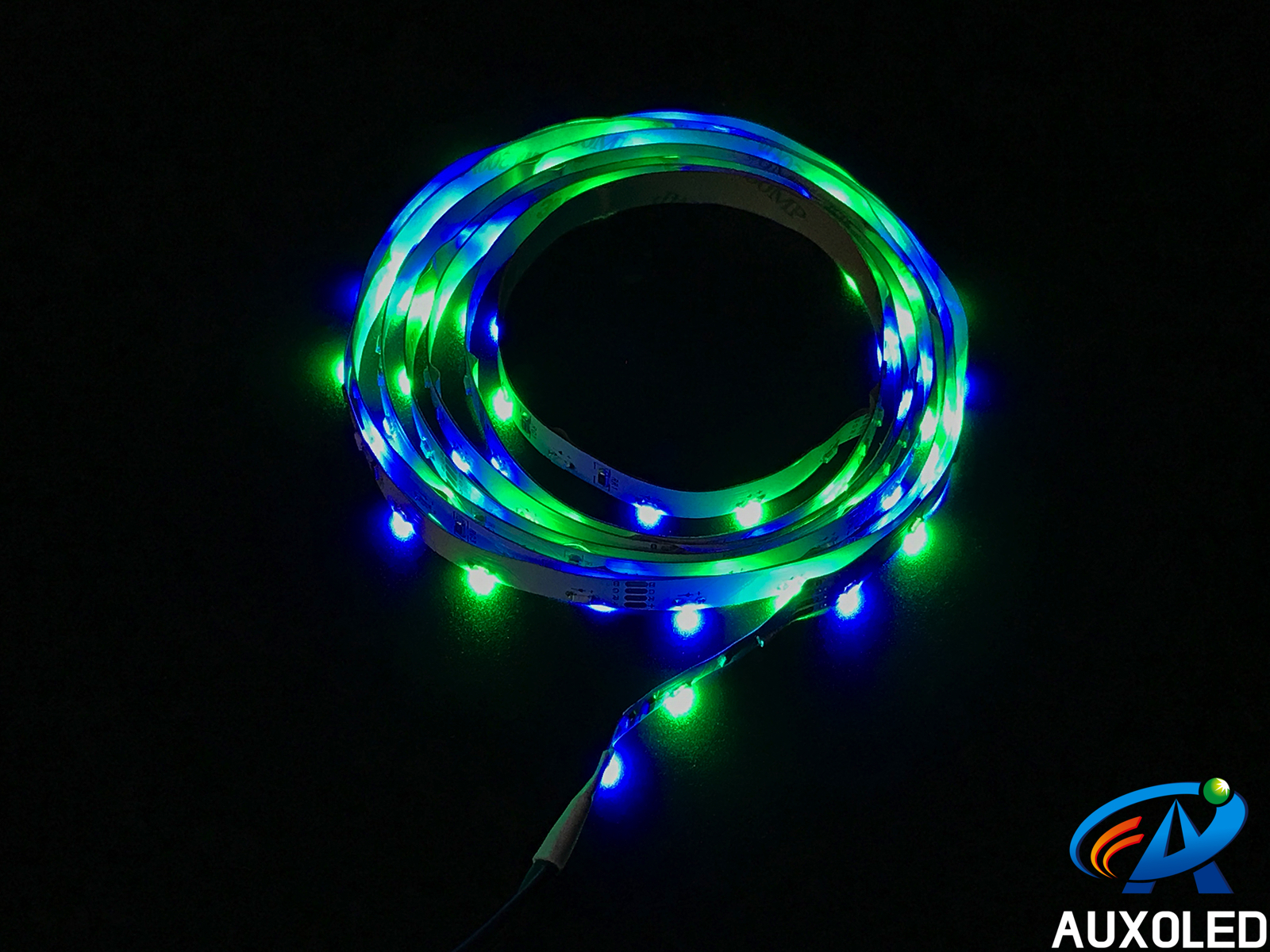

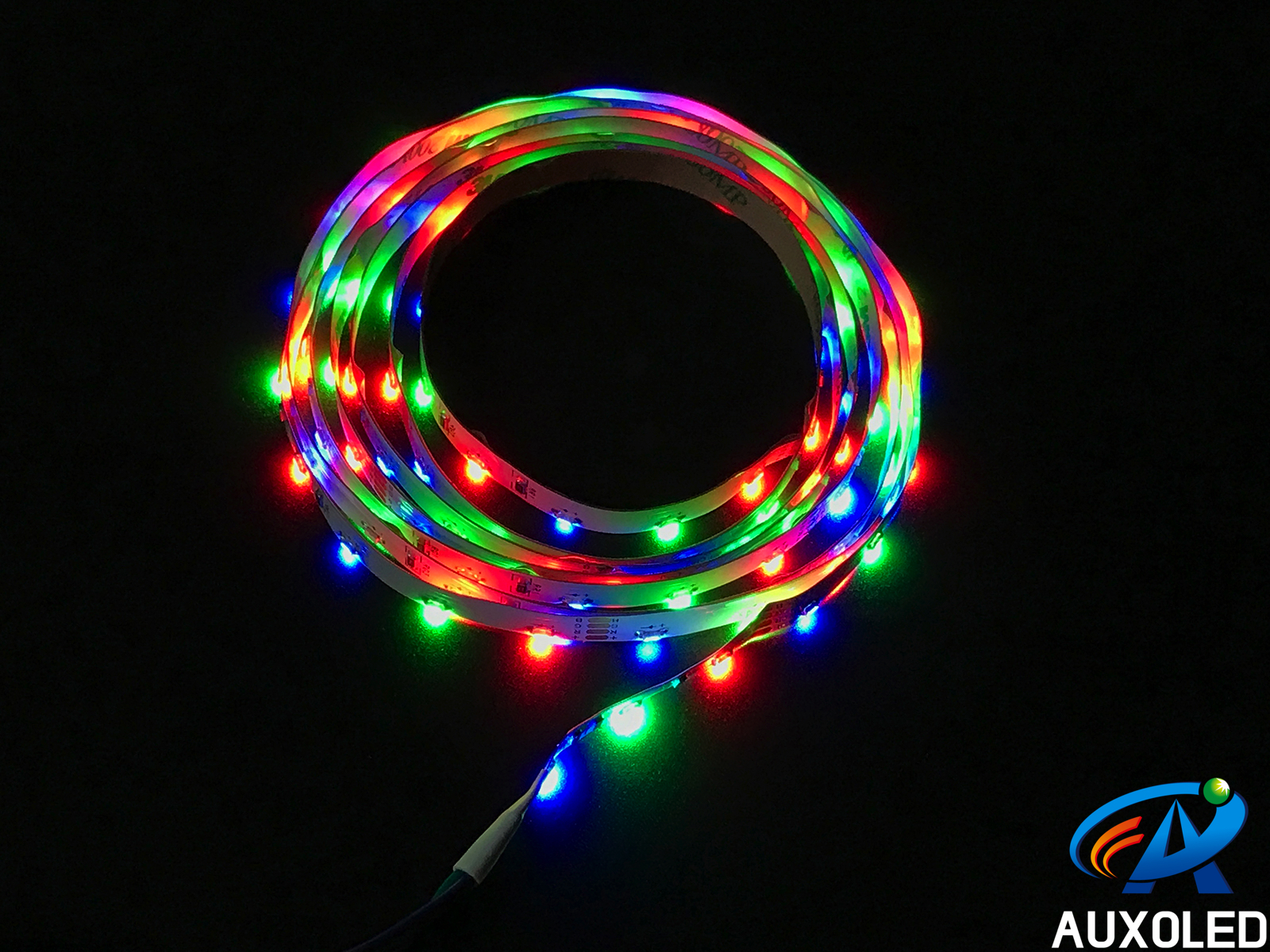

4.8W RGB335 LED Strip
- Item No：FPC8-1000-60LED335RGB-1P-12V
- views：240
Parameter Feature Detail Application
Item Name: DC12V 4.8W RGB335 Flexible LED Strip
Item No.: FPC8-1000-60LED335RGB-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W8*L1000*T2 (mm)
Light Source: 60PCS SMD335 LEDs
Chip Brand: Epistar or Epiled
Beam Angle: 90°
CRI: ＞70 (White)
Input Voltage: DC12V
Power Consumption: 4.8W
Color Temperature: 2500-9000K (White); Available Color: Red, Green, Blue, Yellow, RGB, White
Luminous Flux: 5-6LM/ LED (White Color)
PCB Material: FPC
IP Class: IP20 / IP65
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Can be Used for Both Decoration and Illumination Indoor (IP Class: IP20) and Outdoor (IP Class: IP65)
FPC RA Copper Base, Flexible & Good Ductility, Not Easy to Damage; Optional PCB Color: Yellow, Black and White
Using High Quality Silicone Glue / Silicone Tube for IP65 Waterproof Sealing, Crystal Clear, Less Sticky Fingerprint & Dust, Good Ductility & Sealing, Will not Turn Yellow in 3 years, Not Easy to Break, Smooth & Elegant Sealing Surface
With Imported Adhesive 3M Tape (Model No.: 300LSE) on the Back of the LED Strip, Better Strength & Viscosity
Using Eco-friendly Reel and Anti-static Ziplock Bag for Packing, 5 Meters per Reel; Can Pack as per Customers' Requirements as Well
DC12V or DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC8-1000-60LED335RGB-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W8*L1000*T2 (mm)
Light Source: 60PCS SMD335 LEDs
Chip Brand: Epistar or Epiled
Beam Angle: 90°
CRI: ＞70 (White)
Input Voltage: DC12V
Power Consumption: 4.8W
Color Temperature: 2500-9000K (White); Available Color: Red, Green, Blue, Yellow, RGB, White
Luminous Flux: 5-6LM/ LED (White Color)
PCB Material: FPC
IP Class: IP20 / IP65
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Available Color | Beam Angle | CRI | IP Class |
| DC12V / DC5V | R/G/B/Y/RGB/W |
90° |
＞70 |
IP20 / IP65 |
| Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux |
| FPC5-1000-120LED335RGB-1P-5V | W5*L1000*T2 (mm) | 6W | 120PCS SMD335 | 5-6LM / LED |
|
FPC8-1000-60LED335RGB-1P-12V |
W8*L1000*T2 (mm) |
4.8W | 60PCS SMD335 | 5-6LM / LED |
● Advantages:
Use Imported Epistar or Epiled Chip LEDs, High Brightness & Excellent Quality, Super Long Working LifespanCan be Used for Both Decoration and Illumination Indoor (IP Class: IP20) and Outdoor (IP Class: IP65)
FPC RA Copper Base, Flexible & Good Ductility, Not Easy to Damage; Optional PCB Color: Yellow, Black and White
Using High Quality Silicone Glue / Silicone Tube for IP65 Waterproof Sealing, Crystal Clear, Less Sticky Fingerprint & Dust, Good Ductility & Sealing, Will not Turn Yellow in 3 years, Not Easy to Break, Smooth & Elegant Sealing Surface
With Imported Adhesive 3M Tape (Model No.: 300LSE) on the Back of the LED Strip, Better Strength & Viscosity
Using Eco-friendly Reel and Anti-static Ziplock Bag for Packing, 5 Meters per Reel; Can Pack as per Customers' Requirements as Well
DC12V or DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
