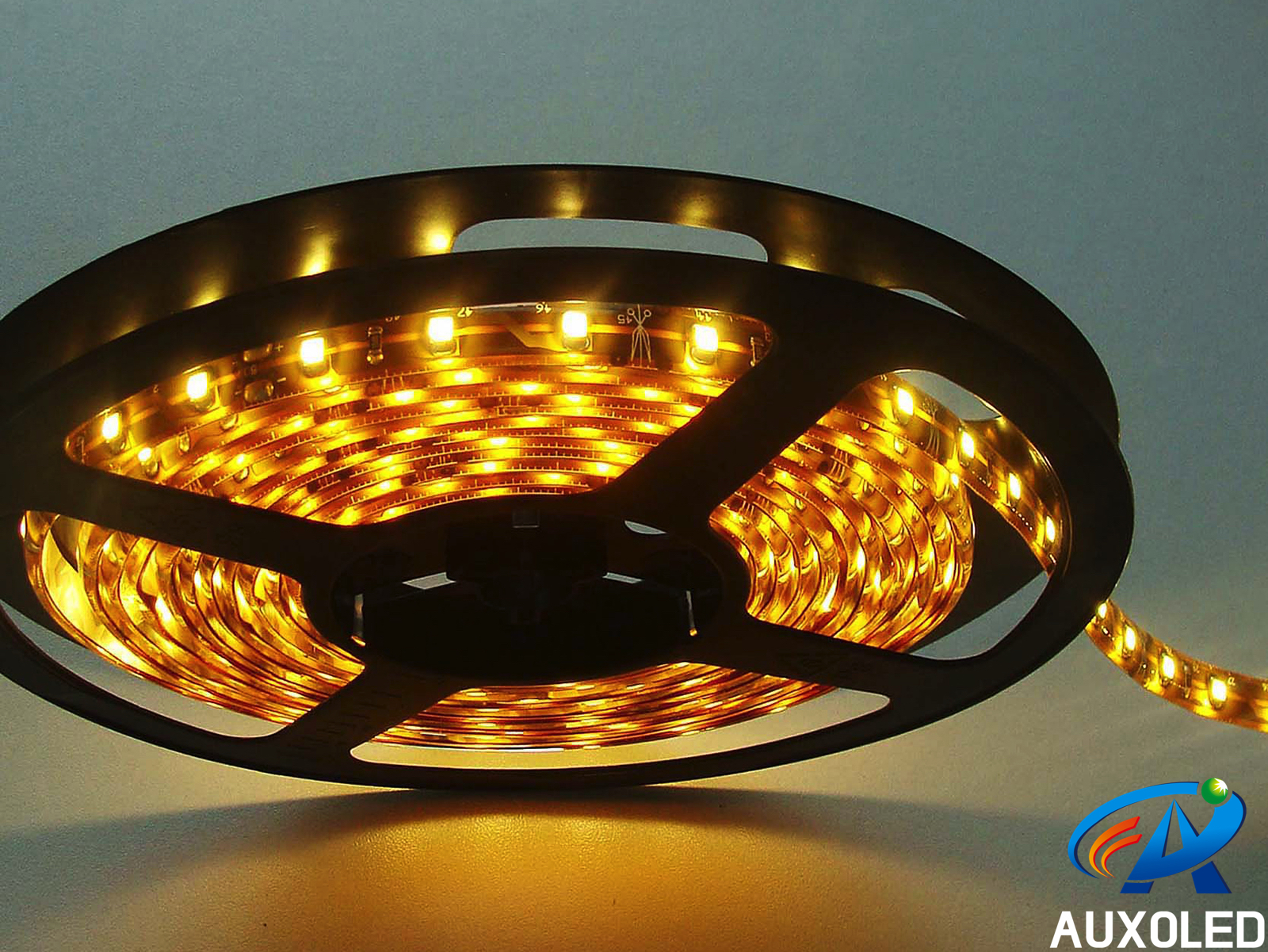

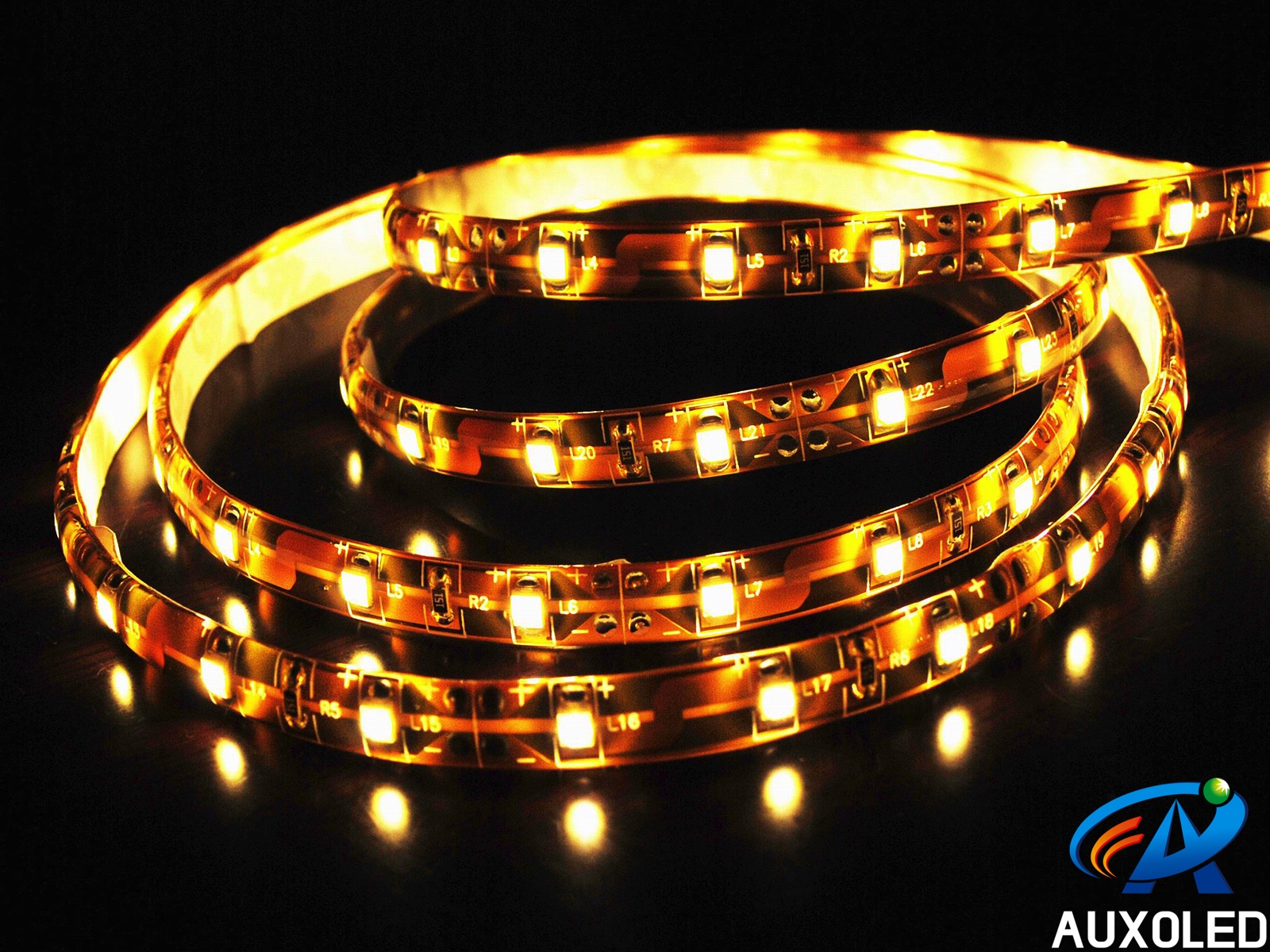

SMD5050 FPC LED Strip
- Item No：FPC10-1000-30LED5050W-3P-12V
- views：230
Parameter Feature Detail Application
Item Name: DC12V 7.2W SMD5050 Flexible LED Strip
Item No.: FPC10-1000-30LED5050W-3P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W10*L1000*T2.1 (mm)
Light Source: 30PCS SMD5050 LEDs
Chip Brand: Epistar or Epiled
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V
Power Consumption: 7.2W
White Beaming Color Temperature: 2500-9000K; Optional Color: White, Yellow, Red, Green, Blue
Luminous Flux: 600-660LM/Meter (White Color)
PCB Material: FPC
IP Class: IP20 / IP65
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Can be Used for Both Decoration and Illumination Indoor (IP Class: IP20) and Outdoor (IP Class: IP65)
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage; Optional PCB Color: Yellow, Black and White
Using High Quality Silicone Glue for IP65 Waterproof Sealing, Crystal Clear, Less Sticky Fingerprint and Dust, Good Ductility and Sealing, Will not Turn Yellow in 3 years, Not Easy to Break, Smooth and Elegant Sealing Surface
With Imported Adhesive 3M Tape (Model No.: 300LSE) on the Back of the LED Strip, Better Strength and Viscosity
Using Eco-friendly Reel and Anti-static Ziplock Bag for Packing, 5 Meters per Reel; Can Pack as per Customers' Requirements as Well
DC12V, DC24V or DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC10-1000-30LED5050W-3P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W10*L1000*T2.1 (mm)
Light Source: 30PCS SMD5050 LEDs
Chip Brand: Epistar or Epiled
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V
Power Consumption: 7.2W
White Beaming Color Temperature: 2500-9000K; Optional Color: White, Yellow, Red, Green, Blue
Luminous Flux: 600-660LM/Meter (White Color)
PCB Material: FPC
IP Class: IP20 / IP65
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | CCT | Beam Angle | CRI | IP Class |
| DC12V / DC5V | 2500-9000K |
90° / 120° |
＞70 |
IP20 / IP65 |
| Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux |
| FPC8-1000-60LED335W-1P-12V | W8*L1000*T2 (mm) | 4.8W | 60PCS SMD335 | 300-360LM |
|
FPC8-1000-120LED335W-1P-12V |
W8*L1000*T2 (mm) |
9.6W | 120PCS SMD335 | 600-720LM |
|
FPC8-1000-60LED3020W-1P-12V |
W8*L1000*T2.3 (mm) |
4.8W | 60PCS SMD3020 | 360-420LM |
|
FPC8-1000-60LED3528W-1P-12V |
W8*L1000*T2.3 (mm) |
4.8W | 60PCS SMD3528 | 420-480LM |
|
FPC10-1000-30LED5050W-3P-12V |
W10*L1000*T2.1 (mm) |
7.2W | 30PCS SMD5050 | 600-660LM |
|
FPC10-1000-30LED5050RGB-3P-5V |
W10*L1000*T2.1 (mm) |
4.5W | 30PCS RGB335 | 600-660LM |
|
FPC10-1000-60LED5050W-3P-12V |
W10*L1000*T2.1 (mm) |
14.4W | 60PCS SMD5050 | 1200-1320LM |
|
FPC10-1000-60LED5050RGB-3P-12V |
W10*L1000*T2.1 (mm) |
14.4W | 60PCS RGB5050 | 1200-1320LM |
● Advantages:
Use Imported Epistar or Epiled Chip LEDs, High Brightness and Excellent Quality, Super Long Working LifespanCan be Used for Both Decoration and Illumination Indoor (IP Class: IP20) and Outdoor (IP Class: IP65)
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage; Optional PCB Color: Yellow, Black and White
Using High Quality Silicone Glue for IP65 Waterproof Sealing, Crystal Clear, Less Sticky Fingerprint and Dust, Good Ductility and Sealing, Will not Turn Yellow in 3 years, Not Easy to Break, Smooth and Elegant Sealing Surface
With Imported Adhesive 3M Tape (Model No.: 300LSE) on the Back of the LED Strip, Better Strength and Viscosity
Using Eco-friendly Reel and Anti-static Ziplock Bag for Packing, 5 Meters per Reel; Can Pack as per Customers' Requirements as Well
DC12V, DC24V or DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
