DC3V SMD1206 LED Strip
- Item No：FPC3.5-360-36LED1206W-1P-3V
- views：441
Parameter Feature Detail Application

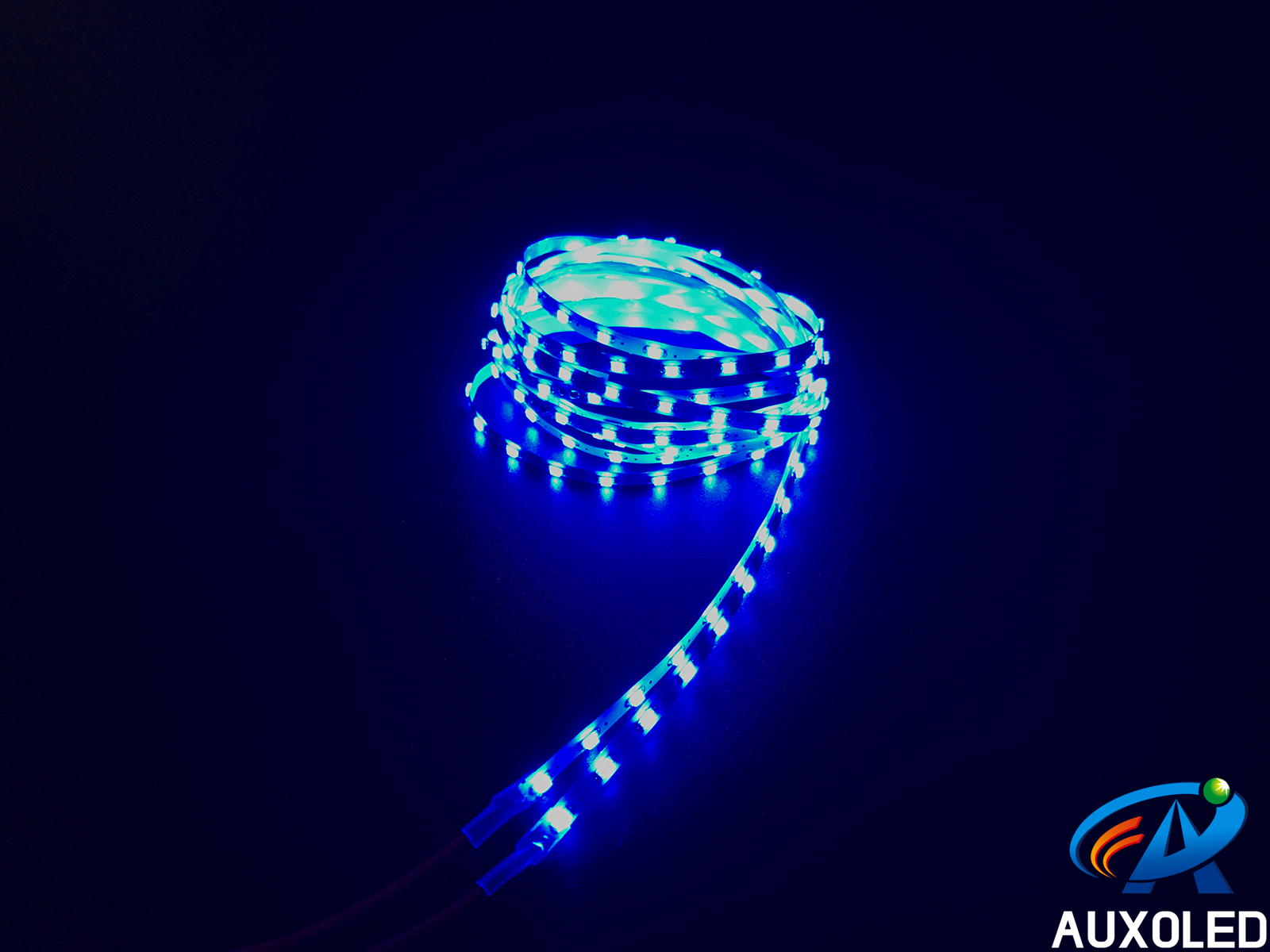

Item Name: 3.5mm DC3V 2.16W Flexible LED Ribbon Strip Light
Item No.: FPC3.5-360-36LED1206-1P-3V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W3.5*L360*T1.80 (mm)
Light Source: 36PCS SMD1206 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V / DC3V
Power Consumption: 2.16W
Available Color: Red, Green, Blue (Ice Blue), Yellow, White
Luminous Flux: 2-3LM/LED (White)
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
2.5mm / 3.5mm Super Narrow PCB Design, Good Application Adaptability
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Multi Colors Optional, Uniform Light Ray with High Light Efficiency
DC12V / DC3V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC3.5-360-36LED1206-1P-3V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W3.5*L360*T1.80 (mm)
Light Source: 36PCS SMD1206 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V / DC3V
Power Consumption: 2.16W
Available Color: Red, Green, Blue (Ice Blue), Yellow, White
Luminous Flux: 2-3LM/LED (White)
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Available Color | Beam Angle | CRI | IP Class |
| DC12V / DC3V | R/G/B/Y/W |
120° |
＞70 |
IP20 |
| Item No. | Product Dimensions | Power Consumption | Light Source | Luminous Flux |
| FPC3.5-360-36LED1206-1P-3V | W3.5*360*T1.8 (mm) | 2.16W | 36PCS SMD1206 | 2-3LM / LED |
|
FPC2.5-500-36LED0805-1P-3V |
W2.5*500*T1.8 (mm) |
2.16W | 36PCS SMD0805 | 3-4LM / LED |
|
FPC2.5-500-60LED0805-1P-12V |
W3.5*500*T1.8 (mm) |
4.8W | 60PCS SMD0805 | 3-4LM/ LED |
● Advantages:
Use Imported Epistar Chip LEDs, Super Long Working Lifespan2.5mm / 3.5mm Super Narrow PCB Design, Good Application Adaptability
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Multi Colors Optional, Uniform Light Ray with High Light Efficiency
DC12V / DC3V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
