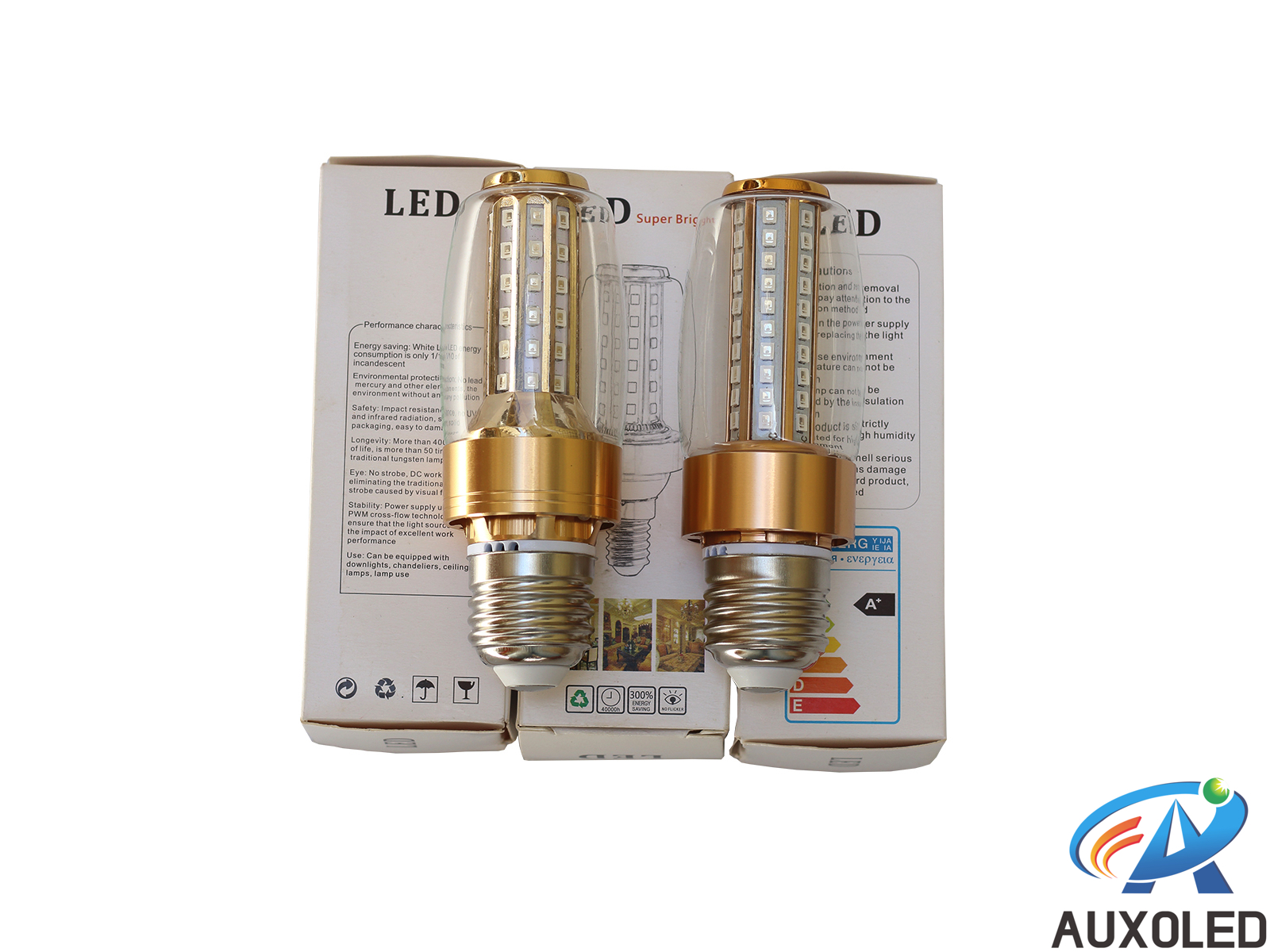

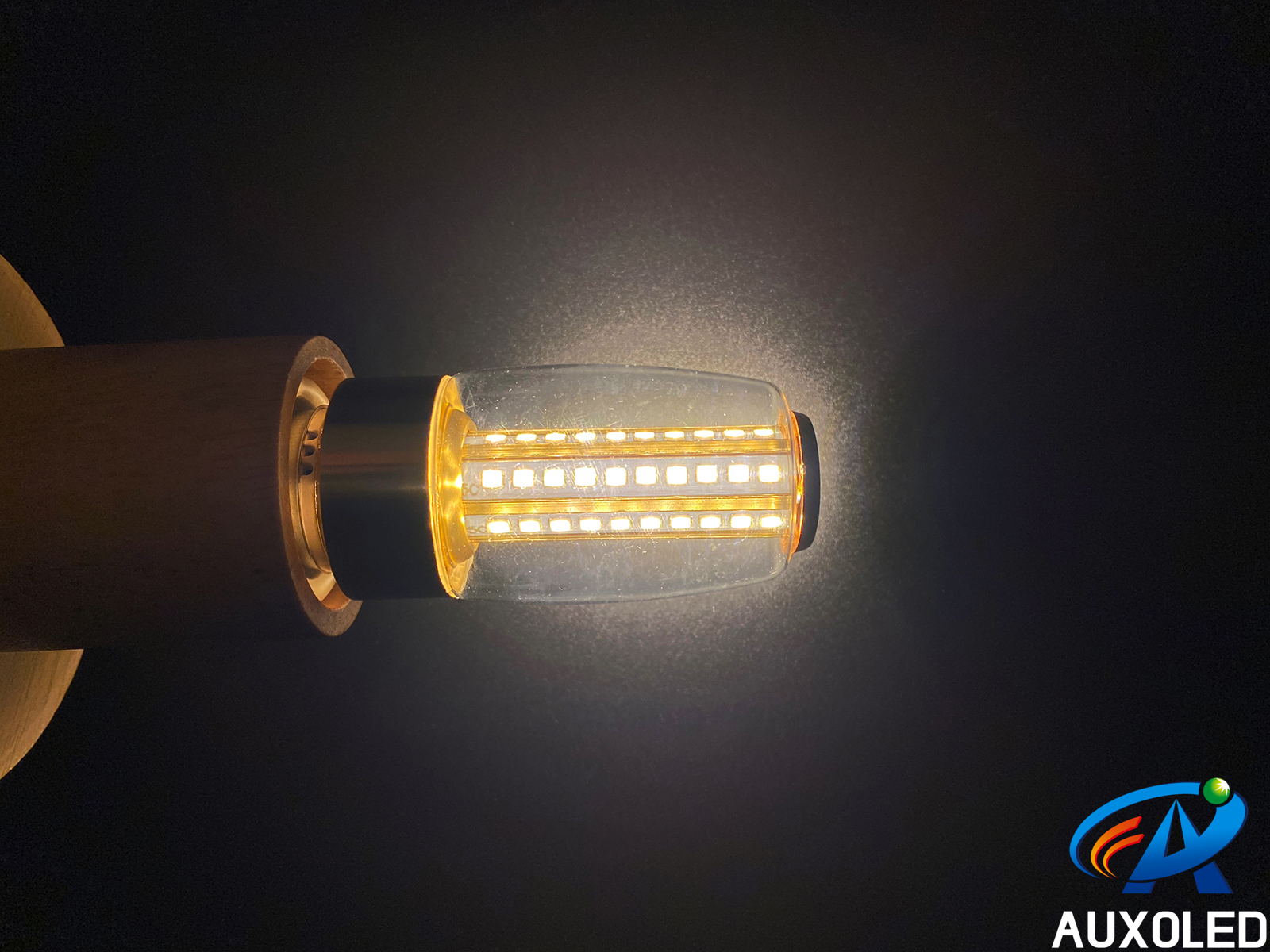

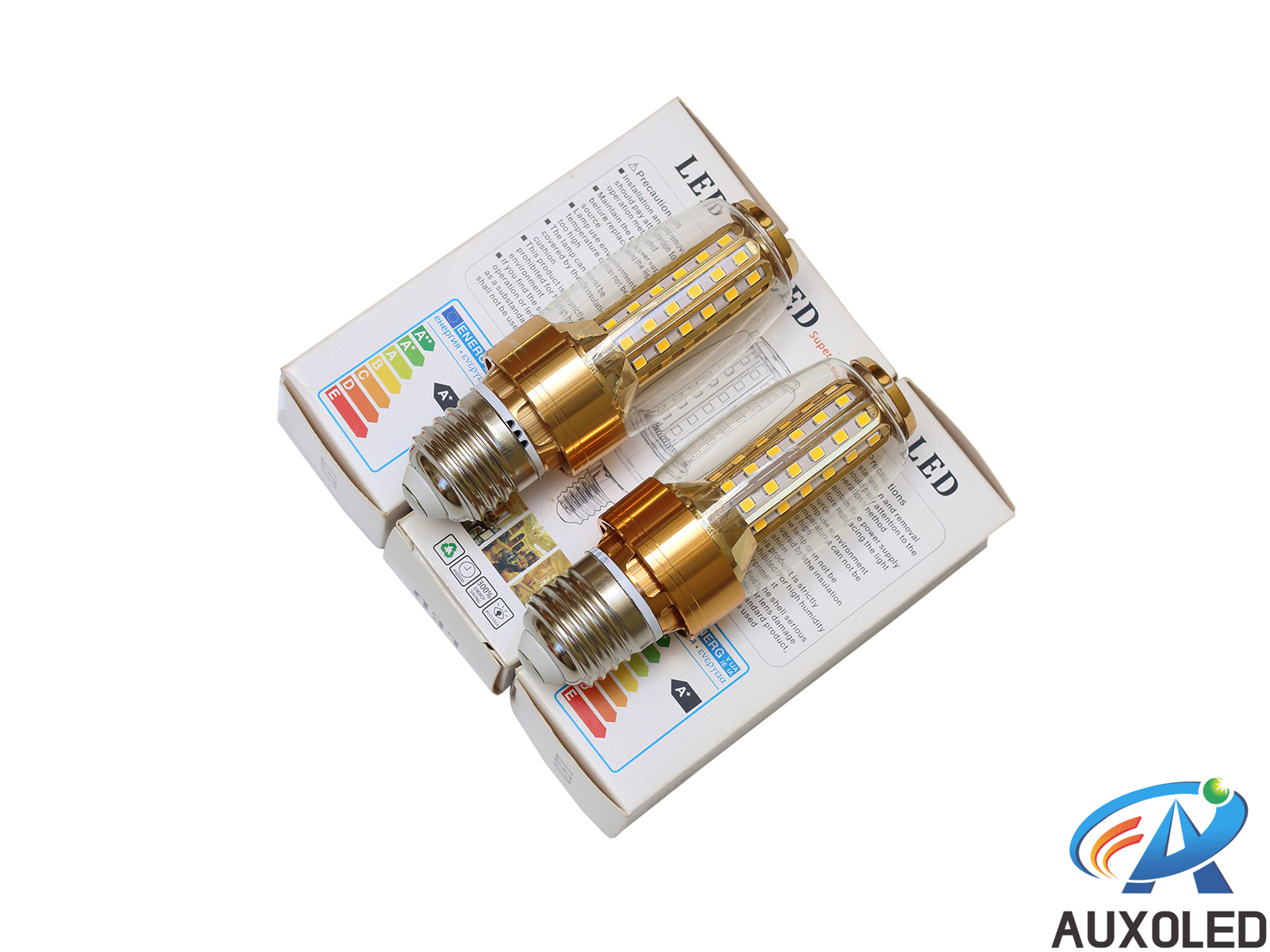

LED Crystal Corn Light
- Item No：AL-CNL9WW-GFB
- views：1132
Parameter Feature Detail Application
Item Name: 9W E27/E14 SMD2835 LED Crystal Corn Light/LED Corn Spotlight/LED Maize Lamp
Item No.: AL-CNL9WW-GFB
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: Φ38*H105 (mm)
Light Source: 58PCS SMD2835 LED
Chip Brand: Epiled, Epistar
Beam Angle: Horizontal 360°
CRI: ＞80
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 9W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Available Color: White (2700-6500K), UV (365-410nm)
Luminous Flux: 90-100LM/W (White)
Base: E26/E27/B22/E14
Main Material: Spaceflight Aluminum + Glass
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Use Excellent Quality Spaceflight Aluminum Radiator, Gorgeous Heat Sink Effect
Anti-UV Glass Cover, 360° Emitting, Uniform Light Ray and High Light Efficiency
Nickel Coated Copper E26/E27/B22/E14 Base, Anodized Treatment, Easy Installation and Replacement
AC85-265V Wide Input Voltage Range Design, Safe and Stable
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
9W, 12W Power Consumption Optional, Meets the Demand of Different Lighting
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Residential Lighting, Supermarket, Shopping Centre, KTV, Hotel, Office, Exhibition Hall, Cabinet, Warehouse, Road, Garden, Park, Courtyard, Bridge, Boat, Dock, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
Item No.: AL-CNL9WW-GFB
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: Φ38*H105 (mm)
Light Source: 58PCS SMD2835 LED
Chip Brand: Epiled, Epistar
Beam Angle: Horizontal 360°
CRI: ＞80
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 9W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Available Color: White (2700-6500K), UV (365-410nm)
Luminous Flux: 90-100LM/W (White)
Base: E26/E27/B22/E14
Main Material: Spaceflight Aluminum + Glass
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | CCT | Beam Angle | IP Class | Luminous Flux |
| AC85-265V | 2700-6500K |
360° |
IP40 | 90-100LM/W |
| Item No. | Product Dimensions | Power Consumption | Light Source | Base |
| AL-CNL9WW-GFB | Φ38*H105 (mm) | 9W | 58PCS SMD2835 | E26/E27/B22/E14 |
|
AL-CNL12WW-GLV |
Φ38*H105 (mm) |
12W | 60PCS SMD2835 | E26/E27/B22/E14 |
● Advantages:
Use Imported Epistar or Epiled LED Chips, Excellent Quality, Super Long Working LifespanUse Excellent Quality Spaceflight Aluminum Radiator, Gorgeous Heat Sink Effect
Anti-UV Glass Cover, 360° Emitting, Uniform Light Ray and High Light Efficiency
Nickel Coated Copper E26/E27/B22/E14 Base, Anodized Treatment, Easy Installation and Replacement
AC85-265V Wide Input Voltage Range Design, Safe and Stable
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
9W, 12W Power Consumption Optional, Meets the Demand of Different Lighting
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Residential Lighting, Supermarket, Shopping Centre, KTV, Hotel, Office, Exhibition Hall, Cabinet, Warehouse, Road, Garden, Park, Courtyard, Bridge, Boat, Dock, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
2 Years
