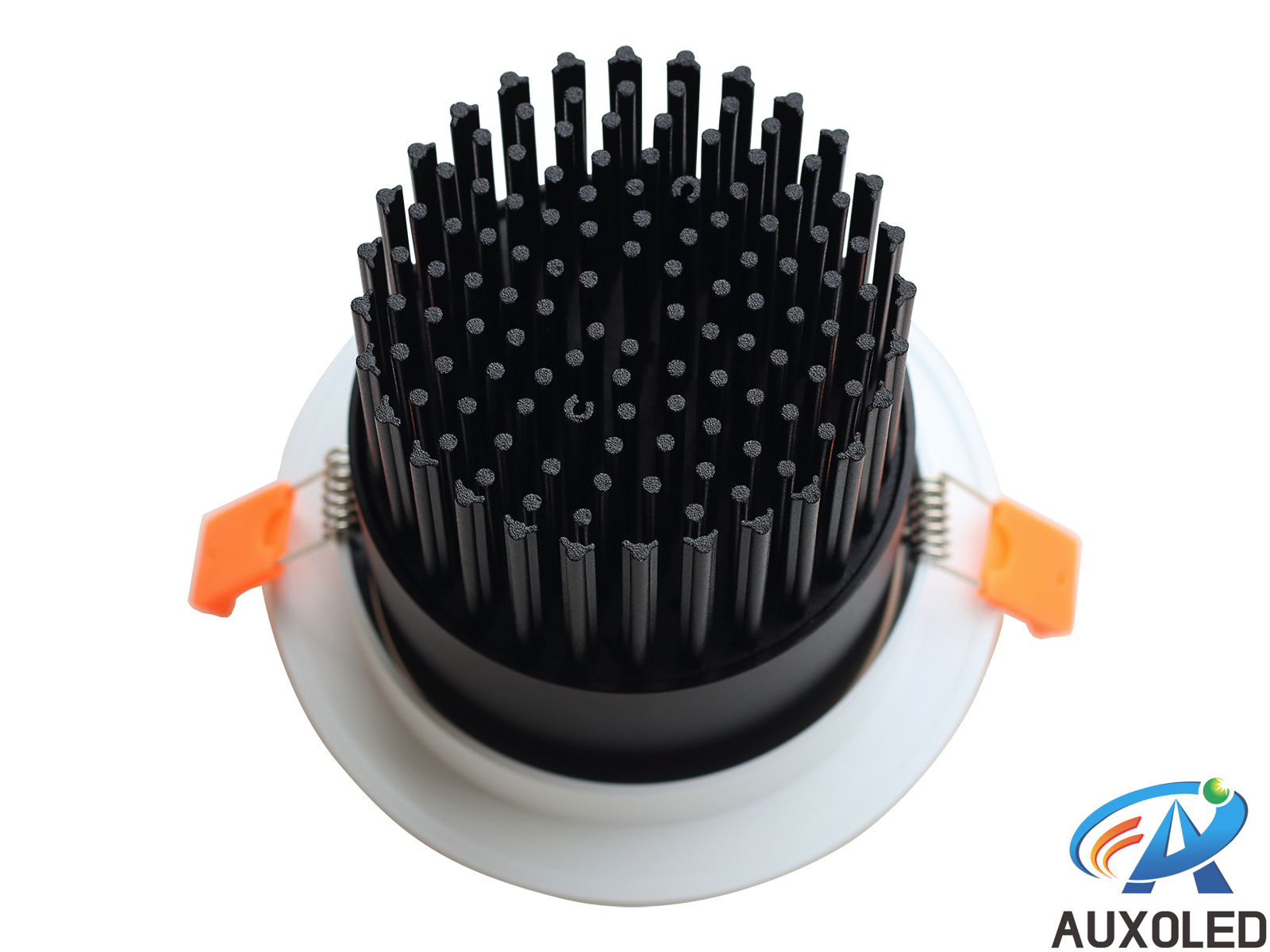

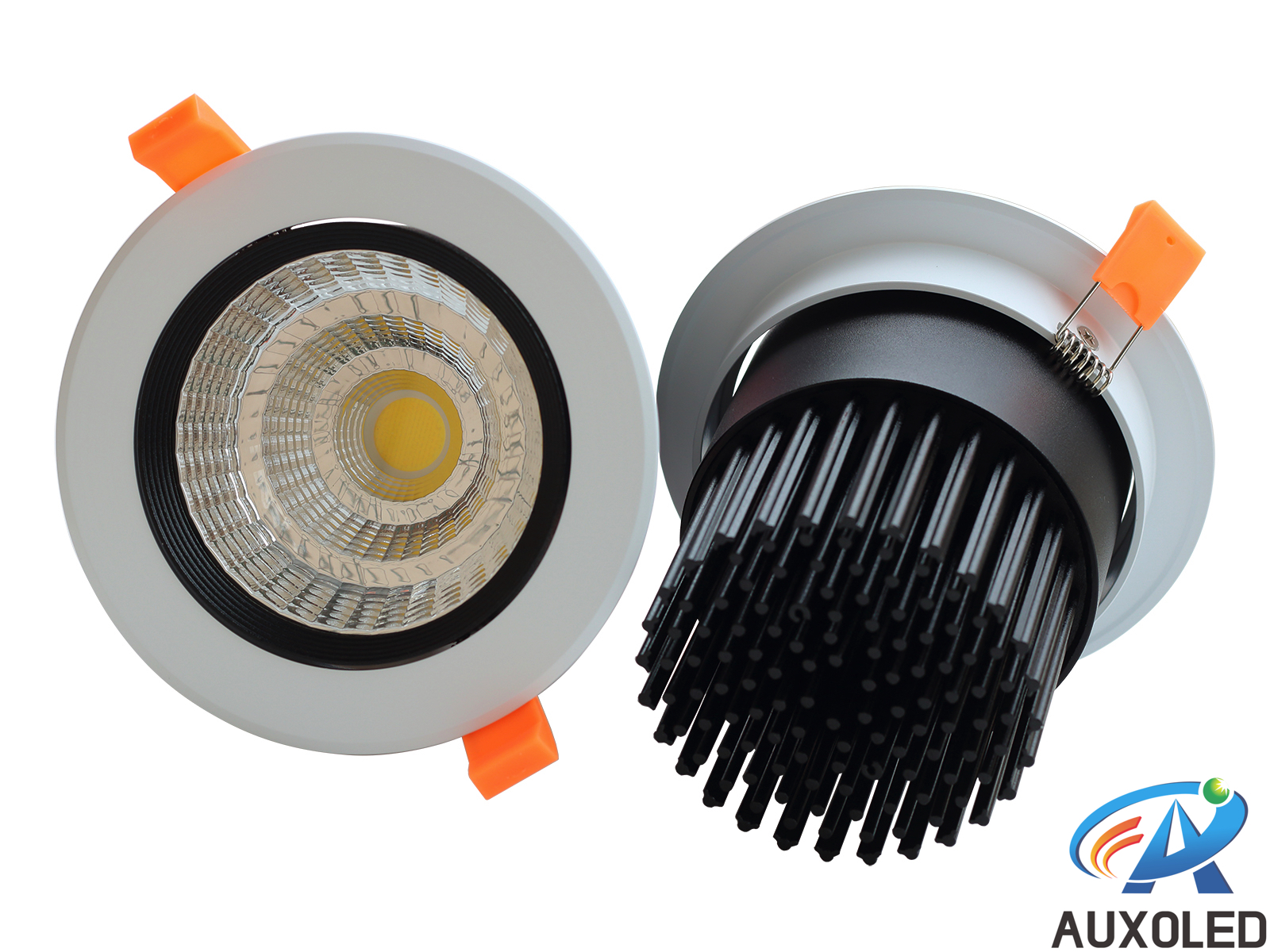

40W LED Ceiling Light
- Item No：CL-COB25RCB-D162
- views：221
Parameter Feature Detail Application
Item Name: 30-40W Cold Forging COB LED Ceiling Light
Item No.: CL-COB25RCB-D162
Brand Name: AUXOLED
● Specific Parameters:
Overall Dimensions: Φ162*H112 (mm)
Cutout Dimensions: 140 (mm)
Light Source: 30-40W COB LED
Chip Brand: Cree, Citizen, Sharp, Lustrous, Luminus, Bridgelux
Beam Angle: 15°/23°/24°/38°/60°
CRI: ＞80
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 30-40W
Driver Type: External Constant Current LED Driver
PF: ＞0.90
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White)
Luminous Flux: 90-100LM/W
Main Material: Aluminum + Glass
Heat Sink Solution: Cold Forging 1070 Aluminum Radiator
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Use A1070 Aluminum Radiator, Thermal Conductivity Reaches 226W/(m·K), Heat Sink Area Expanded Efficiently and Air Convection Enhanced Greatly, Heat Sink Ability is Much More Stable, it's Twice more than Die-casting Aluminum Radiator and 1/3 more than Lathe Aluminum Radiator, but 1/3 Less Weight than Die-casting One
Curved Design for Inner Ring, Stylish and Unique, Beautiful and Fashionable; Well Finished Surface, No Harmful Pb and Hg
High Precision and Aspheric Surface Optical Designed Reflector Cup, High Light Efficiency, the Light is Uniform and Tender, No Astigmatism, No Black Dot, No Shadow, Anti-glare
External High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power Range: 30-40W
Anodized Lamp Housing, Corrosion Resistance and No Color Fading
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Dinning Room, Kitchen, Cabinet, Corridor, Supermarket, Cloth Store, Rest Room, Office, Museum, Hospital, Living Room, Factory, KTV, Hotel, Airport, Bank, Cafe, Commercial Centre, Villa, etc.
● Certificates:
CE, RoHS, C-tick, SAA
● Warranty:
Item No.: CL-COB25RCB-D162
Brand Name: AUXOLED
● Specific Parameters:
Overall Dimensions: Φ162*H112 (mm)
Cutout Dimensions: 140 (mm)
Light Source: 30-40W COB LED
Chip Brand: Cree, Citizen, Sharp, Lustrous, Luminus, Bridgelux
Beam Angle: 15°/23°/24°/38°/60°
CRI: ＞80
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 30-40W
Driver Type: External Constant Current LED Driver
PF: ＞0.90
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White)
Luminous Flux: 90-100LM/W
Main Material: Aluminum + Glass
Heat Sink Solution: Cold Forging 1070 Aluminum Radiator
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | CCT | Beam Angle | CRI | Luminous Flux |
| AC85-265V | 2500-6500K |
15°/23°/24°/38°/60° |
＞80 |
90-100LM / W |
| Item No. | Product Dimensions |
Cutout Dimensions |
Power Consumption | Light Source |
| CL-COB07RCB-D90 | Φ90*H66 (mm) / 2.5inch |
Φ72 (mm) |
5-8W | 5-8W COB LED |
|
CL-COB12RCB-D109 |
Φ109*H80 (mm) / 2.5inch |
Φ92 (mm) | 10-15W | 10-15W COB LED |
| CL-COB15RCB-D138 |
Φ138*H112 (mm) / 3.5inch |
Φ117 (mm) | 20-25W | 20-25W COB LED |
|
CL-COB25RCB-D162 |
Φ162*H112 (mm) / 5inch |
Φ140 (mm) | 30-40W | 30-40W COB LED |
● Advantages:
Optional Light Source Brand: Sharp, Citizen, Cree, Lustrous, Bridgelux, Luminus, Low Light Decay, Excellent Quality, Super Long Working Lifespan
Use A1070 Aluminum Radiator, Thermal Conductivity Reaches 226W/(m·K), Heat Sink Area Expanded Efficiently and Air Convection Enhanced Greatly, Heat Sink Ability is Much More Stable, it's Twice more than Die-casting Aluminum Radiator and 1/3 more than Lathe Aluminum Radiator, but 1/3 Less Weight than Die-casting One
Curved Design for Inner Ring, Stylish and Unique, Beautiful and Fashionable; Well Finished Surface, No Harmful Pb and Hg
High Precision and Aspheric Surface Optical Designed Reflector Cup, High Light Efficiency, the Light is Uniform and Tender, No Astigmatism, No Black Dot, No Shadow, Anti-glare
External High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power Range: 30-40W
Anodized Lamp Housing, Corrosion Resistance and No Color Fading
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Dinning Room, Kitchen, Cabinet, Corridor, Supermarket, Cloth Store, Rest Room, Office, Museum, Hospital, Living Room, Factory, KTV, Hotel, Airport, Bank, Cafe, Commercial Centre, Villa, etc.
● Certificates:
CE, RoHS, C-tick, SAA
● Warranty:
2 Years
