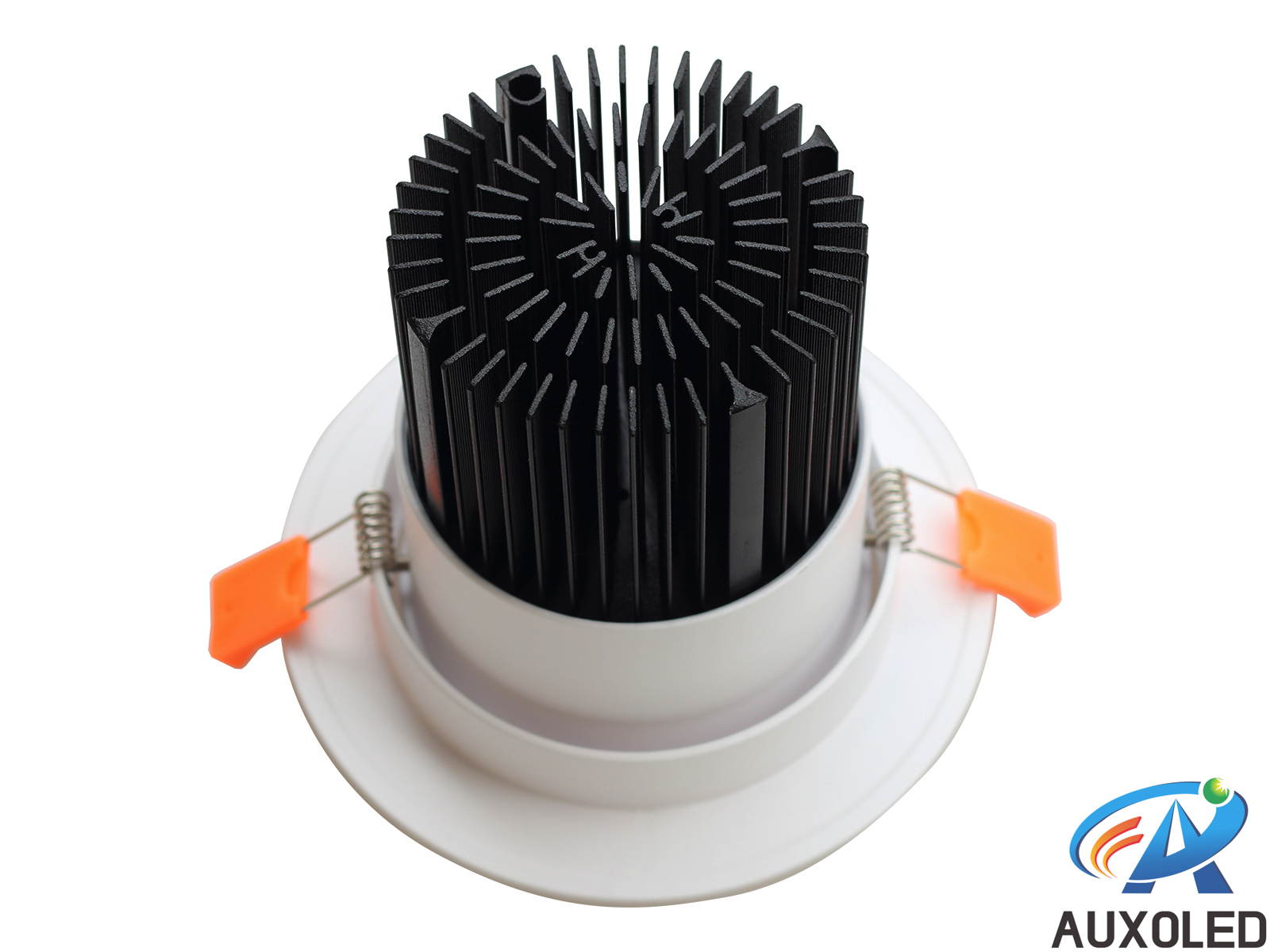

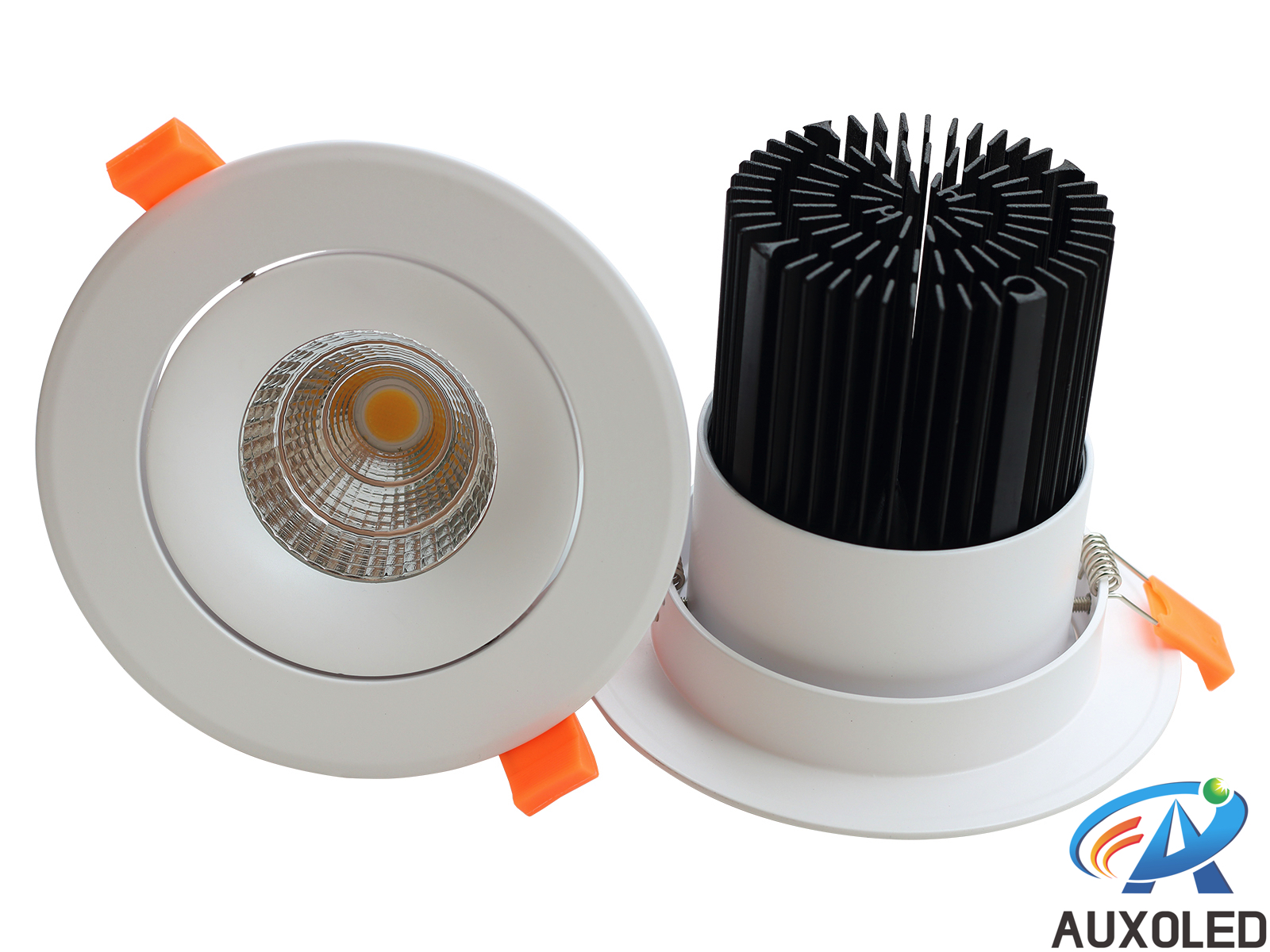

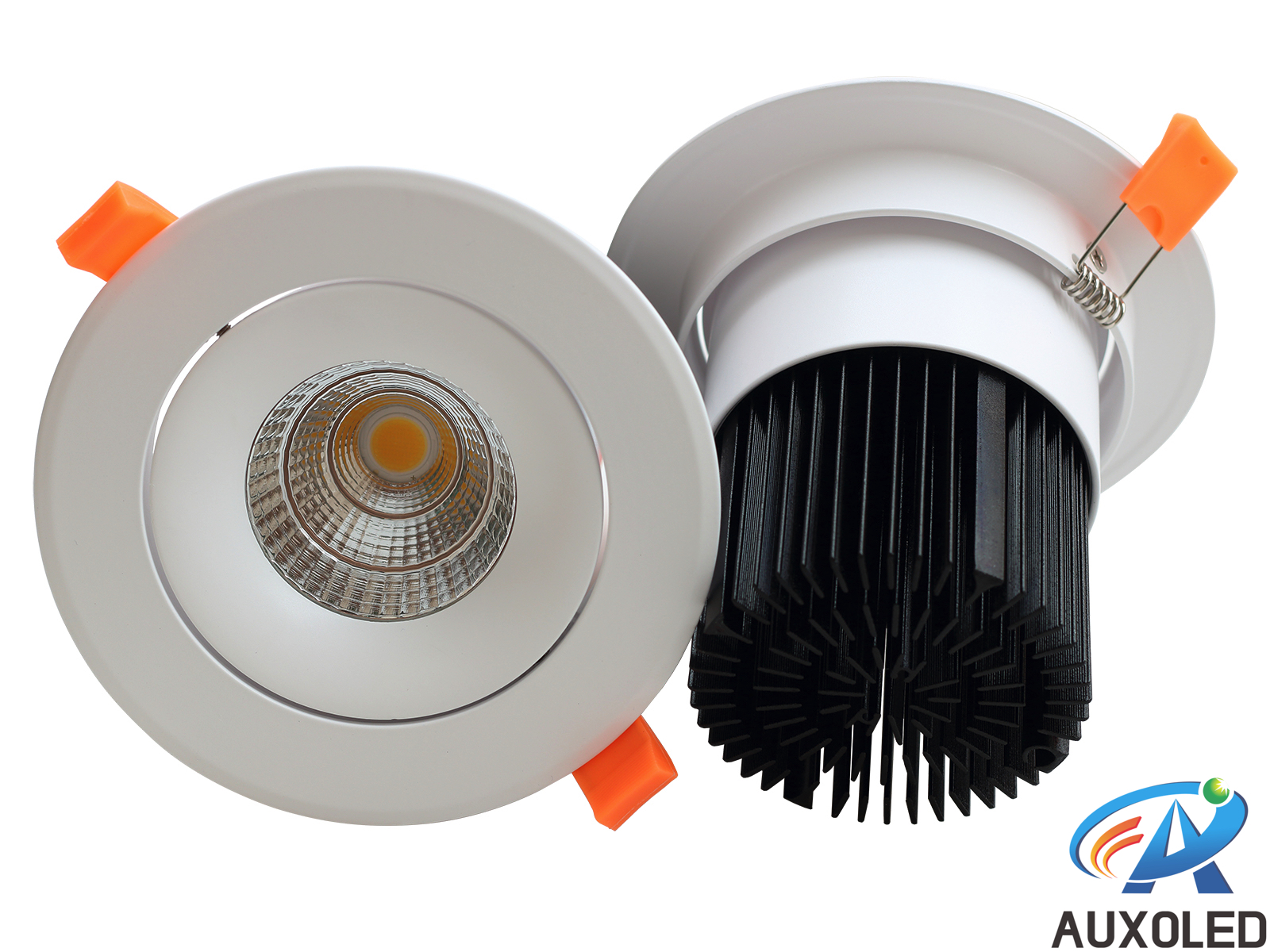

30W LED Ceiling Light
- Item No：CL-COB30RCA-D142
- views：176
Parameter Feature Detail Application
Item Name: 25-30W Cold Forging COB LED Ceiling Light
Item No.: CL-COB30RCA-D142
Brand Name: AUXOLED
● Specific Parameters:
Overall Dimensions: Φ142*H101 (mm)
Cutout Dimensions: 125 (mm)
Light Source: 25-30W COB LED
Chip Brand: Cree, Citizen, Sharp, Lustrous, Luminus, Bridgelux
Beam Angle: 15°/24°/30°/36°/38°/60°
CRI: ＞80
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 25-30W
Driver Type: External Constant Current LED Driver
PF: ＞0.90
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White)
Luminous Flux: 90-100LM/W
Main Material: Aluminum + Glass
Heat Sink Solution: Cold Forging 1070 Aluminum Radiator
Working Temperature: -20℃~45℃Main Material: Aluminum + Glass
Heat Sink Solution: Cold Forging 1070 Aluminum Radiator
Working Lifespan: 50,000 Hrs
Curved Design for Inner Ring, Stylish and Unique, Beautiful and Fashionable; Well Finished Surface, No Harmful Pb and Hg
High Precision and Aspheric Surface Optical Designed Reflector Cup, High Light Efficiency, the Light is Uniform and Tender, No Astigmatism, No Black Dot, No Shadow, Anti-glare
External High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power Range: 25-30W
Anodized Lamp Housing, Corrosion Resistance and No Color Fading
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Dinning Room, Kitchen, Cabinet, Corridor, Supermarket, Cloth Store, Rest Room, Office, Museum, Hospital, Living Room, Factory, KTV, Hotel, Airport, Bank, Cafe, Commercial Centre, Villa, etc.
● Certificates:
CE, RoHS, C-tick, SAA
● Warranty:
Item No.: CL-COB30RCA-D142
Brand Name: AUXOLED
● Specific Parameters:
Overall Dimensions: Φ142*H101 (mm)
Cutout Dimensions: 125 (mm)
Light Source: 25-30W COB LED
Chip Brand: Cree, Citizen, Sharp, Lustrous, Luminus, Bridgelux
Beam Angle: 15°/24°/30°/36°/38°/60°
CRI: ＞80
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 25-30W
Driver Type: External Constant Current LED Driver
PF: ＞0.90
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White)
Luminous Flux: 90-100LM/W
Main Material: Aluminum + Glass
Heat Sink Solution: Cold Forging 1070 Aluminum Radiator
Working Temperature: -20℃~45℃Main Material: Aluminum + Glass
Heat Sink Solution: Cold Forging 1070 Aluminum Radiator
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | CCT | Beam Angle | CRI | Luminous Flux |
| AC85-265V | 2500-6500K |
12°/24°/30°/36°/38°/40° |
＞80 |
90-100LM / W |
| Item No. | Product Dimensions |
Cutout Dimensions |
Power Consumption | Light Source |
| CL-COB07RCA-D95 | Φ95*H59 (mm) / 2.5inch |
Φ70 (mm) |
5-7W | 5-7W COB LED |
|
CL-COB12RCA-D95 |
Φ95*H79 (mm) / 2.5inch |
Φ70 (mm) | 8-12W | 8-12W COB LED |
| CL-COB12RCA-D111 |
Φ111*H88 (mm) / 3.5inch |
Φ80 (mm) | 8-12W | 8-12W COB LED |
|
CL-COB15RCA-D119 |
Φ119*H103 (mm) / 3.5inch |
Φ90 (mm) | 12-15W | 12-15W COB LED |
|
CL-COB30RCA-D142 |
Φ142*H118 (mm) / 5inch |
Φ110 (mm) | 25-30W | 25-30W COB LED |
|
CL-COB40RCA-D180 |
Φ180*H128.5 (mm) / 5inch |
Φ145 (mm) | 35-40W | 35-40W COB LED |
● Advantages:
Optional Light Source Brand: Sharp, Citizen, Cree, Lustrous, Bridgelux, Luminus, Low Light Decay, Excellent Quality, Super Long Working Lifespan
Use A1070 Aluminum Radiator, Thermal Conductivity Reaches 226W/(m·K), Heat Sink Area Expanded Efficiently and Air Convection Enhanced Greatly, Heat Sink Ability is Much More Stable, it's Twice more than Die-casting Aluminum Radiator and 1/3 more than Lathe Aluminum Radiator, but 1/3 Less Weight than Die-casting OneCurved Design for Inner Ring, Stylish and Unique, Beautiful and Fashionable; Well Finished Surface, No Harmful Pb and Hg
High Precision and Aspheric Surface Optical Designed Reflector Cup, High Light Efficiency, the Light is Uniform and Tender, No Astigmatism, No Black Dot, No Shadow, Anti-glare
External High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power Range: 25-30W
Anodized Lamp Housing, Corrosion Resistance and No Color Fading
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Dinning Room, Kitchen, Cabinet, Corridor, Supermarket, Cloth Store, Rest Room, Office, Museum, Hospital, Living Room, Factory, KTV, Hotel, Airport, Bank, Cafe, Commercial Centre, Villa, etc.
● Certificates:
CE, RoHS, C-tick, SAA
● Warranty:
2 Years
