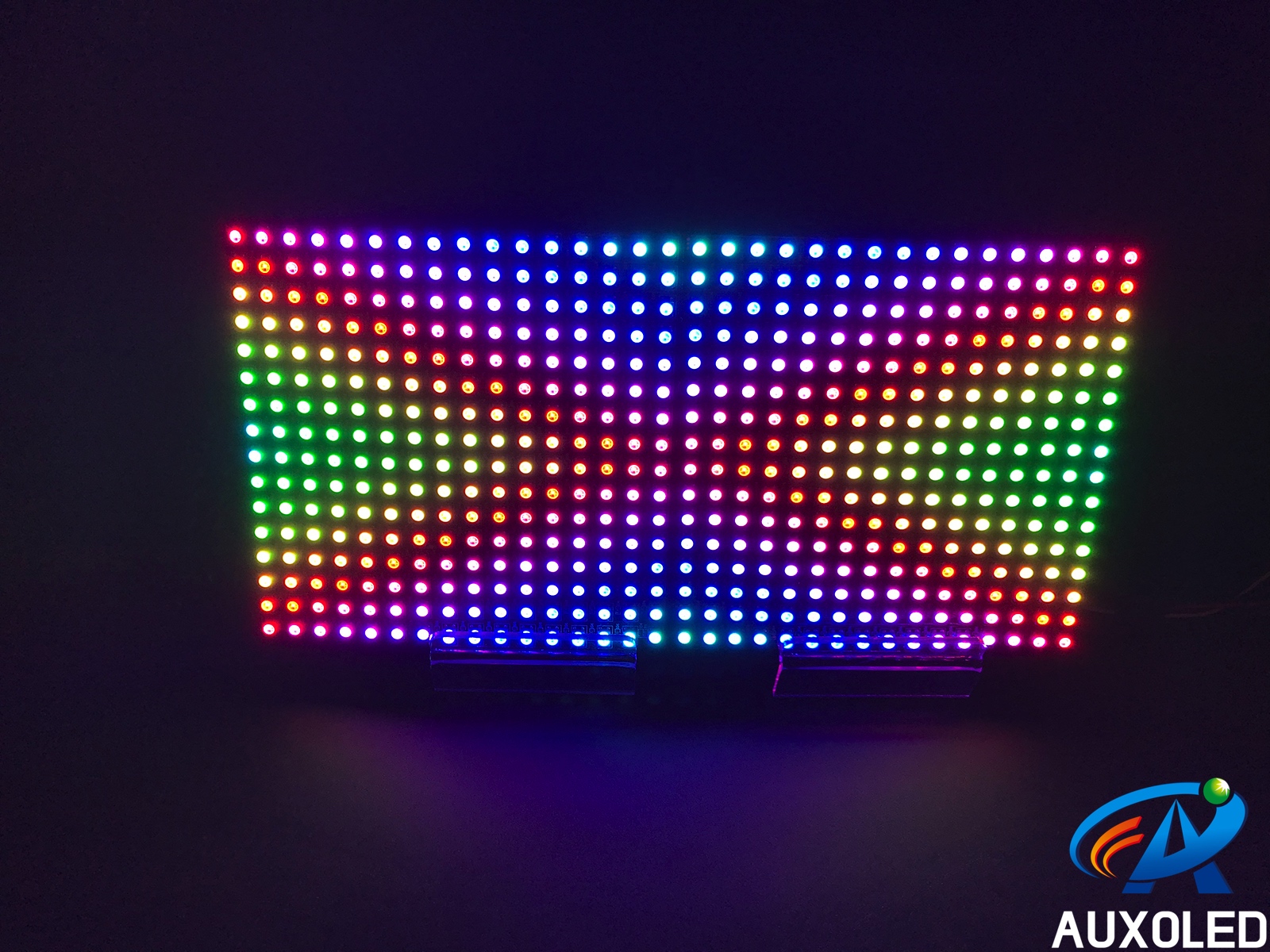

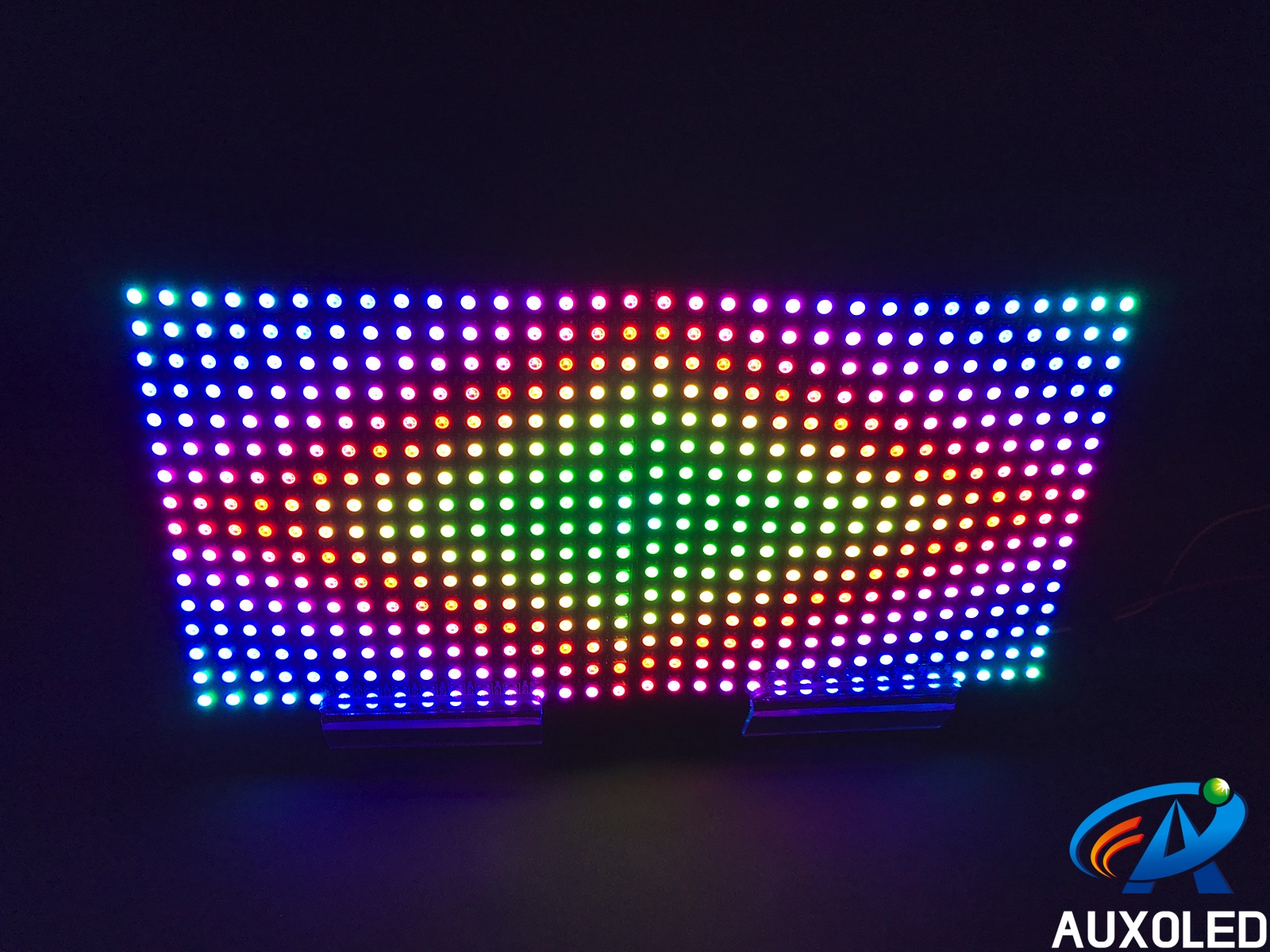

RGB Pixel LED Panel
- Item No：FPC80-320-256LED5050RGB-1P-5V
- views：424
Parameter Feature Detail Application
Item Name: DC5V RGB Flexible Pixel LED Panel Display Strip Light
Item No.: FPC80-320-256LED5050RGB-1P-5V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W80*L320*T1.80 (mm)
Light Source: 256PCS RGB5050 LEDs
Chip Brand: Epistar
Beam Angle: 120°
Connection Method: Wires + SM Terminals
Input Voltage: DC5V
Power Consumption: 77W
Beaming Color: RGB
IC Model: WS2812 / SK6812
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Tailored FPC Pixel Panel Display for Clothing Field, Small Volume, Light Weight, Arbitrary Bending, Portable
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Based on IC WS2812 / SK6812, Compatible with our Advanced Intelligent Controllers, the Gap between each two Pixel Dots is 1CM, can Meet the Basic Requirements of Displaying Complete Characters, Animation, Video, etc.
DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC80-320-256LED5050RGB-1P-5V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W80*L320*T1.80 (mm)
Light Source: 256PCS RGB5050 LEDs
Chip Brand: Epistar
Beam Angle: 120°
Connection Method: Wires + SM Terminals
Input Voltage: DC5V
Power Consumption: 77W
Beaming Color: RGB
IC Model: WS2812 / SK6812
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Beaming Color | Beam Angle | IC Model | IP Class |
| DC5V | RGB |
120° |
WS2812 / SK6812 | IP20 |
| Item No. | Product Dimensions | Power Consumption | Light Source | Remarks |
| FPC100-100-100LED5050RGB-3P-5V | W100*100*T1.8 (mm) | 30W | 100PCS RGB5050 | 1/100/Piece |
|
FPC80-80-64LED5050RGB-3P-5V |
W80*80*T1.8 (mm) |
20W | 64PCS RGB5050 | Whole Piece |
|
FPC80-320-256LED5050RGB-3P-5V |
W80*320*T1.8 (mm) |
77W | 256PCS RGB5050 | Whole Piece |
|
FPC160-160-256LED5050RGB-3P-5V |
W160*160*T1.8 (mm) |
77W | 256PCS RGB5050 | Whole Piece |
|
FPC1000-1000-3600LED5050RGB-3P-5V |
W1000*1000*T1.8 (mm) |
1080W | 3600PCS RGB5050 | Whole Piece |
● Advantages:
Use Imported Epistar Chip LEDs, Super Long Working LifespanTailored FPC Pixel Panel Display for Clothing Field, Small Volume, Light Weight, Arbitrary Bending, Portable
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Based on IC WS2812 / SK6812, Compatible with our Advanced Intelligent Controllers, the Gap between each two Pixel Dots is 1CM, can Meet the Basic Requirements of Displaying Complete Characters, Animation, Video, etc.
DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
