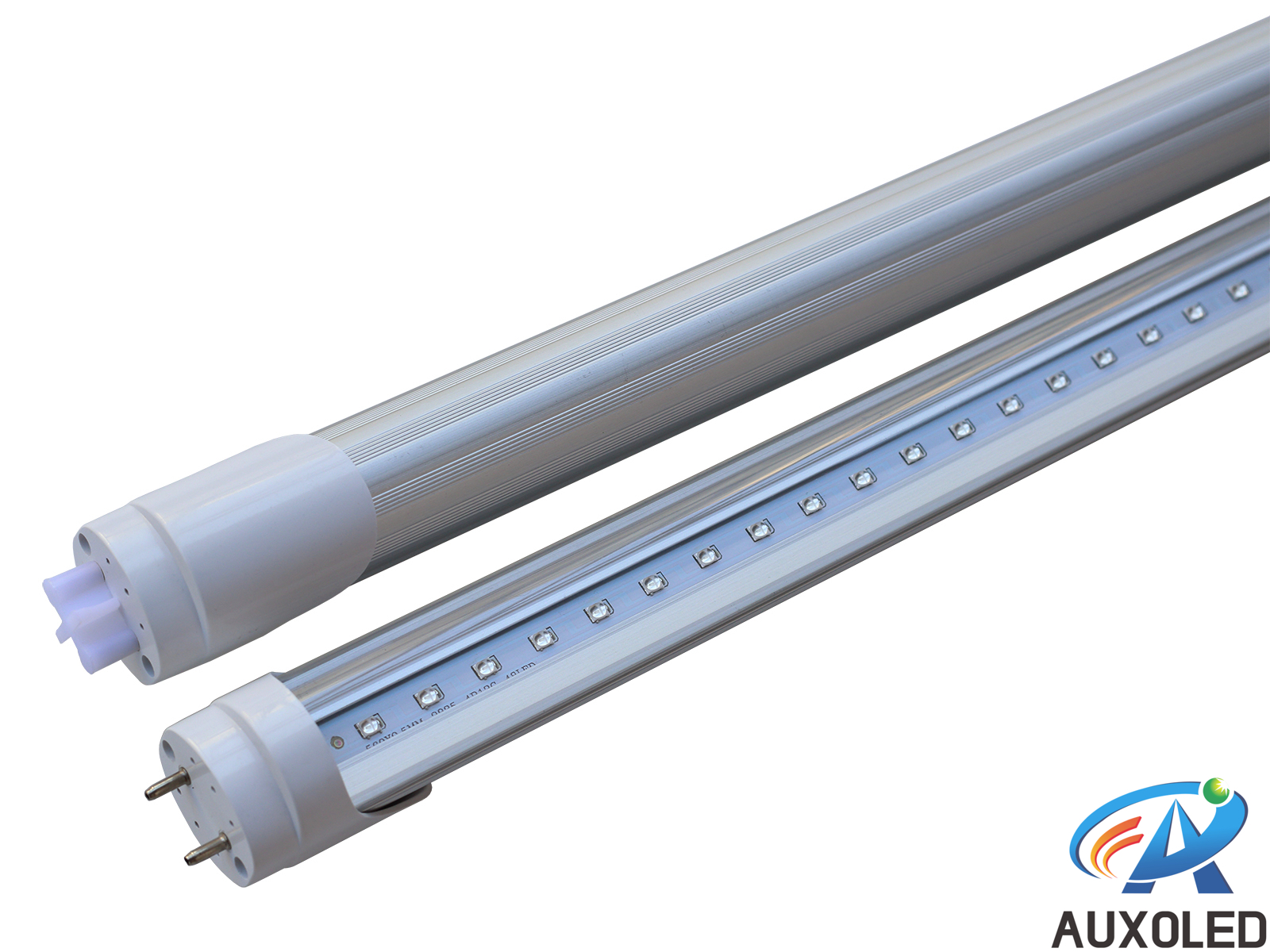

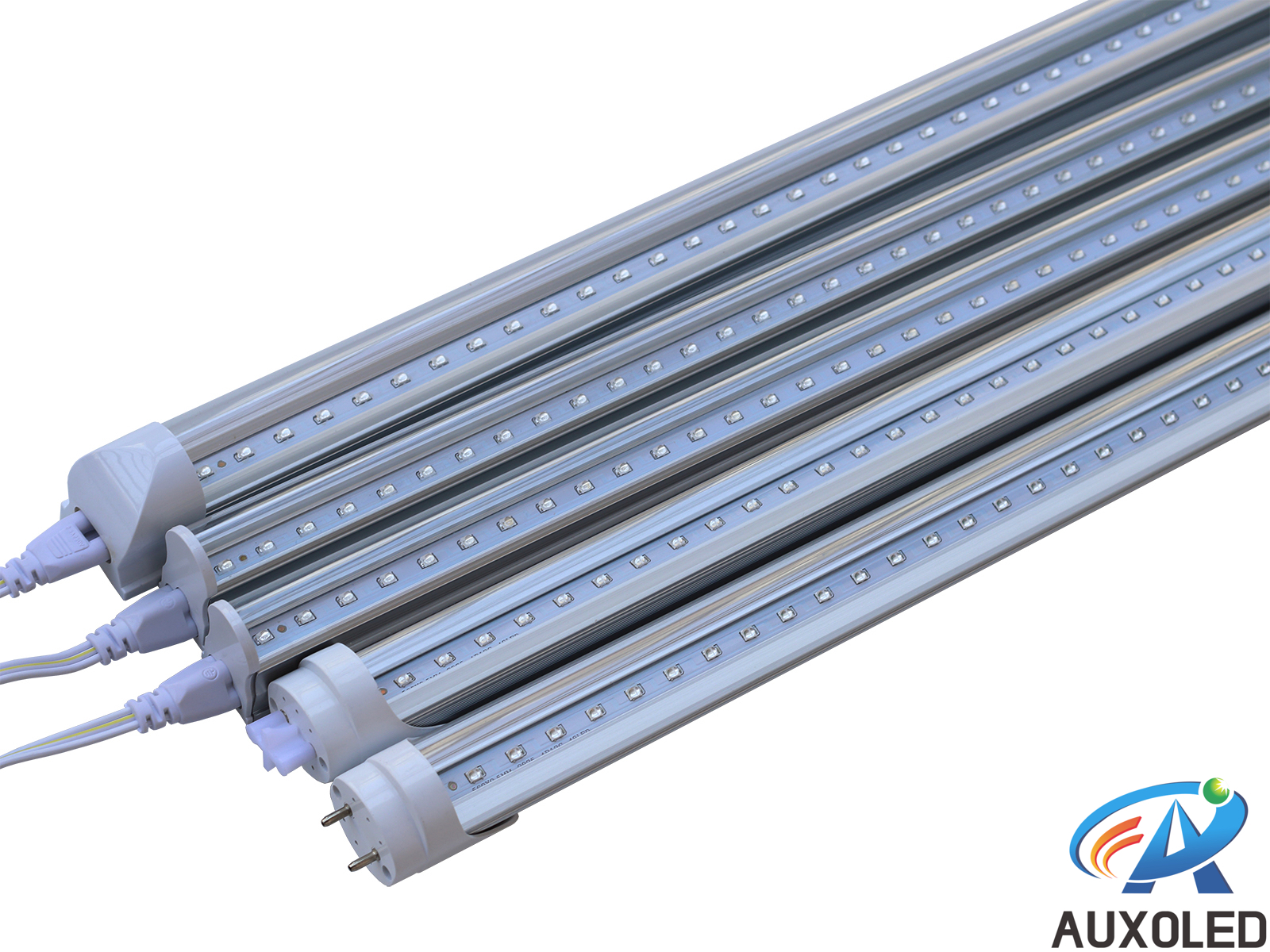

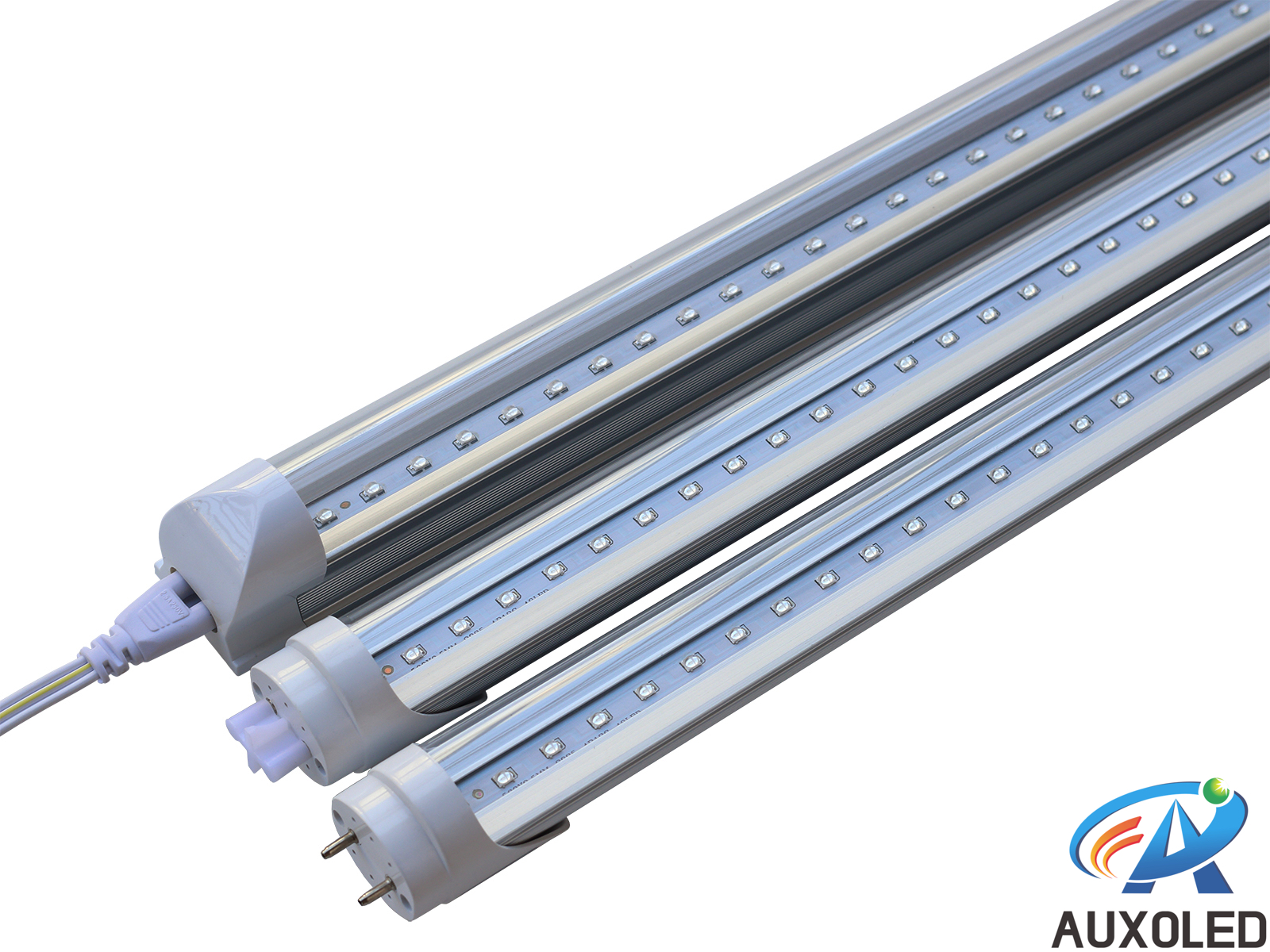

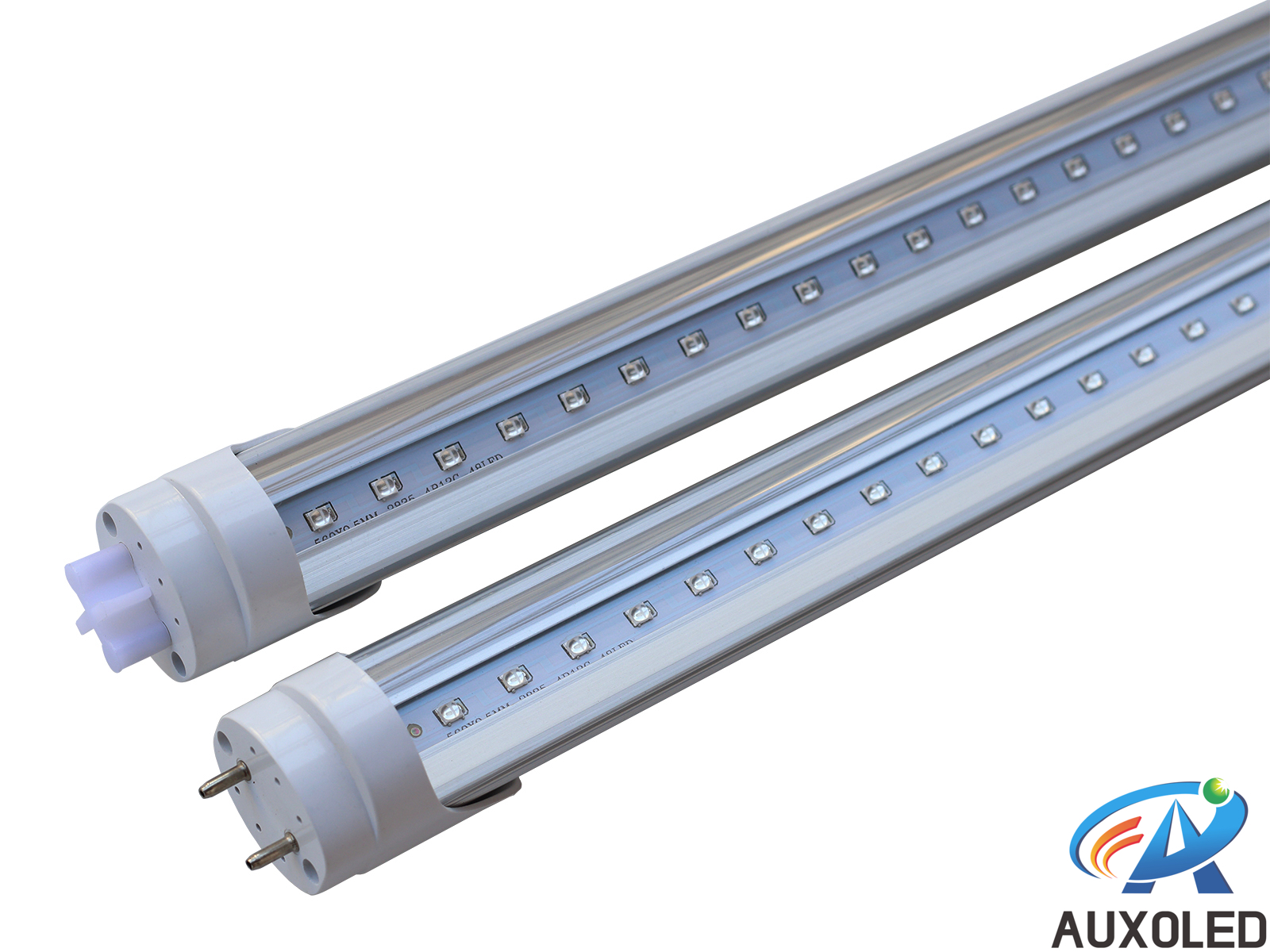

UV T8 LED Tube Lamp
- Item No：AL-TL18B-T8UV-1200
- views：546
Parameter Feature Detail Application
Item Name: 1200MM / 4FT 18W T8 Isolated Driver UV LED Tube Light
Item No.: AL-TL18B-T8UV-1200
Brand Name: AUXOLED
● Specific Parameters:
Overall Dimensions: L1200*Φ26 (mm)
Light Source: 96PCS SMD2835 UV LEDs
Chip Brand: Epiled
Beam Angle: 120°
CRI: ＞70
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 18W
Driver Type: Built-in Isolated Driver Constant Current LED Driver
PF: ＞0.90
Wave Length: 360-410nm
Luminous Flux: 19200-28800MCD
Main Material: Aluminum+PC
Lamp Cover Color: Clear
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
No Need Starter and Ballast, Can Light Up Immediately, Safe and Stable
Integrated Lamp Bracket or Isolated LED Tube, Easy Installation and Replacement
Clear PC Lamp Cover, Light Transmittance is Even without Dark Area, Large Lighting Beam Angle
Built-in High PF Isolated Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power: 5W, 10W, 18W
No Flicker, Environmental Friendly and Energy Saving
● Applications:
Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Manicure, Sterilization and Disinfection, Medical Treatment, Detecting Bloodstain, Decoration and Illumination, Aerospace, Water Treatment, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
Item No.: AL-TL18B-T8UV-1200
Brand Name: AUXOLED
● Specific Parameters:
Overall Dimensions: L1200*Φ26 (mm)
Light Source: 96PCS SMD2835 UV LEDs
Chip Brand: Epiled
Beam Angle: 120°
CRI: ＞70
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 18W
Driver Type: Built-in Isolated Driver Constant Current LED Driver
PF: ＞0.90
Wave Length: 360-410nm
Luminous Flux: 19200-28800MCD
Main Material: Aluminum+PC
Lamp Cover Color: Clear
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Wave Length | Beam Angle | CRI | Base |
| AC85-265V | 360-410nm |
120° |
＞70 |
G13 |
| Item No. | Product Dimensions | Power Consumption | Light Source | Light Source |
| AL-TL05B-T8UV-300 | L300*Φ26 (mm) | 5W | 24PCS SMD2835 | 4800-7200MCD |
|
AL-TL10B-T8UV-600 |
L600*Φ26 (mm) |
10W | 48PCS SMD2835 | 9600-14400MCD |
|
AL-TL18B-T8UV-1200 |
L1200*Φ26 (mm) |
18W | 96PCS SMD2835 | 19200-28800MCD |
● Advantages:
Use Imported Epiled Chip LEDs, Excellent Quality, Super Long Working LifespanNo Need Starter and Ballast, Can Light Up Immediately, Safe and Stable
Integrated Lamp Bracket or Isolated LED Tube, Easy Installation and Replacement
Clear PC Lamp Cover, Light Transmittance is Even without Dark Area, Large Lighting Beam Angle
Built-in High PF Isolated Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power: 5W, 10W, 18W
No Flicker, Environmental Friendly and Energy Saving
● Applications:
Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Manicure, Sterilization and Disinfection, Medical Treatment, Detecting Bloodstain, Decoration and Illumination, Aerospace, Water Treatment, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
2 Years
