UV LED Medical Light
- Item No：FPC8-450-27LED3825UV-1P-4.5V
- views：254
Parameter Feature Detail Application

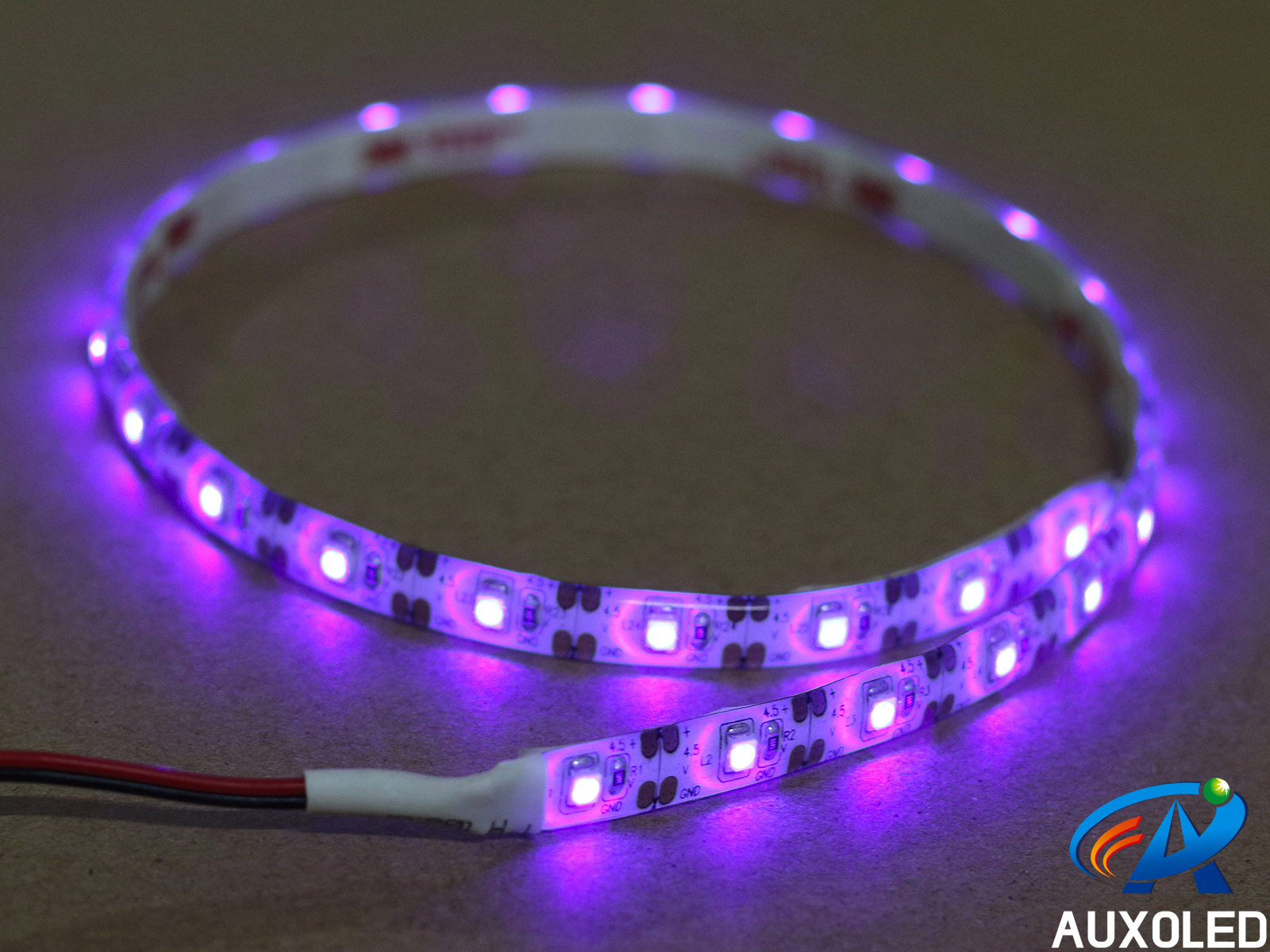

Item Name: UV DC4.5V 2.7W IP65 Flexible LED Strip
Item No.: FPC8-450-27LED3825UV-1P-4.5V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W8*L450*T2.6 (mm)
Light Source: 27PCS UV SMD3528 LED
Chip Brand: Epiled
Beam Angle: 120°
Input Voltage: DC4.5V
Power Consumption: 2.43W
UV LED Wave Length: 395-400nm
Luminous Flux: 19LM
PCB Material: FPC
IP Class: IP65
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Can be Used for Both Illumination and Food Security
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Use High Class UV Crystal Glue for Sealing the Strip, IP65 Waterproof, the Glue will not Turn Yellow for Long-term Use
With VHB4920 High Quality Double-side 3M Tape on its Back, Fashionable and Beautiful, Easy Installation
DC4.5V Low Input Voltage, Safe and No Hidden Dangers; Can be Operated by Batteries
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC8-450-27LED3825UV-1P-4.5V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W8*L450*T2.6 (mm)
Light Source: 27PCS UV SMD3528 LED
Chip Brand: Epiled
Beam Angle: 120°
Input Voltage: DC4.5V
Power Consumption: 2.43W
UV LED Wave Length: 395-400nm
Luminous Flux: 19LM
PCB Material: FPC
IP Class: IP65
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Wave Length | Beam Angle | PCB Thickness | IP Class |
| DC12V / DC5V | 380-410nm |
120° |
0.22 (mm) | IP20 / IP65 |
| Item No. | Product Dimensions | Power Consumption | Light Source | Luminous Flux |
| FPC8-320-27LED3528UV-1P-12V | W8*320*T2.6 (mm) | 2.16W | 27PCS SMD3528 | 19LM |
|
FPC8-450-27LED3528UV-1P-4.5V |
W8*450*T2.6 (mm) |
2.43W | 27PCS SMD3528 | 19LM |
|
FPC8-684-60LED3528UVW-1P-12V |
W8*684*T2.6 (mm) |
4.8W | 60PCS SMD3528 | 42LM |
|
FPC8-684-90LED3528UVW-1P-12V |
W8*684*T2.6 (mm) |
7.2W | 90PCS SMD3528 | 63LM |
|
FPC8-500-30LED3528UV-1P-12V |
W8*500*T2.6 (mm) |
2.4W | 30PCS SMD3528 | 21LM |
|
FPC8-500-30LED5050UV-1P-12V |
W8*500*T2.3 (mm) |
7.2W | 30PCS SMD5050 | 36LM |
● Advantages:
Use Imported Epiled Chip LED, Super Long Working Lifespan
Can be Used for Both Illumination and Food Security
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Use High Class UV Crystal Glue for Sealing the Strip, IP65 Waterproof, the Glue will not Turn Yellow for Long-term Use
With VHB4920 High Quality Double-side 3M Tape on its Back, Fashionable and Beautiful, Easy Installation
DC4.5V Low Input Voltage, Safe and No Hidden Dangers; Can be Operated by Batteries
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
