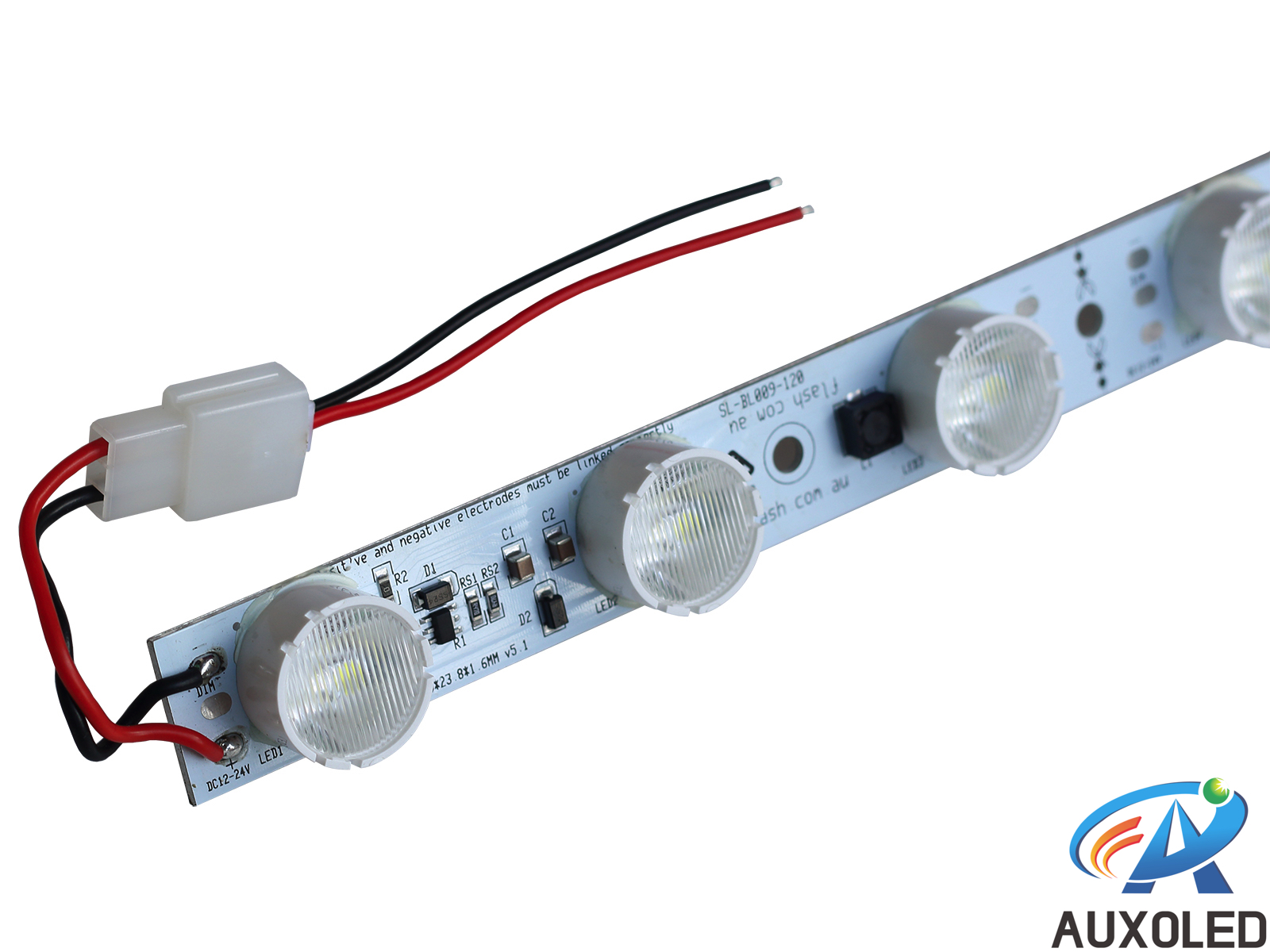

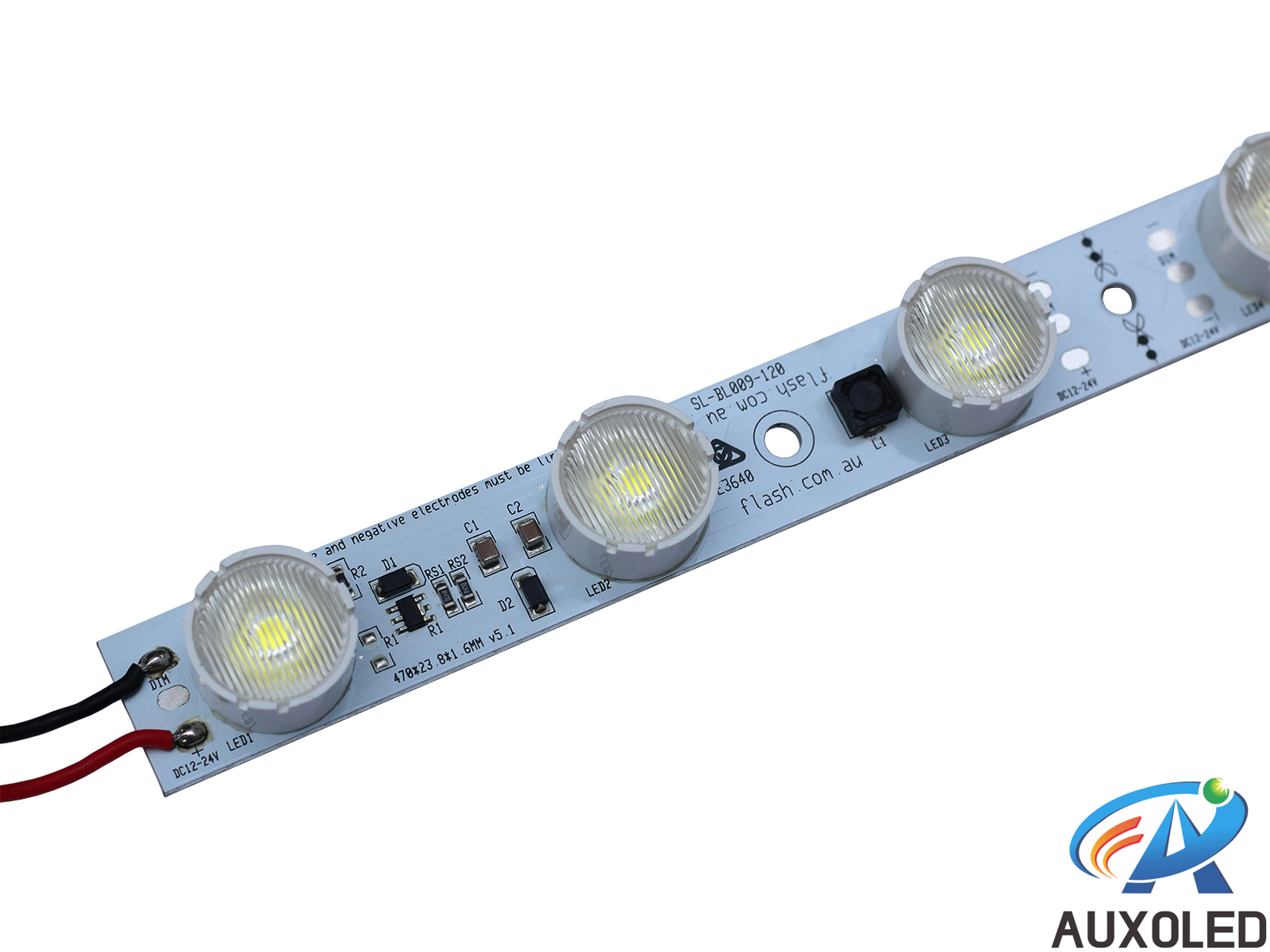

CC 14.4W LED Light Bar
- Item No：LVPCB23-470-9LED3535-1P-12V
- views：141
Parameter Feature Detail Application
Item Name: DC12-24V 14.4W SMD3535 Aluminum Base LED Strip Light Bar
Item No.: LVPCB23-470-9LED3535-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W23*L470*H14 (mm)
Light Source: 9PCS SMD3535 LEDs
Chip Brand: Cree
Beam Angle: 10°, 15°, 30°
CRI: ＞80
Input Voltage: DC12-24V
Power Consumption: 14.4W
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White), 7000-9000K(Cold White)
Luminous Flux: 90-100LM / W
PCB Material: 1.6MM Thick Aluminum Base
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
1.6MM Thick Aluminum PCB Base, High Heat Transmission Coefficient, Great Heat Sink Ability
Multi Beam Angle Lens Optional, Uniform Light Ray, Anti-glare
Nice Choice for Backlight of Advertising LED Light Box
DC12-24V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Warehouse, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: LVPCB23-470-9LED3535-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W23*L470*H14 (mm)
Light Source: 9PCS SMD3535 LEDs
Chip Brand: Cree
Beam Angle: 10°, 15°, 30°
CRI: ＞80
Input Voltage: DC12-24V
Power Consumption: 14.4W
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White), 7000-9000K(Cold White)
Luminous Flux: 90-100LM / W
PCB Material: 1.6MM Thick Aluminum Base
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Emitting Color | Beam Angle | IC Type | IP Class |
| DC12-24V | WW/NW/PW/CW |
10°/15°/30° |
External | IP20 |
| Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux |
| LVPCB23-470-9LED3535-1P-12V | W23*L470*H14 (mm) | 14.4W | 9PCS SMD3535 | 90-100LM / W |
● Advantages:
Use Imported Cree LED Chips, Super Long Working Lifespan1.6MM Thick Aluminum PCB Base, High Heat Transmission Coefficient, Great Heat Sink Ability
Multi Beam Angle Lens Optional, Uniform Light Ray, Anti-glare
Nice Choice for Backlight of Advertising LED Light Box
DC12-24V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Warehouse, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
