20W LED Track Light
- Item No：AL-TKL20A-RFC
- views：142
Parameter Feature Detail Application
Item Name: 10-20W PC Reflector Cold Forging Aluminum COB LED Track Light
Item No.: AL-TKL20A-RFC
Brand Name: AUXOLED
● Specific Parameters:
Lamp Body Dimensions: Φ65*H95 (mm)
Light Source: 10-20W COB LED
Chip Brand: Cree
Beam Angle: 12°/24°/36°
CRI: ＞70
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 10-20W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Color Temperature: 3000K (Warm White), 4000K (Natural White), 5000K (Pure White)
Luminous Flux: 100-110LM/W
Adjustable Angle: Horizontal 360°; Vertical 90°
Main Material: Cold Forging Aluminum + PC
Finished Color: White / Black
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs

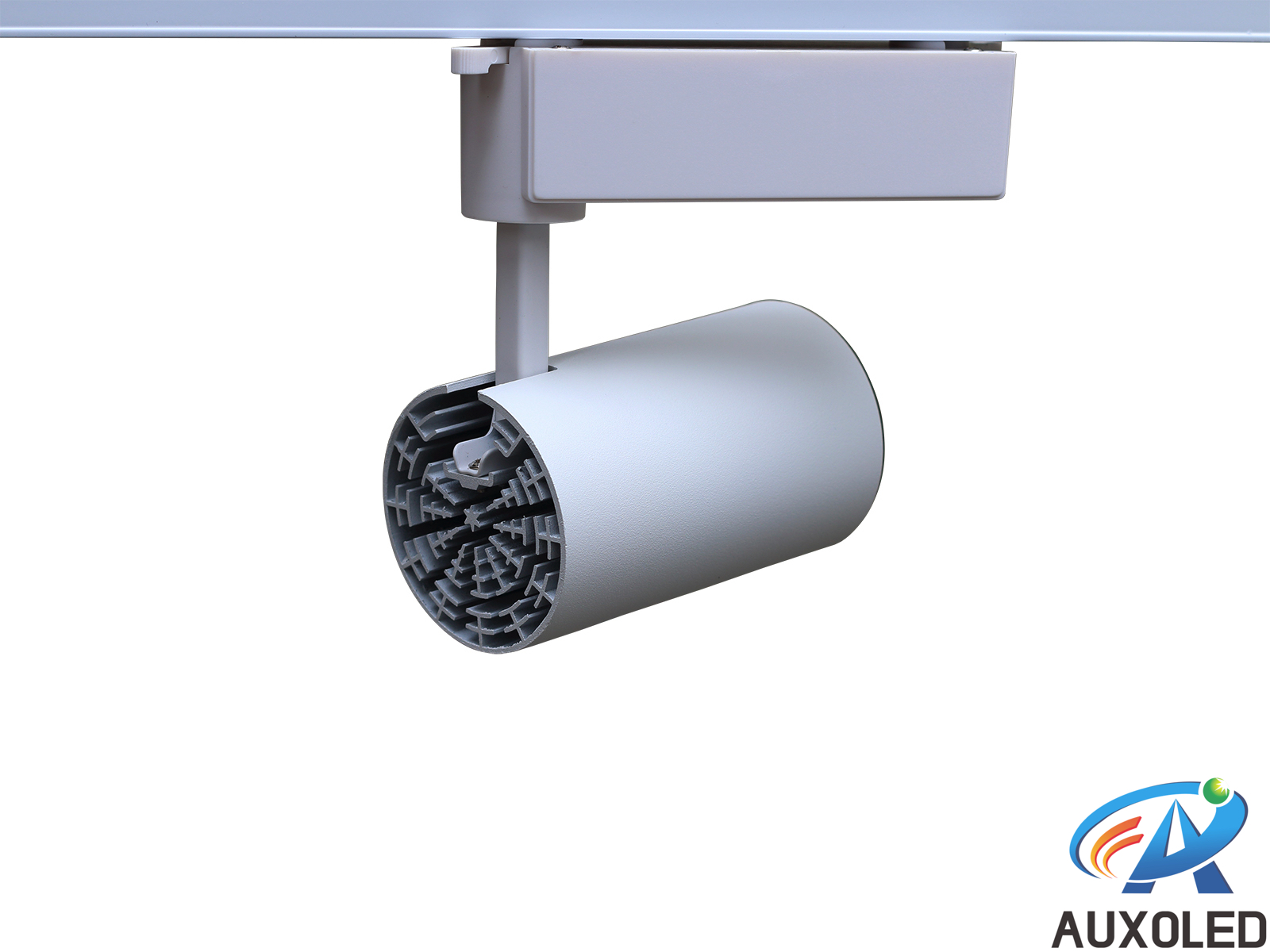

Use Excellent Quality Cold Forging 1060 Model Aluminum Housing, Gorgeous Heat Sink Effect
Rotating Horizontal Angle 360°, Adjustable Vertical Angle 90°, Flexible Emitting Range
Anodized Aluminum Housing, Elegant & Fashionable
AC85-265V Wide Input Voltage Range Design, Ideal Choice for Application in Different Regions
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe & Stable
Two Types Optional: PC Reflector Cup / PMMA Lens
No Flicker, No Radiation, Environmental Friendly & Energy Saving
● Applications:
Jewelry Store, Supermarket, Shopping Centre, KTV, Hotel, Restaurant, Office, Exhibition Hall, Cabinet, Warehouse, Clothes Store, Restroom, Kitchen, Bedroom, Living Room, Background Wall, Furniture Store, Museum, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: AL-TKL20A-RFC
Brand Name: AUXOLED
● Specific Parameters:
Lamp Body Dimensions: Φ65*H95 (mm)
Light Source: 10-20W COB LED
Chip Brand: Cree
Beam Angle: 12°/24°/36°
CRI: ＞70
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 10-20W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Color Temperature: 3000K (Warm White), 4000K (Natural White), 5000K (Pure White)
Luminous Flux: 100-110LM/W
Adjustable Angle: Horizontal 360°; Vertical 90°
Main Material: Cold Forging Aluminum + PC
Finished Color: White / Black
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | CCT | Beam Angle | CRI | Luminous Flux |
| AC85-265V | 3000K/4000K/5000K |
12°/15°/24°/36°/40°/60° |
＞70 |
100-110LM/W |
| Item No. | Lamp Body Dimensions | Power Consumption | Light Source | Type |
| AL-TKL20A-RFC | Φ65*H95 (mm) | 20W | 10-20W COB LED | Reflector |
|
AL-TKL30A-RFC |
Φ85*H112 (mm) |
30W | 30-35W COB LED | Reflector |
|
AL-TKL20A-LEN |
Φ65*H112 (mm) |
20W | 10-20W COB LED | Lens |
|
AL-TKL30A-LEN |
Φ85*H130 (mm) |
30W | 30-35W COB LED | Lens |
● Advantages:
Use Imported Cree LED Chips, Excellent Quality, Super Long Working LifespanUse Excellent Quality Cold Forging 1060 Model Aluminum Housing, Gorgeous Heat Sink Effect
Rotating Horizontal Angle 360°, Adjustable Vertical Angle 90°, Flexible Emitting Range
Anodized Aluminum Housing, Elegant & Fashionable
AC85-265V Wide Input Voltage Range Design, Ideal Choice for Application in Different Regions
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe & Stable
Two Types Optional: PC Reflector Cup / PMMA Lens
No Flicker, No Radiation, Environmental Friendly & Energy Saving
● Applications:
Jewelry Store, Supermarket, Shopping Centre, KTV, Hotel, Restaurant, Office, Exhibition Hall, Cabinet, Warehouse, Clothes Store, Restroom, Kitchen, Bedroom, Living Room, Background Wall, Furniture Store, Museum, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
