2.5mm FPC LED Ribbon
- Item No：FPC2.5-1000-120LED0805W-1P-12V
- views：194
Parameter Feature Detail Application

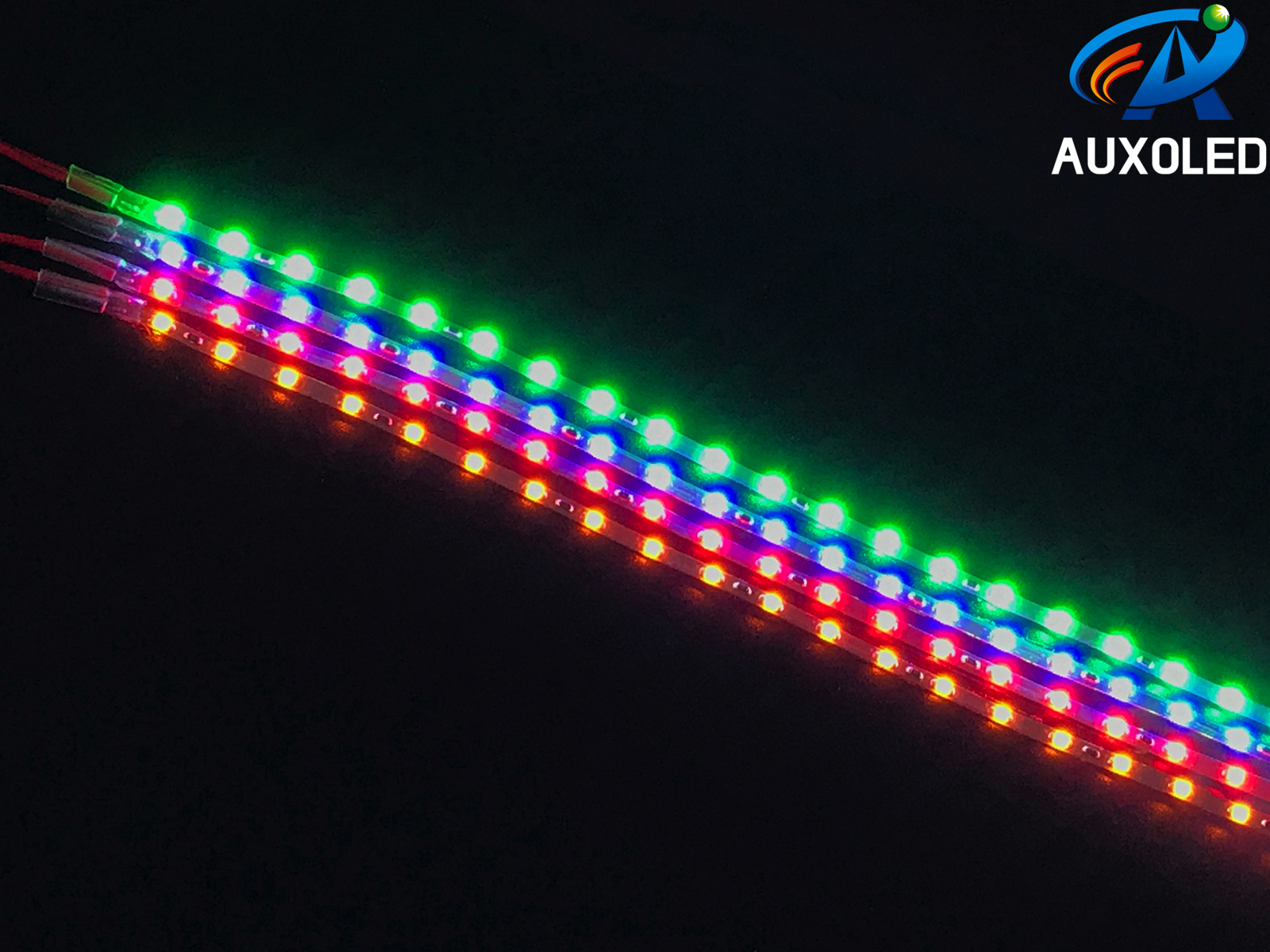

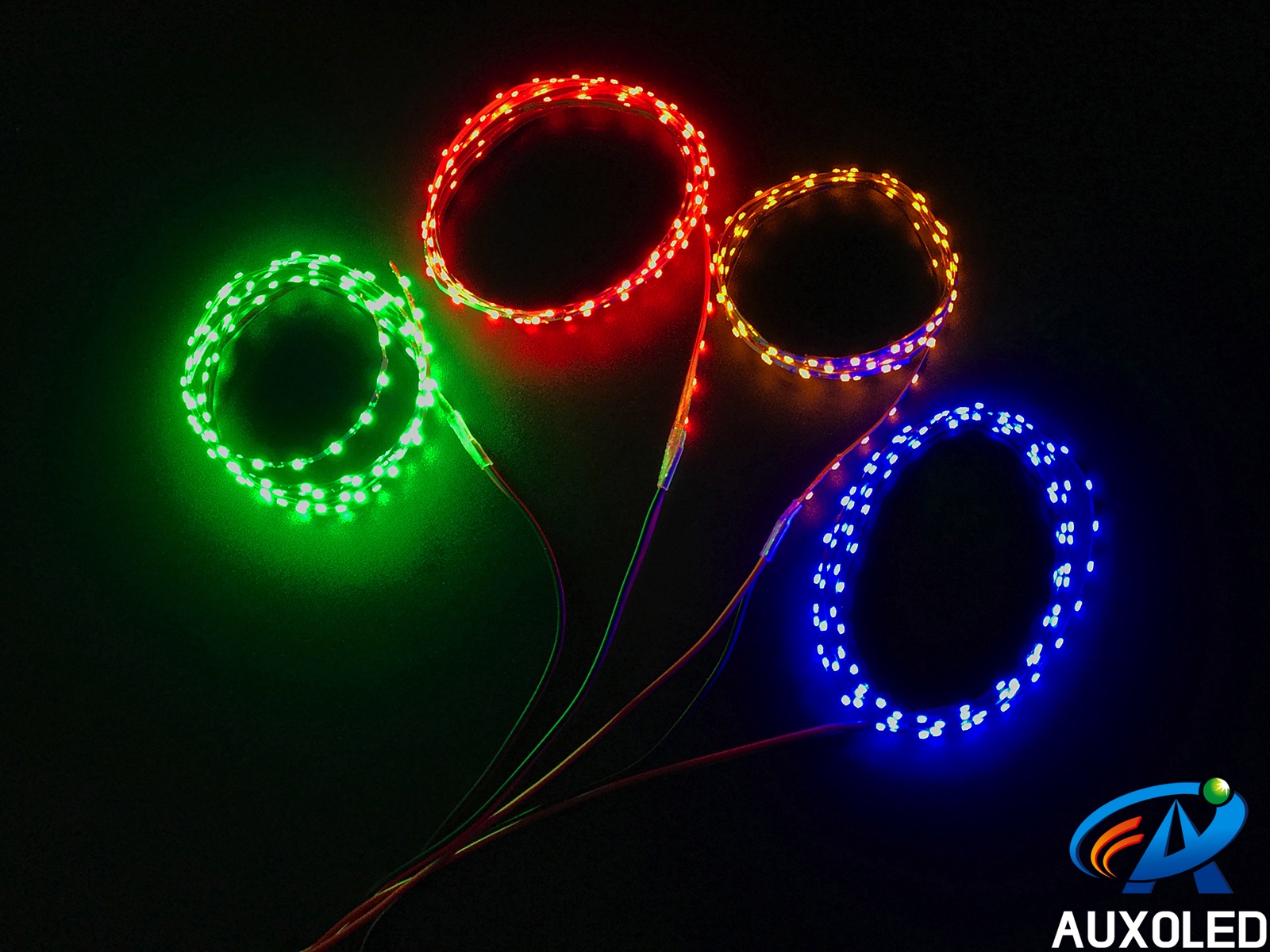

Item Name: 2.5mm DC12V 9.6W Flexible LED Ribbon Strip Light
Item No.: FPC2.5-1000-120LED0805-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W2.5*L1000*T1.80 (mm)
Light Source: 120PCS SMD0805 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V
Power Consumption: 9.6W
Available Color: Red, Green, Blue (Ice Blue), Yellow, White
Luminous Flux: 3-4LM/LED (White)
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
2.5mm / 3.5mm Super Narrow PCB Design, Good Application Adaptability
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Cold White Color Temperature, Uniform Light Ray with High Light Efficiency
DC3V or DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: FPC2.5-1000-120LED0805-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W2.5*L1000*T1.80 (mm)
Light Source: 120PCS SMD0805 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V
Power Consumption: 9.6W
Available Color: Red, Green, Blue (Ice Blue), Yellow, White
Luminous Flux: 3-4LM/LED (White)
PCB Material: FPC
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Available Color | Beam Angle | CRI | IP Class |
| DC12V / DC3V | R/G/B/Y/W |
120° |
＞70 |
IP20 |
| Item No. | Product Dimensions | Power Consumption | Light Source | Luminous Flux |
| FPC3.5-360-36LED1206-1P-3V | W3.5*360*T1.8 (mm) | 2.16W | 36PCS SMD1206 | 2-3LM / LED |
|
FPC2.5-500-36LED0805-1P-3V |
W2.5*500*T1.8 (mm) |
2.16W | 36PCS SMD0805 | 3-4LM / LED |
|
FPC2.5-500-60LED0805-1P-12V |
W3.5*500*T1.8 (mm) |
4.8W | 60PCS SMD0805 | 3-4LM/ LED |
● Advantages:
Use Imported Epistar Chip LEDs, Super Long Working Lifespan2.5mm / 3.5mm Super Narrow PCB Design, Good Application Adaptability
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage
Cold White Color Temperature, Uniform Light Ray with High Light Efficiency
DC3V or DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
