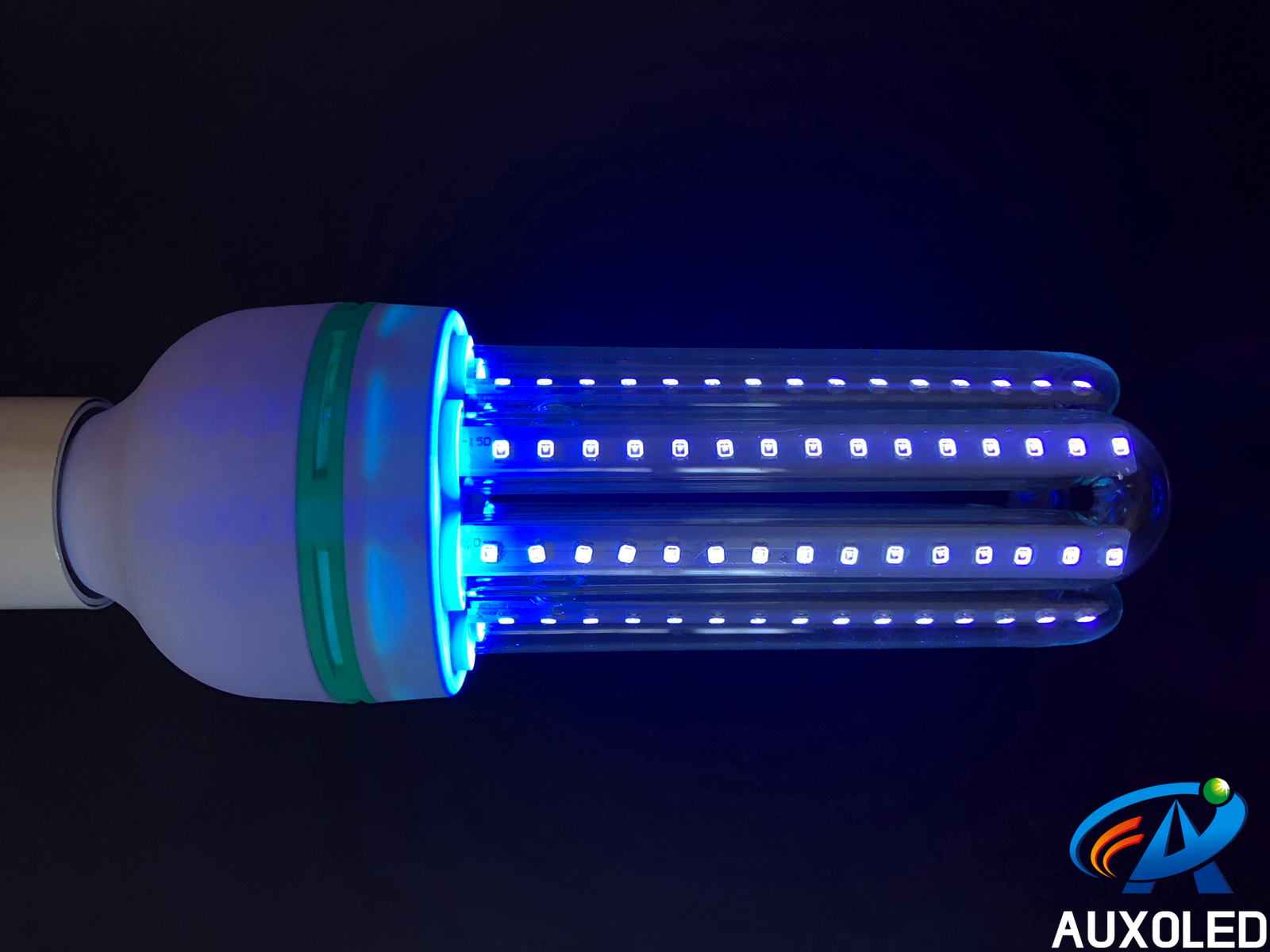

LED Moth Luring Light
- Item No：AL-CNL24UV-GP
- views：215
Parameter Feature Detail Application
Item Name: 24W UV 365-370nm ES27 Moth Luring Light/Mosquito Killing Light/UV LED Corn Light/LED Insect Attracting Light/LED Blacklight
Item No.: AL-CNL24UV-GP
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: Φ72*H260 (mm)
Light Source: 120PCS SMD2835 LEDs
Chip Brand: Epiled
Beam Angle: 360°
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 24W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Wave Length: 365-370nm
Luminous Flux: 80-100MCD / LED
Base: E39/E40/E27/E26/B22
Main Material: Aluminum + Glass
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Use Excellent Quality Aluminum Radiator, Gorgeous Heat Sink Effect
360° Emitting, Uniform Light Ray and High Light Efficiency
E39/E40/E27/E26/E14/B22 Base Optional, Easy Installation and Replacement
AC85-265V Wide Input Voltage Range Design, Safe and Stable
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
9W, 12W, 16W, 20W, 24W, 32W Power Consumption Optional, Meets the Demand of Different Applications
No Flicker, Environmental Friendly and Energy Saving
● Applications:

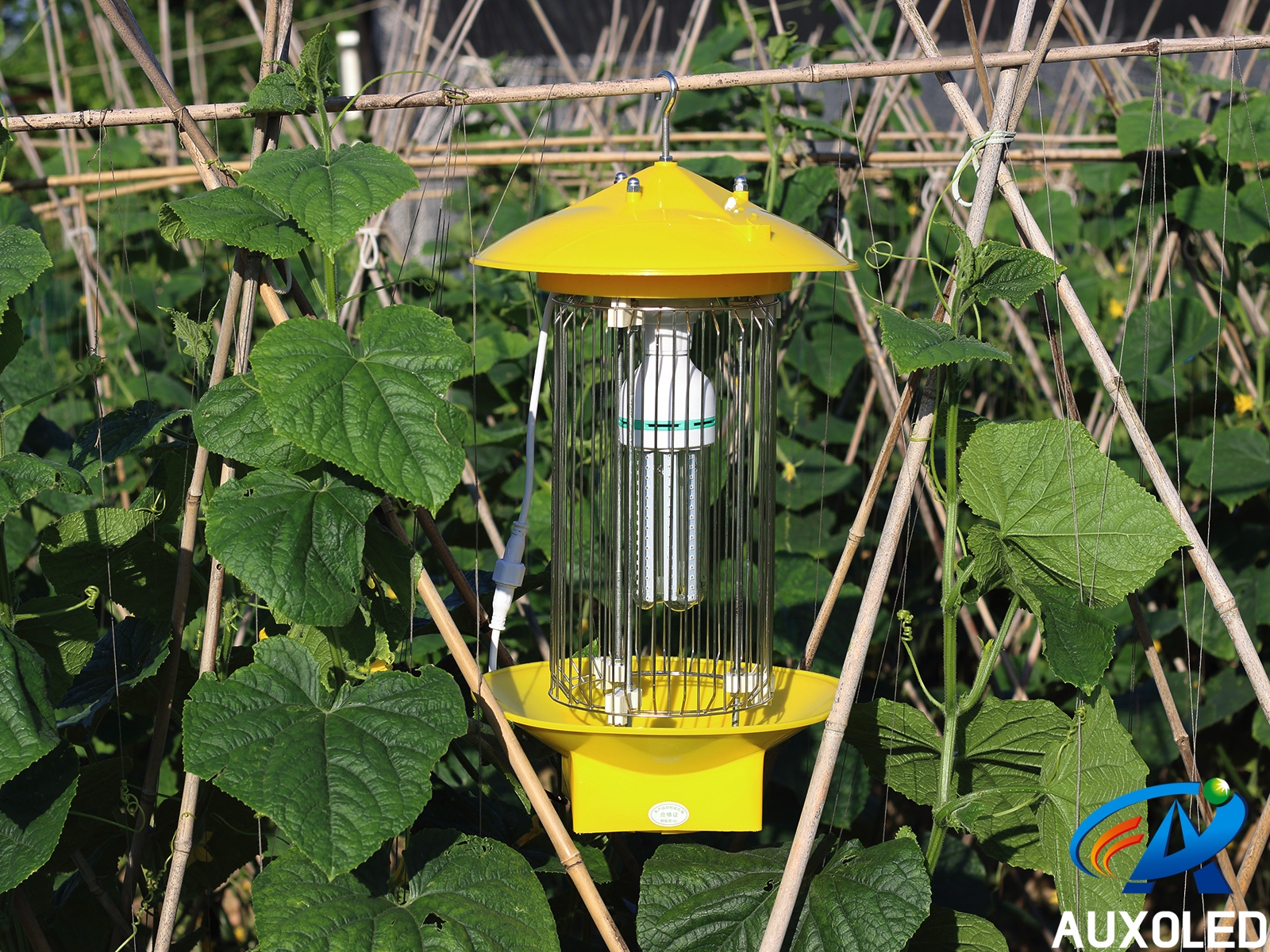

Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
Item No.: AL-CNL24UV-GP
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: Φ72*H260 (mm)
Light Source: 120PCS SMD2835 LEDs
Chip Brand: Epiled
Beam Angle: 360°
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 24W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Wave Length: 365-370nm
Luminous Flux: 80-100MCD / LED
Base: E39/E40/E27/E26/B22
Main Material: Aluminum + Glass
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Wave Length | Beam Angle | Working Temperature | Luminous Flux |
| AC85-265V | 365-370nm |
360° |
-20℃~45℃ |
80-100MCD / LED |
| Item No. | Product Dimensions | Power Consumption | Light Source | Base |
| AL-CNL9UV-GP | Φ40*H143 (mm) | 9W | 48PCS SMD2835 | E26/E27 |
|
AL-CNL12UV-GP |
Φ52*H150 (mm) |
12W | 60PCS SMD2835 | E26/E27 |
| AL-CNL16UV-GP |
Φ58*H185 (mm) |
16W | 80PCS SMD2835 | E26/E27/E39/E40 |
|
AL-CNL20UV-GP |
Φ58*H185 (mm) |
20W | 96PCS SMD2835 | E26/E27/E39/E40 |
|
AL-CNL24UV-GP |
Φ72*H260 (mm) |
24W | 120PCS SMD2835 | E26/E27/E39/E40 |
|
AL-CNL32UV-GP |
Φ72*H260 (mm) |
32W | 160PCS SMD2835 | E26/E27/E39/E40 |
● Advantages:
Use Imported Epiled LED Chips, Excellent Quality, Super Long Working Lifespan
Use Excellent Quality Aluminum Radiator, Gorgeous Heat Sink Effect
360° Emitting, Uniform Light Ray and High Light Efficiency
E39/E40/E27/E26/E14/B22 Base Optional, Easy Installation and Replacement
AC85-265V Wide Input Voltage Range Design, Safe and Stable
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
9W, 12W, 16W, 20W, 24W, 32W Power Consumption Optional, Meets the Demand of Different Applications
No Flicker, Environmental Friendly and Energy Saving
● Applications:
Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
2 Years
