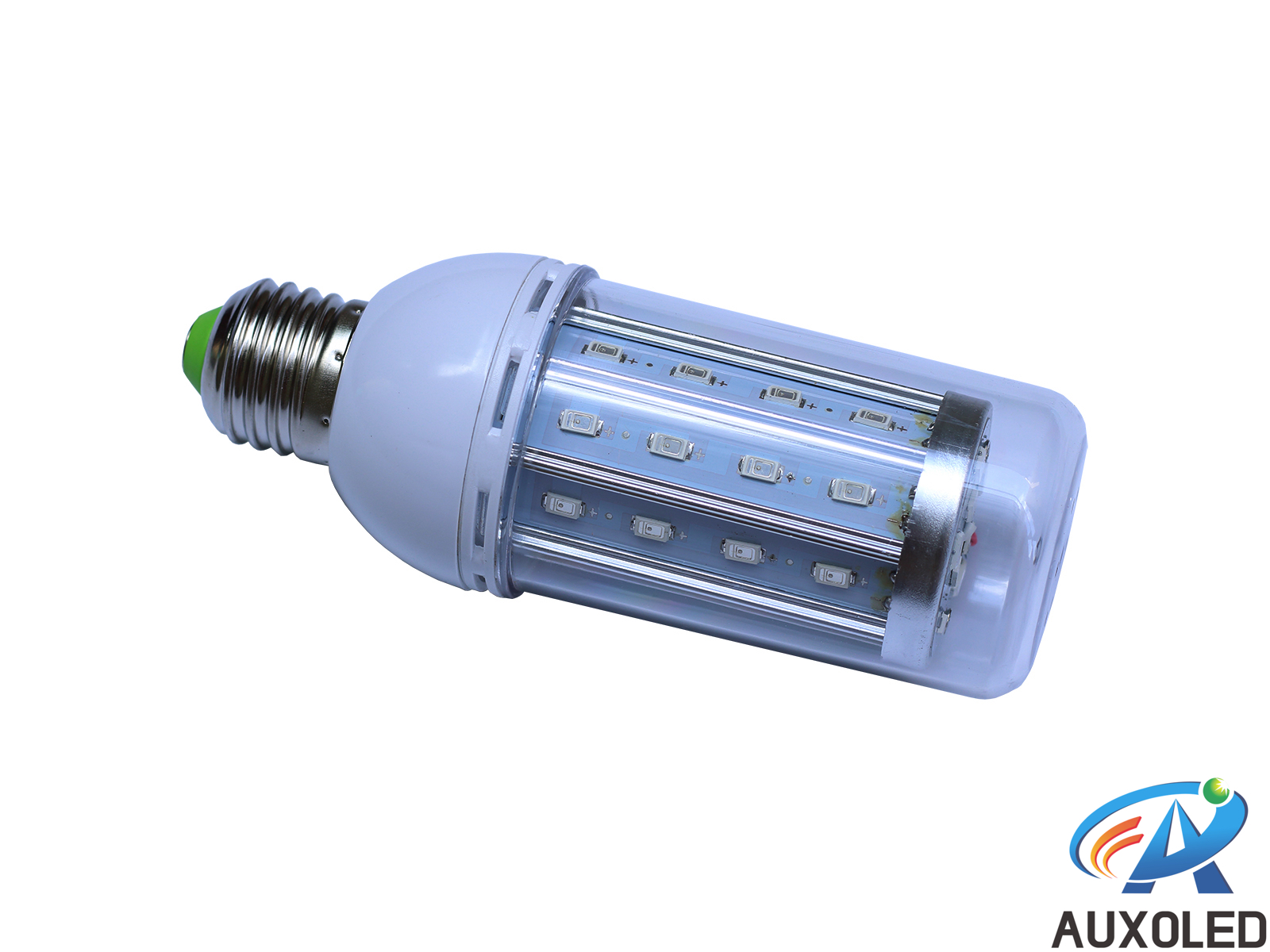

LED Moth Attract Lamp
- Item No：AL-CNL12UV-BL
- views：181
Parameter Feature Detail Application
Item Name: 12W UV 365-370nm ES27 Moth Attracting Light/Mosquito Killing Light/UV LED Blacklight/LED Cold Storage Sterilizing Lamp
Item No.: AL-CNL12UV-BL
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: Φ52*H135 (mm)
Light Source: 40PCS SMD5730 LEDs
Chip Brand: Epiled
Beam Angle: 360°
Input Voltage: DC12-24V / DC36-48V / AC85-265V (50-60Hz)
Power Consumption: 12W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Wave Length: 365-370nm
Luminous Flux: 70-80MCD / LED
Base: E27/E26/E14/B22
Main Material: Aluminum + PC
Working Temperature: -40℃~65℃
Working Lifespan: 50,000 Hrs
Use Excellent Quality Aluminum Radiator, Gorgeous Heat Sink Effect
360° Emitting, Uniform Light Ray and High Light Efficiency
E39/E40/E27/E26/E14/B22 Base Optional, Easy Installation and Replacement
AC85-265V Wide Input Voltage Range Design, Safe and Stable
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
9W, 12W, 15W, 18W, 20W, 23W, 25W Power Consumption Optional, Meets the Demand of Different Applications
No Flicker, Environmental Friendly and Energy Saving
● Applications:

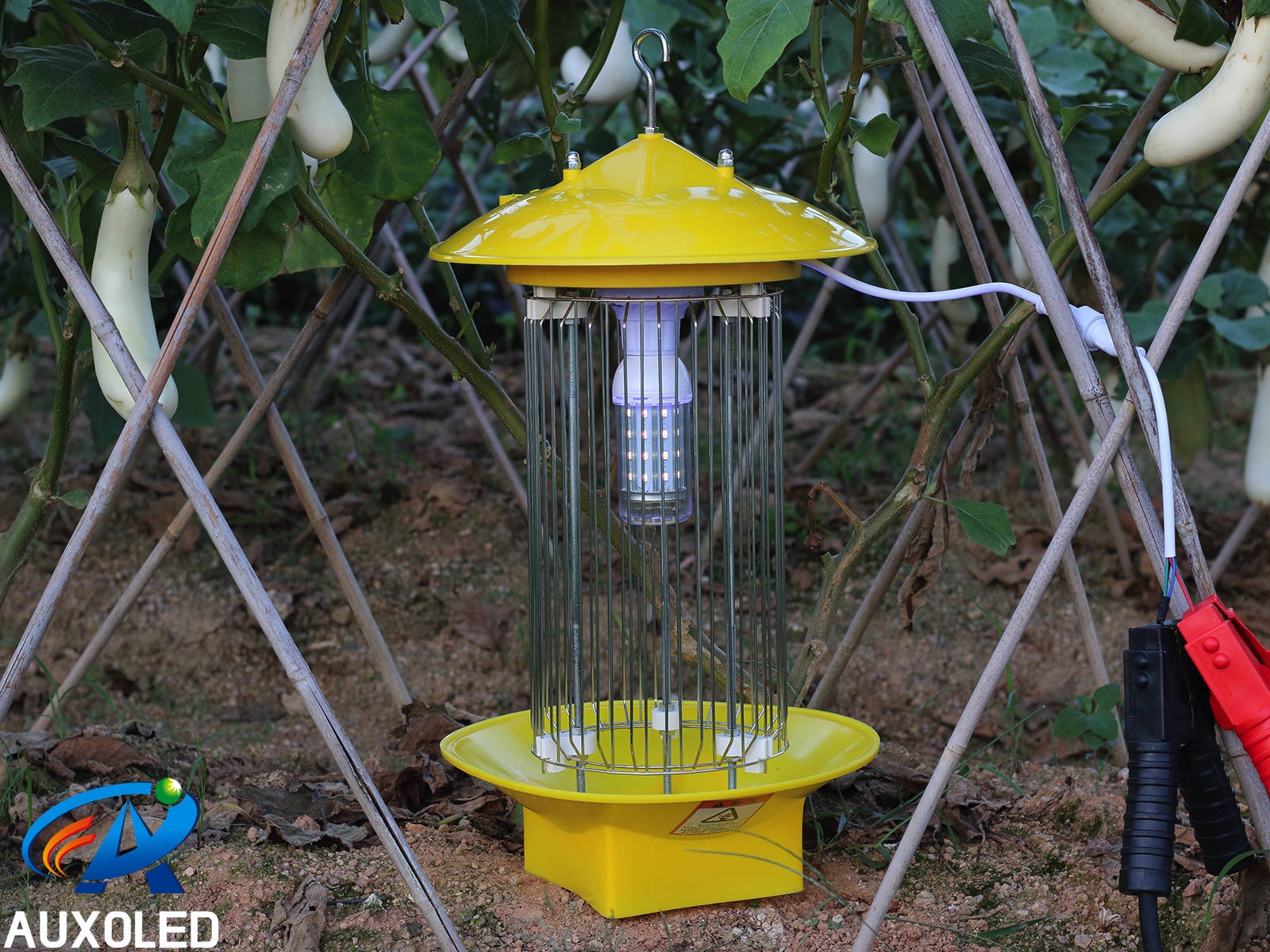

Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
Item No.: AL-CNL12UV-BL
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: Φ52*H135 (mm)
Light Source: 40PCS SMD5730 LEDs
Chip Brand: Epiled
Beam Angle: 360°
Input Voltage: DC12-24V / DC36-48V / AC85-265V (50-60Hz)
Power Consumption: 12W
Driver Type: Built-in Constant Current Driver
PF: ＞0.90
Wave Length: 365-370nm
Luminous Flux: 70-80MCD / LED
Base: E27/E26/E14/B22
Main Material: Aluminum + PC
Working Temperature: -40℃~65℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Wave Length | Beam Angle | Working Temperature | Luminous Flux |
| AC85-265V | 365-370nm |
360° |
-40℃~65℃ |
70-80MCD / LED |
| Item No. | Product Dimensions | Power Consumption | Light Source | Base |
| AL-CNL9UV-BL | Φ42*H125 (mm) | 9W | 28PCS SMD5730 | E26/E27 |
|
AL-CNL12UV-BL |
Φ52*H135 (mm) |
12W | 40PCS SMD5730 | E26/E27 |
| AL-CNL15UV-BL |
Φ56*H155 (mm) |
15W | 60PCS SMD5730 | E26/E27/E39/E40 |
|
AL-CNL18UV-BL |
Φ56*H155 (mm) |
18W | 96PCS SMD2835 | E26/E27/E39/E40 |
|
AL-CNL20UV-BL |
Φ65*H170 (mm) |
20W | 112PCS SMD2835 | E26/E27/E39/E40 |
|
AL-CNL23UV-BL |
Φ65*H170 (mm) |
23W | 75PCS SMD5730 | E26/E27/E39/E40 |
|
AL-CNL25UV-BL |
Φ73*H190 (mm) |
25W |
96PCS SMD5730 |
E26/E27/E39/E40 |
● Advantages:
Use Imported Epiled LED Chips, Excellent Quality, Super Long Working Lifespan
Use Excellent Quality Aluminum Radiator, Gorgeous Heat Sink Effect
360° Emitting, Uniform Light Ray and High Light Efficiency
E39/E40/E27/E26/E14/B22 Base Optional, Easy Installation and Replacement
AC85-265V Wide Input Voltage Range Design, Safe and Stable
Built-in High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
9W, 12W, 15W, 18W, 20W, 23W, 25W Power Consumption Optional, Meets the Demand of Different Applications
No Flicker, Environmental Friendly and Energy Saving
● Applications:
Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS, PSE
● Warranty:
2 Years
