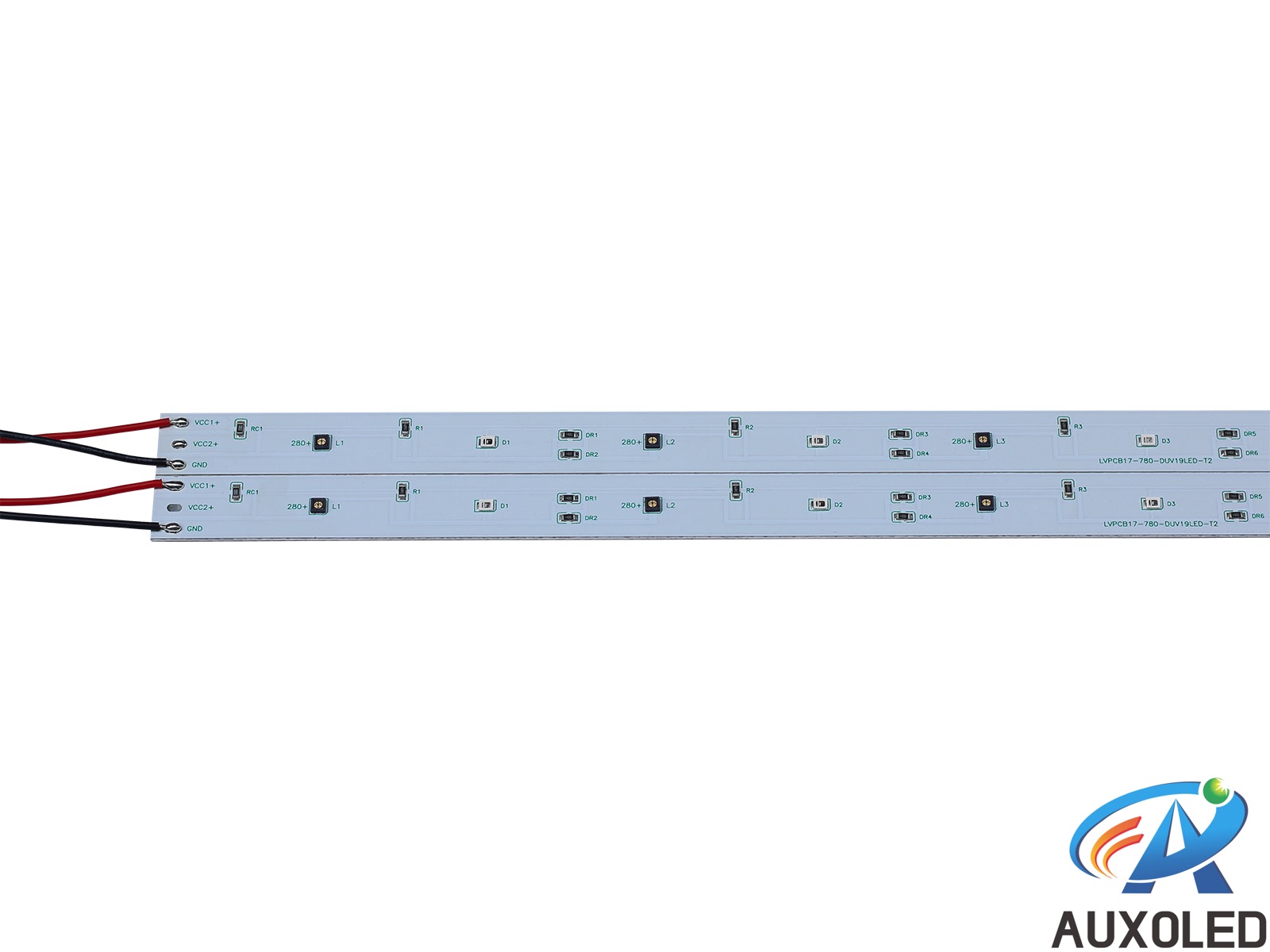

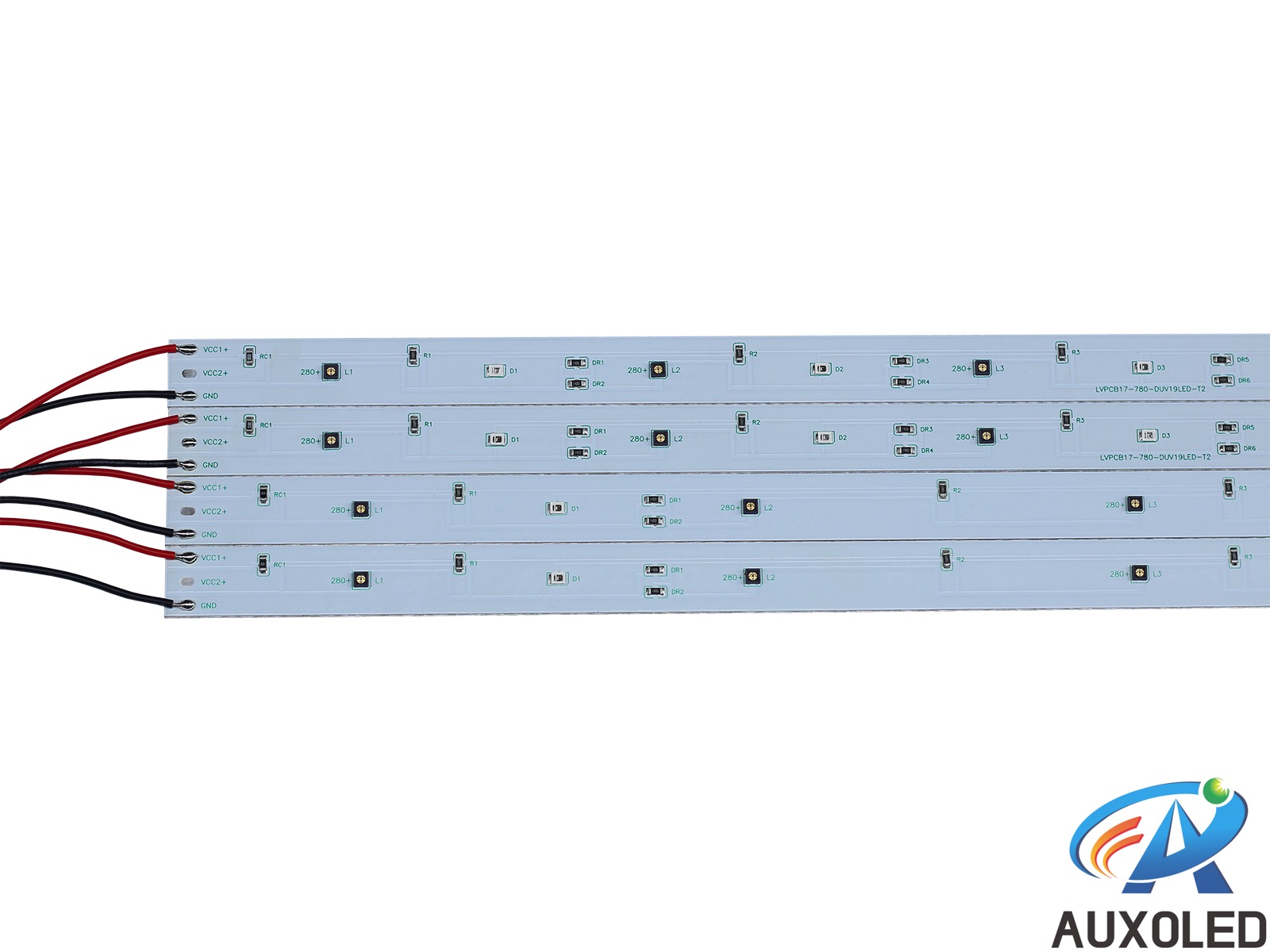

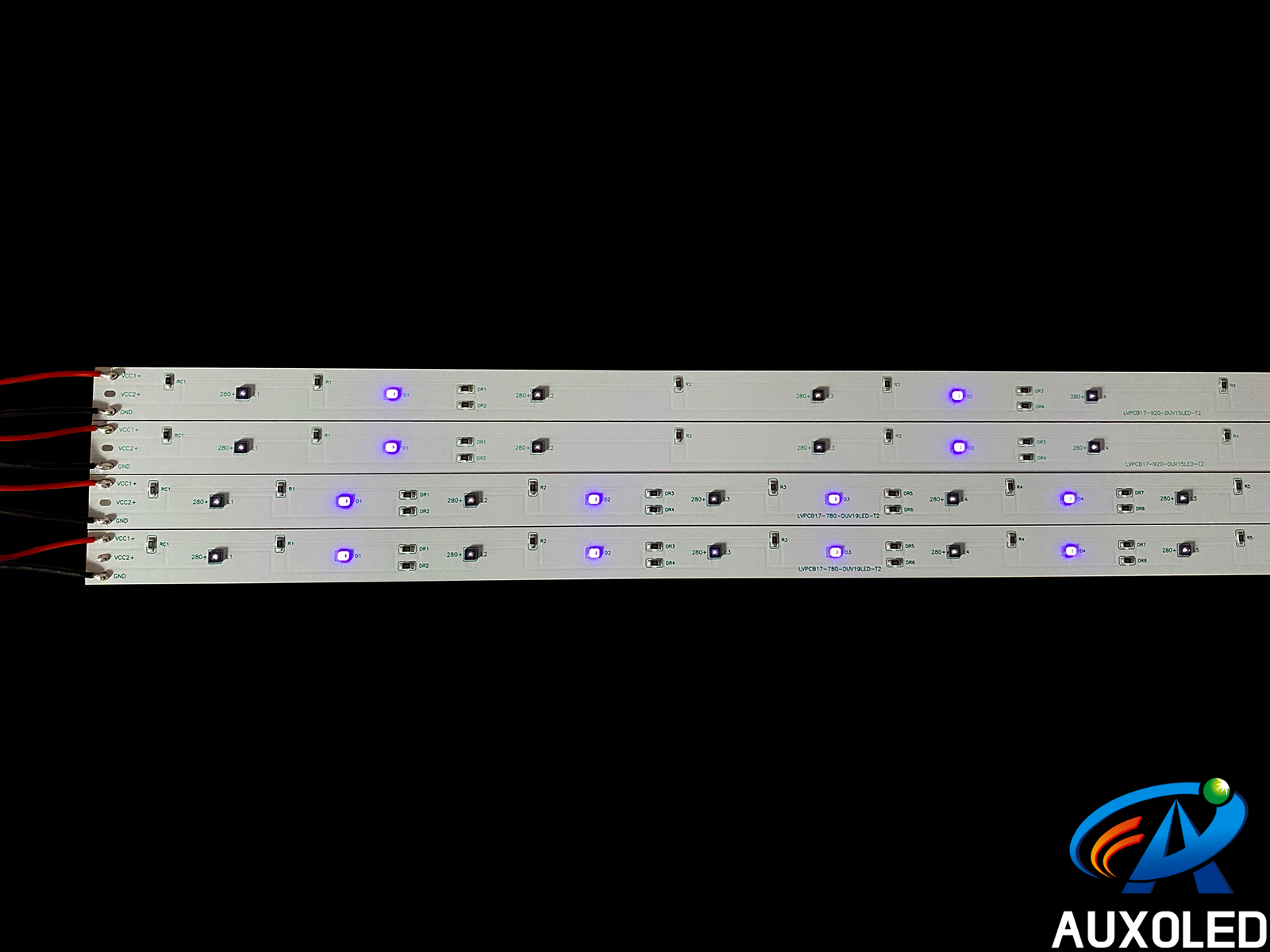

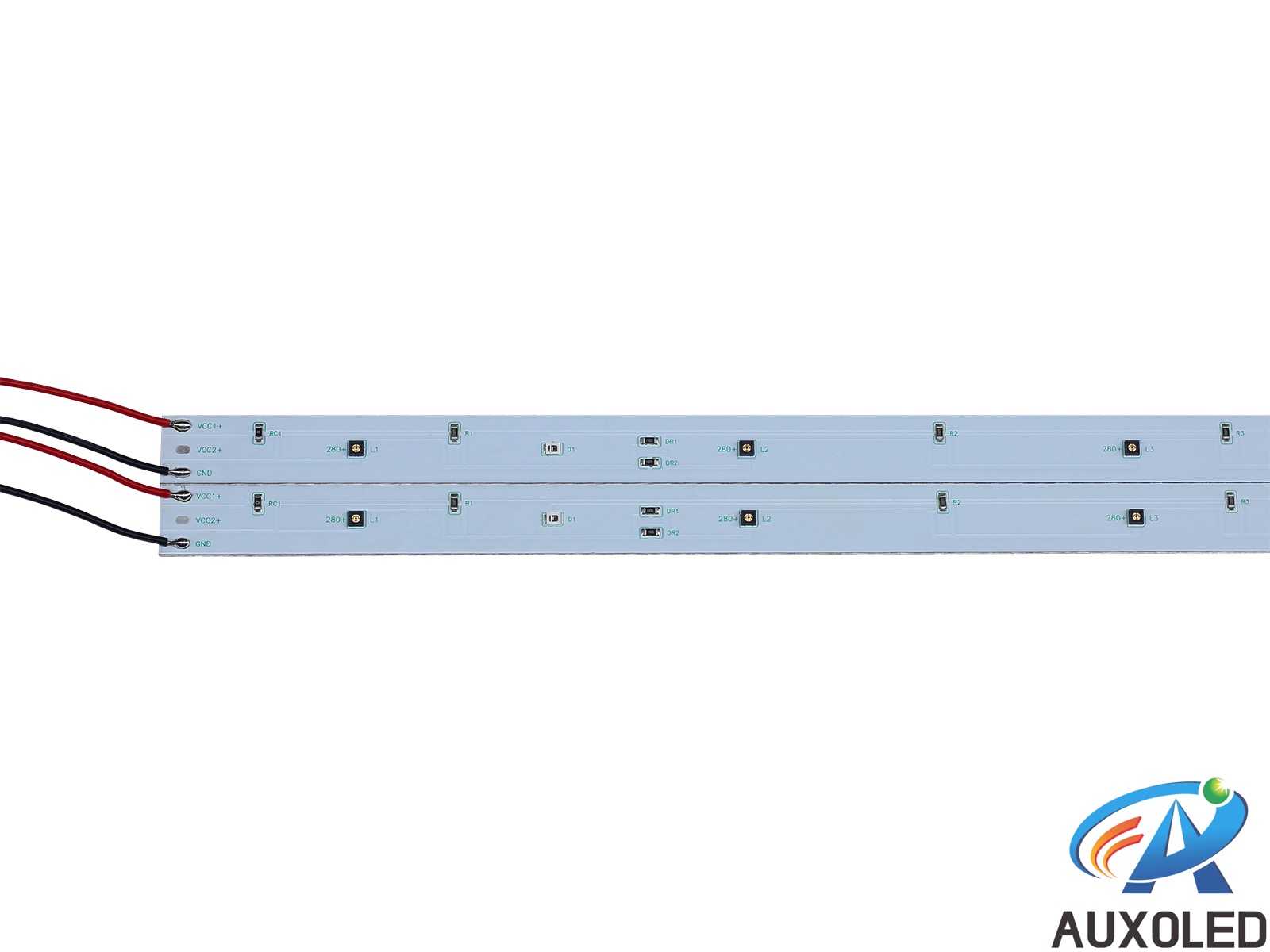

UVC LED Germicidal Bar
- Item No：LVPCB17-780-DUV19LED-T2
- views：112
Parameter Feature Detail Application
Item Name: DC12V / DC5V (USB) 6W UVC Masks/Bags/Boxes/Suitcases/Kitchen Disinfection Germicidal Sterilizing Aluminum LED Strip Light Bar
Item No.: LVPCB17-780-DUV19LED-T2
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W17*L780*T2 (mm)
Light Source: 6W UVC LED
Chip Brand: Epiled
Beam Angle: 120°
Input Voltage: DC12V or DC5V (USB Available)
Power Consumption: 6W
LED Wave Length: 275-280nm + 395nm
PCB Material: 2MM Thick Aluminum Base
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
2MM Thick High Heat Conductivity Coefficient Aluminum PCB Base, Gorgeous Heat Sink Effect
DC12V or DC5V Input with USB Cable, Can Work with Power Bank, Portable
Mechanical Switch + Delay ON & Auto-OFF Solution: 1st Solution - 10 Seconds Power-ON Delay, Fixed Delay Auto-OFF Time, 1min to 15 Hrs Optional, Once Chosen, We Would Define the Delay Time as per Required before Leaving Our Factory, Non-adjustable to Users; 2nd Solution - 10 Seconds Power-ON Delay (This Function is Optional), 5mins / 15mins / 30mins Delay Auto-OFF Switchable
Wireless Remote Switch + Delay ON & Delay Auto-OFF Solution: 10 Seconds Power-ON Delay (Fixed), 1min to 15 hrs Delay Auto-OFF Adjustable to Users; Regular Remote Emitter - One Key (ON / OFF), Two Keys (ON & OFF) Optional, Remote Distance 20-30M without Barriers, Can Get Through Walls, Efficient Distance is approximate 10-20M; Moreover, 1KM Super Long Remote Controller is Available
Electromagnetic Switch Solution: Electromagnetic Switch now is At Service, An Elegant and Smart Way to Control the ON / OFF
275-280nm + 395nm UV LEDs, Born for Easy, Fast & Efficient Lighting and Disinfection, Sterilization of Kitchen, Underwear, Masks, Bags, Suitcase, etc., Can Eliminate 99.9% Bacterias
Can Connect More Pieces for Different Application Needs
No Flicker, Environmental Friendly and Energy Saving
● Applications:
Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: LVPCB17-780-DUV19LED-T2
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W17*L780*T2 (mm)
Light Source: 6W UVC LED
Chip Brand: Epiled
Beam Angle: 120°
Input Voltage: DC12V or DC5V (USB Available)
Power Consumption: 6W
LED Wave Length: 275-280nm + 395nm
PCB Material: 2MM Thick Aluminum Base
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Wave Length | Beam Angle | PCB Thickness | IP Class |
| DC12V / DC5V (USB) | 275-280nm + 395nm |
120° |
2 (mm) | IP20 |
| Item No. | Product Dimensions | Power Consumption | Light Source | PCB Material |
| LVPCB17-780-DUV19LED-T2 | W17*L780*T2 (mm) | 6W | 10 UVC + 9 UVA LEDs | Aluminum |
| LVPCB17-920-DUV15LED-T2 | W17*L920*T2 (mm) | 5.5W | 10UVC + 5 UVA LEDs | Aluminum |
● Advantages:
Use Imported Epiled LED Chips, Super Long Working Lifespan2MM Thick High Heat Conductivity Coefficient Aluminum PCB Base, Gorgeous Heat Sink Effect
DC12V or DC5V Input with USB Cable, Can Work with Power Bank, Portable
Mechanical Switch + Delay ON & Auto-OFF Solution: 1st Solution - 10 Seconds Power-ON Delay, Fixed Delay Auto-OFF Time, 1min to 15 Hrs Optional, Once Chosen, We Would Define the Delay Time as per Required before Leaving Our Factory, Non-adjustable to Users; 2nd Solution - 10 Seconds Power-ON Delay (This Function is Optional), 5mins / 15mins / 30mins Delay Auto-OFF Switchable
Wireless Remote Switch + Delay ON & Delay Auto-OFF Solution: 10 Seconds Power-ON Delay (Fixed), 1min to 15 hrs Delay Auto-OFF Adjustable to Users; Regular Remote Emitter - One Key (ON / OFF), Two Keys (ON & OFF) Optional, Remote Distance 20-30M without Barriers, Can Get Through Walls, Efficient Distance is approximate 10-20M; Moreover, 1KM Super Long Remote Controller is Available
Electromagnetic Switch Solution: Electromagnetic Switch now is At Service, An Elegant and Smart Way to Control the ON / OFF
275-280nm + 395nm UV LEDs, Born for Easy, Fast & Efficient Lighting and Disinfection, Sterilization of Kitchen, Underwear, Masks, Bags, Suitcase, etc., Can Eliminate 99.9% Bacterias
Can Connect More Pieces for Different Application Needs
No Flicker, Environmental Friendly and Energy Saving
● Applications:
Bacteria Killing, Gauze Mask (Mouth Muffle) Disinfection, Skin Care, Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Moth & Insect Luring, Manicure, Food Sterilization & Fresh Keeping Packaging, Medical Treatment & Public Health, Detecting Bloodstain, Communication Technology, Decoration and Illumination, Aerospace, Air & Water Purification Treatment, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
