UV Curing LED Strip
- Item No：LVPCB25-520-102LED2835-1P-12V
- views：89
Parameter Feature Detail Application

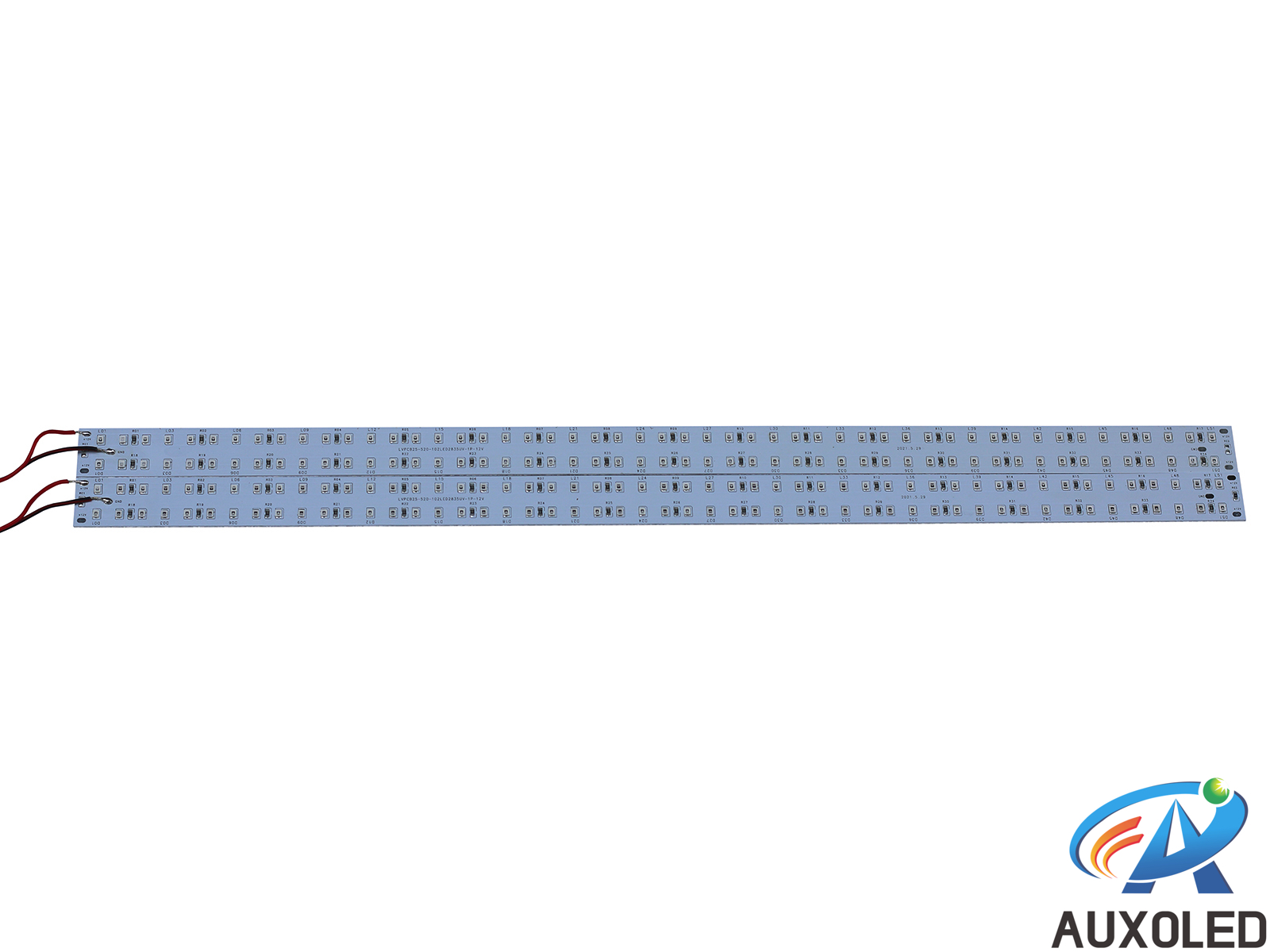

Item Name: DC12V 30W UV (Ultra-violet) SMD2835 Printing Curing LED Strip Bar Light/LED Insect Luring Lamp/LED Disinfection Strip
Item No.: LVPCB25-520-102LED2835-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W25*L520*H2.4 (mm)
Light Source: 102PCS SMD2835 UV LEDs
Chip Brand: Epiled
Beam Angle: 120°
Input Voltage: DC12V
Power Consumption: 30W
LED Wave Length: 365-410NM
PCB Material: 1.6MM Thick Aluminum Base
IP Class: IP20
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
1.6MM Thick Aluminum PCB Base, Gorgeous Heat Sink Effect
Dual Row Circuit Design, Can be Operated Individually, 120° Wide Beam Angle, Uniform Light Ray, Anti-glare
UL Complied Red & Black Soldering Wires, Safe and Environmental-friendly, Fine Processed
DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Manicure, Sterilization and Disinfection, Medical Treatment, Detecting Bloodstain, Decoration and Illumination, Aerospace, Water Treatment, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: LVPCB25-520-102LED2835-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W25*L520*H2.4 (mm)
Light Source: 102PCS SMD2835 UV LEDs
Chip Brand: Epiled
Beam Angle: 120°
Input Voltage: DC12V
Power Consumption: 30W
LED Wave Length: 365-410NM
PCB Material: 1.6MM Thick Aluminum Base
IP Class: IP20
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Wave Length | Beam Angle | PCB Thickness | IP Class |
| DC12V / DC36V | 365-410nm |
140° |
2 (mm) | IP20 |
| Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux (UV) |
| LVPCB15-550-15LED1W-1P-12V | W15*L550*T7 (mm) | 18W | 15PCS*1W | 180LM |
|
LVPCB20-738-18LED1W-1P-12V |
W20*L738*T7 (mm) |
21.6W | 18PCS*1W | 216LM |
|
LVPCB18-1000-18LED1W-1P-12V |
W18*L1000*T7 (mm) |
21.6W | 18PCS*1W | 216LM |
|
LVPCB20-750-10LED2W-1P-36V |
W20*L750*T7 (mm) |
19.8W | 10PCS*2W | 150LM |
|
LVPCB20-1190-16LED2W-1P-12V |
W20*L1190*T7 (mm) |
32W | 16PCS*2W | 240LM |
● Advantages:
Use Imported Epiled LED Chips, Long Working Lifespan1.6MM Thick Aluminum PCB Base, Gorgeous Heat Sink Effect
Dual Row Circuit Design, Can be Operated Individually, 120° Wide Beam Angle, Uniform Light Ray, Anti-glare
UL Complied Red & Black Soldering Wires, Safe and Environmental-friendly, Fine Processed
DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Detecting Currency, Printing (Curing Ink), Improving Plant Growing Condition, Fishing, Mosquito Eradication, Manicure, Sterilization and Disinfection, Medical Treatment, Detecting Bloodstain, Decoration and Illumination, Aerospace, Water Treatment, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
