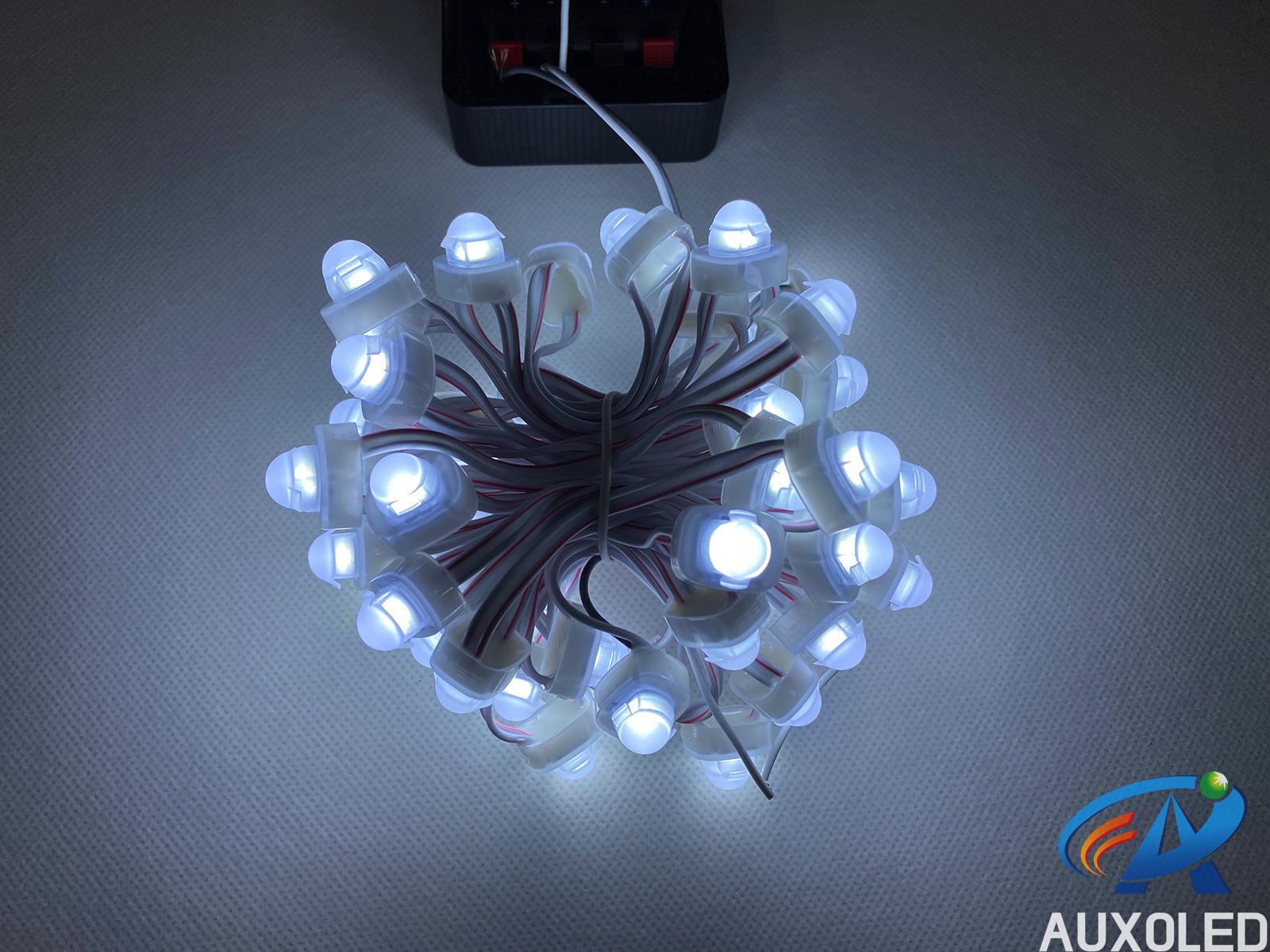

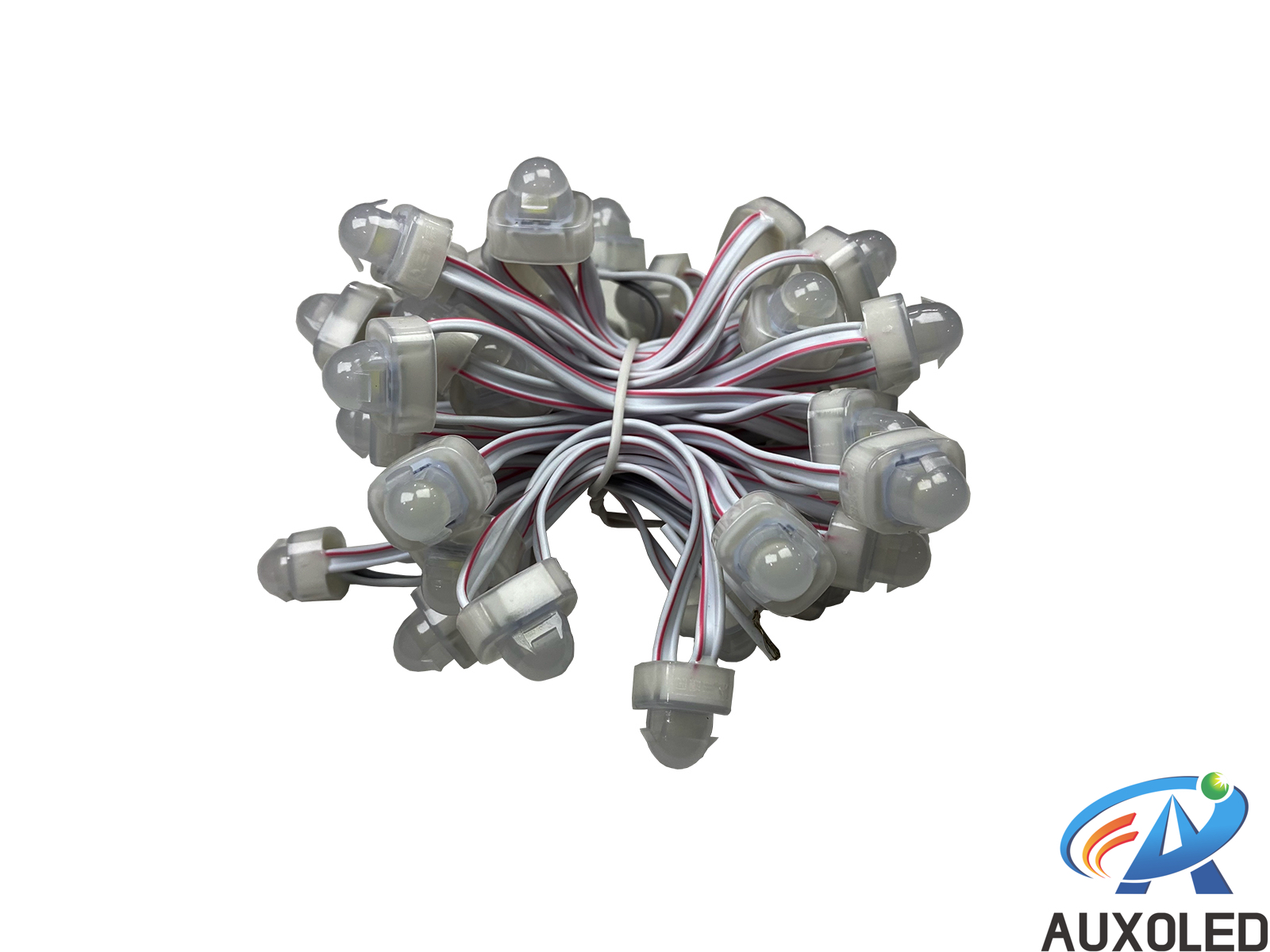

12V 12MM Full RGB LED Pixel
- Item No：PXL-FC12CLPS-12V
- views：10
Parameter Feature Detail Application
Item Name: DC12V 12MM Square Head IP67 Injection Molding Exposed LED String / LED Pixel Strip Light / LED Rope Light / Point Light / Dot Light / Christmas Module Light
Item No.: PXL-FC12CLPS-12V
Brand Name: AUXOLED
● Specific Parameters:
Lamp Head Diameter: 12 (mm)
Qty / String: 50PCS
Chip Brand: Sanan, Epistar or Epiled
Beam Angle: 360°
Wire Length: 8cm
Input Voltage: DC12V
Power / LED: 0.15-0.2W per LED
Emitting Color: Breakpoint Resume Full Color RGB
Housing Material: PVC
Connecting Method: 4 Wire Male & Female Connectors
IP Class: IP67
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Can be Used for Both Decoration and Illumination Indoor and Outdoor (IP Class: IP67 / IP68)
High Quality PVC or PC Housing, Good Heat Sink, Super Anti-UV & Waterproof
Clear Lamp Housing, Can Achieve Brighter Lighting Effect
Hole Drilling Installation Design, Can Cut and Reconnect Freely; Use Male and Female Connectors for Connecting, Easy Installation and Maintenance
Using Eco-friendly & Anti-static Bag for Packing, 800PCS / Bag (16 Strings); Can Pack as per Customers' Requirements as Well.
DC12V or DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: PXL-FC12CLPS-12V
Brand Name: AUXOLED
● Specific Parameters:
Lamp Head Diameter: 12 (mm)
Qty / String: 50PCS
Chip Brand: Sanan, Epistar or Epiled
Beam Angle: 360°
Wire Length: 8cm
Input Voltage: DC12V
Power / LED: 0.15-0.2W per LED
Emitting Color: Breakpoint Resume Full Color RGB
Housing Material: PVC
Connecting Method: 4 Wire Male & Female Connectors
IP Class: IP67
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Emitting Color | Beam Angle | Chip Brand | IP Class |
| DC5V / DC12V | R/G/B/Y/W/PUR/OR/ICE Blue/RGB/Full Color |
360° |
Sanan / Epistar / Epiled | IP67 / IP68 |
| Item No. | Lamp Head Diameter | Power / LED | Wire Length |
Qty / String |
| PXL-R9CLP-12V | 9mm | 0.15W | 7cm | 50PCS |
|
PXL-G9CLP-12V |
9mm |
0.15W |
7cm |
50PCS |
|
PXL-B9CLP-12V |
9mm |
0.15W |
7cm |
50PCS |
|
PXL-W9CLP-12V |
9mm |
0.15W |
7cm |
50PCS |
|
PXL-PUR9CLP-12V |
9mm |
0.15W |
7cm |
50PCS |
|
PXL-OR9CLP-12V |
9mm |
0.15W |
7cm |
50PCS |
|
PXL-IB9CLP-12V |
9mm |
0.15W |
7cm |
50PCS |
|
PXL-RGB12CLPS-12V |
12mm |
0.3W |
8cm |
50PCS |
|
PXL-FC12CLPS-12V |
12mm |
0.3W |
8cm |
50PCS |
|
PXL-RGB12CLPS-5V |
12mm |
0.3W |
8cm |
50PCS |
| PXL-FC12CLPS-5V | 12mm |
0.3W |
8cm |
50PCS |
|
PXL-R20CLP-12V |
20mm |
0.15W |
8cm |
50PCS |
|
PXL-W20CLPR-12V |
20mm |
0.15W |
8cm |
50PCS |
| PXL-FC20CLPR-12V | 20mm | 0.3W | 8cm | 20PCS |
● Advantages:
Use Imported Epistar or Epiled Chip LEDs, High Brightness & Excellent Quality, Super Long Working LifespanCan be Used for Both Decoration and Illumination Indoor and Outdoor (IP Class: IP67 / IP68)
High Quality PVC or PC Housing, Good Heat Sink, Super Anti-UV & Waterproof
Clear Lamp Housing, Can Achieve Brighter Lighting Effect
Hole Drilling Installation Design, Can Cut and Reconnect Freely; Use Male and Female Connectors for Connecting, Easy Installation and Maintenance
Using Eco-friendly & Anti-static Bag for Packing, 800PCS / Bag (16 Strings); Can Pack as per Customers' Requirements as Well.
DC12V or DC5V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
