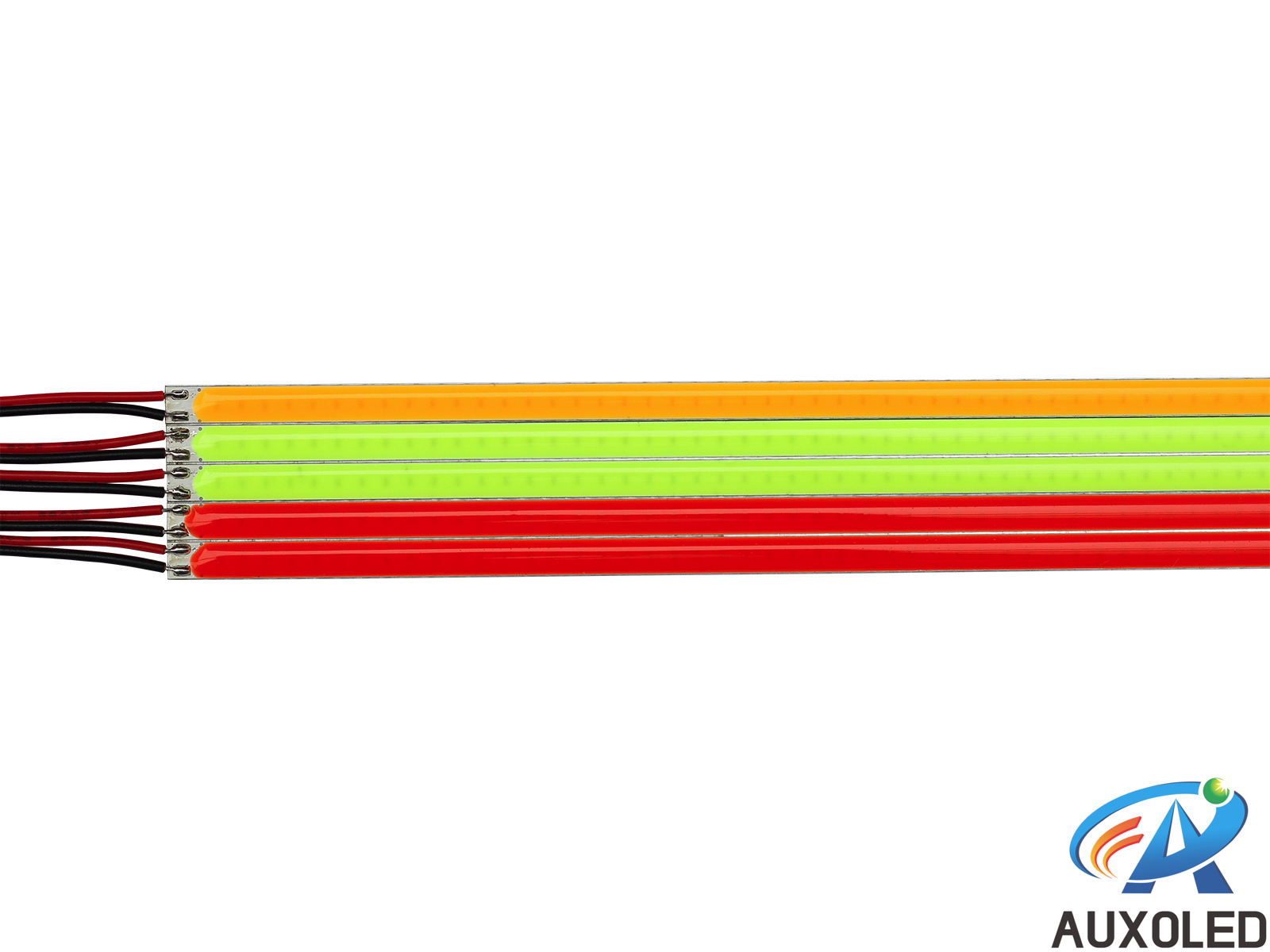

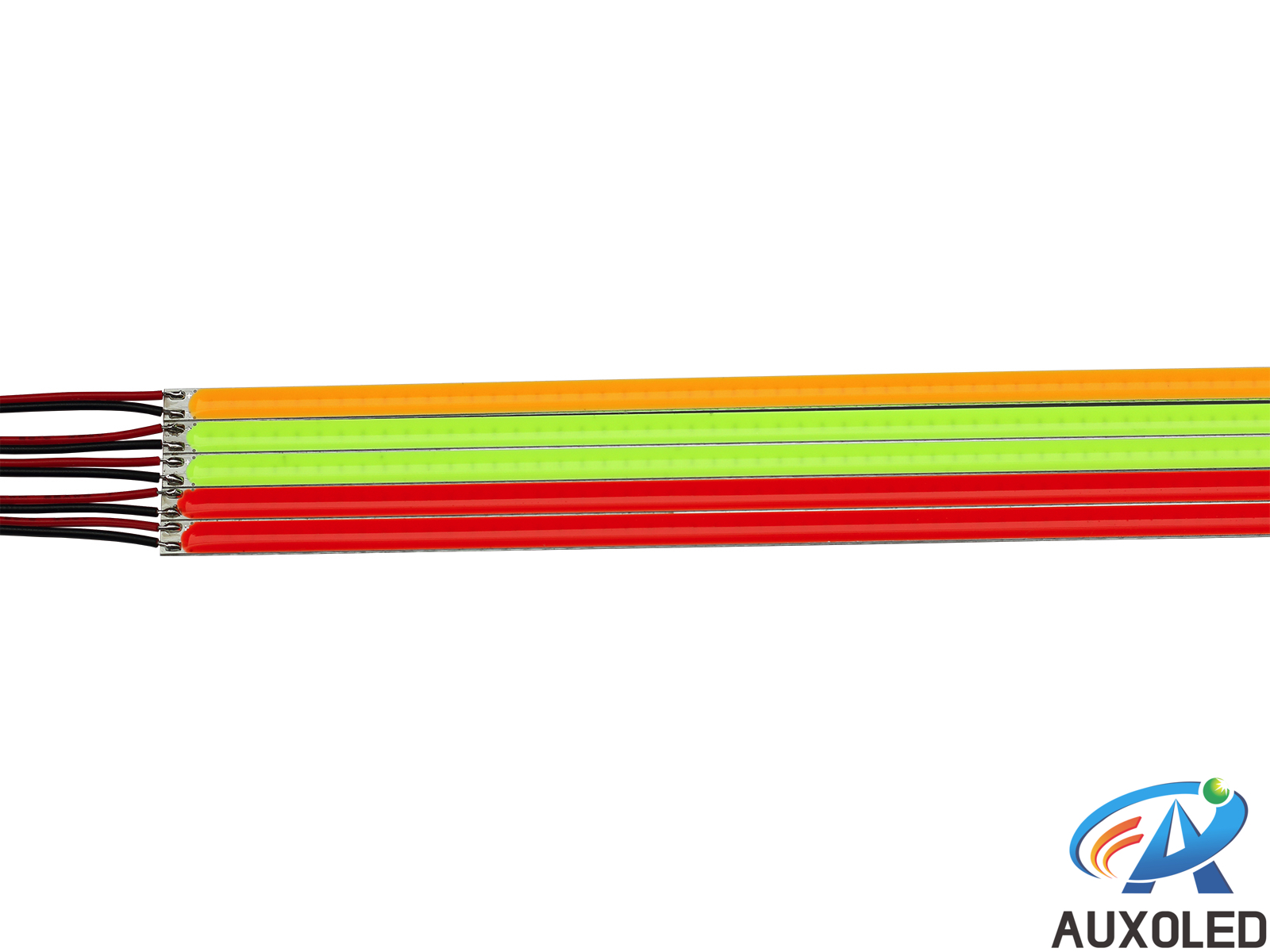

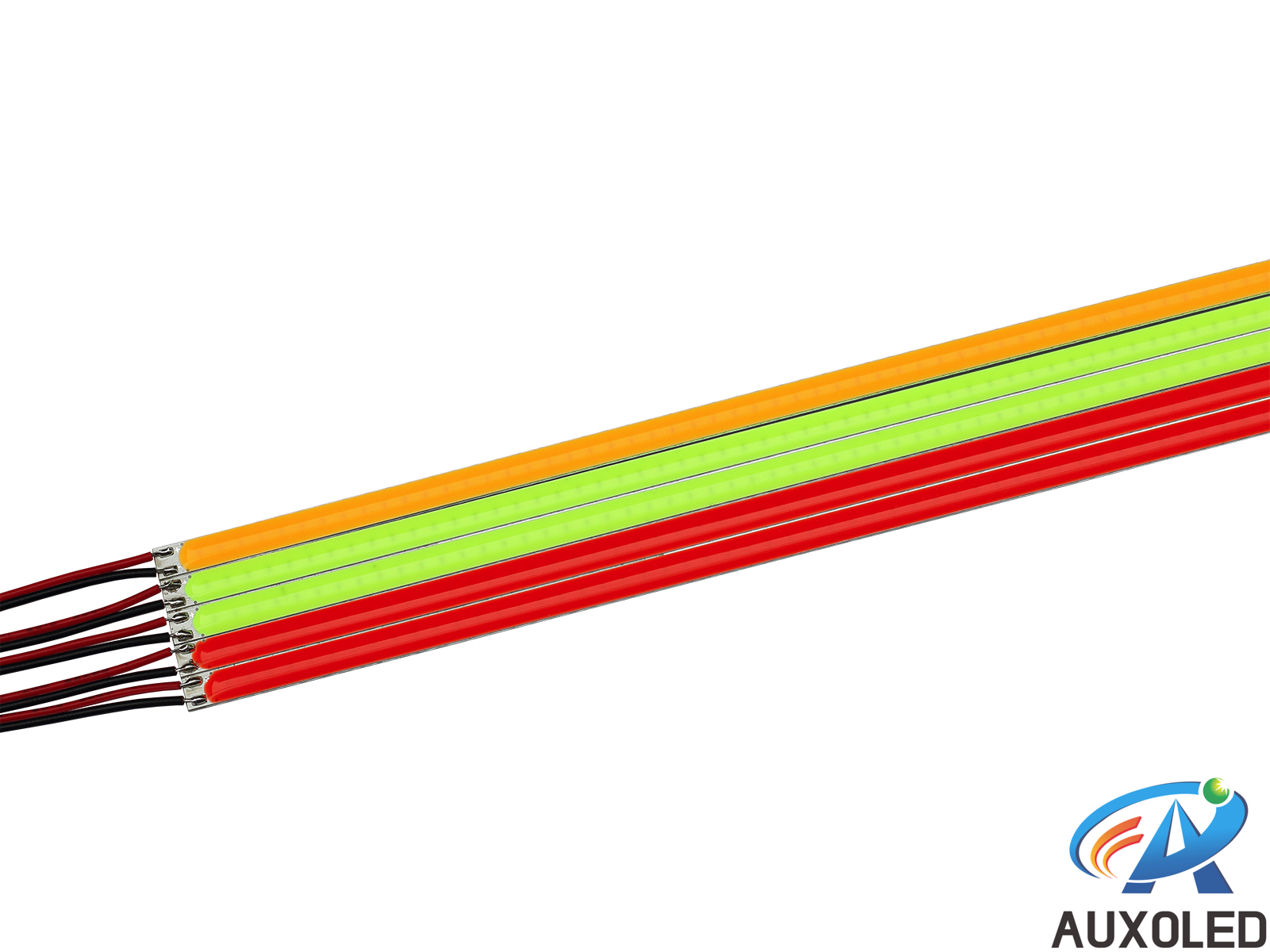

COB LED Cabinet Strip
- Item No:LVPCB6-1000-196LED0625-1P-12V
- views:211
Parameter Feature Detail Application
Item Name: DC12V 18W SMD0625 COB Aluminum Base Rigid LED Strip Cabinet Light Bar
Item No.: LVPCB6-1000-196LED0625W-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
PCB Dimensions: W6*L1000*T2.2 (mm)
Light Source: 196PCS SMD0625 LEDs
Beam Angle: 120°
CRI: >70
Input Voltage: DC12V
Power Consumption: 18W
Available Beaming Colors: Warm White (3000K), Netural White (4500K), Pure White (6000K), Red, Green, Yellow
Luminous Flux: 90-100LM / W (White)
PCB Material: 1.6MM Thick Aluminum Base
IP Class: IP20
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
Uniform Light Ray, No Dark Area, Multiple Colors for Multiple Applications
1.6MM Thick Aluminum Base with High Heat Sink Ability, Can Work with Thermal Conductive Adhesive Tape for Cooling Enhancement
Elegant and Even Glue Appearance, can Help with better Light Diffusion
DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: LVPCB6-1000-196LED0625W-1P-12V
Brand Name: AUXOLED
● Specific Parameters:
PCB Dimensions: W6*L1000*T2.2 (mm)
Light Source: 196PCS SMD0625 LEDs
Beam Angle: 120°
CRI: >70
Input Voltage: DC12V
Power Consumption: 18W
Available Beaming Colors: Warm White (3000K), Netural White (4500K), Pure White (6000K), Red, Green, Yellow
Luminous Flux: 90-100LM / W (White)
PCB Material: 1.6MM Thick Aluminum Base
IP Class: IP20
Working Temperature: -20℃~45℃
Working Lifespan: 50,000 Hrs
● Detail Form:
Input Voltage | Available Beaming Colors | Beam Angle | CRI | IP Class |
DC12V | WW/NW/PW/CW/R/G/Y |
120° |
>70 |
IP20 |
Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux |
LVPCB6-300-80LED0625W-1P-12V | W6*L300*T2.2 (mm) | 8W | 80PCS SMD0625 | 90-100LM / W |
LVPCB6-400-120LED0625W-1P-12V |
W6*L400*T2.2 (mm) |
12W | 120PCS SMD0625 | 90-100LM / W |
LVPCB6-500-140LED0625W-1P-12V |
W6*L500*T2.2 (mm) |
13W | 140PCS SMD0625 | 90-100LM / W |
LVPCB6-600-160LED0625W-1P-12V |
W6*L600*T2.2 (mm) |
15W | 160PCS SMD0625 | 90-100LM / W |
LVPCB6-1000-196LED0625W-1P-12V |
W6*L1000*T2.2 (mm) |
18W | 196PCS SMD0625 | 90-100LM / W |
● Advantages:
Use Imported Durable LED Chips, High Brightness and Excellent Quality, Super Long Working LifespanUniform Light Ray, No Dark Area, Multiple Colors for Multiple Applications
1.6MM Thick Aluminum Base with High Heat Sink Ability, Can Work with Thermal Conductive Adhesive Tape for Cooling Enhancement
Elegant and Even Glue Appearance, can Help with better Light Diffusion
DC12V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
