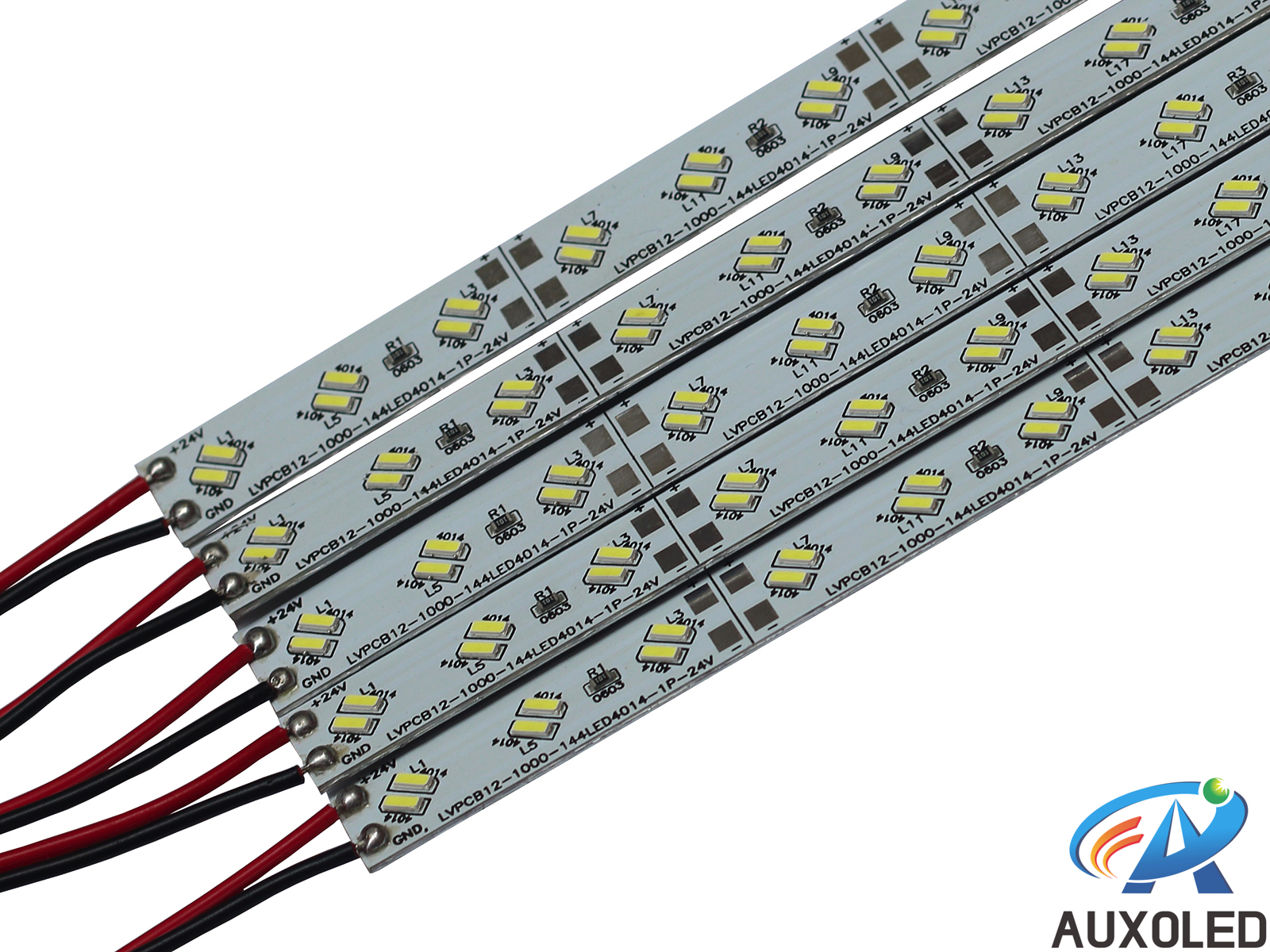

SMD4014 LED Strip
- Item No：LVPCB12-1000-144LED4014-1P-24V
- views：192
Parameter Feature Detail Application
Item Name: DC24V 28W SMD4014 Aluminum Base LED Strip
Item No.: LVPCB12-1000-144LED4014-1P-24V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W12*L1000*T2 (mm)
Light Source: 144PCS SMD4014 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V / DC24V
Power Consumption: 28W
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White)
Luminous Flux: 18-24LM / LED
PCB Material: 1.2MM Thick Aluminum Base
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
1.2MM Thick Aluminum PCB Base, Gorgeous Heat Sink Effect
120° Big Beam Angle, Uniform Light Ray, Anti-glare
DC12V or DC24V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Warehouse, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
Item No.: LVPCB12-1000-144LED4014-1P-24V
Brand Name: AUXOLED
● Specific Parameters:
Product Dimensions: W12*L1000*T2 (mm)
Light Source: 144PCS SMD4014 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: ＞70
Input Voltage: DC12V / DC24V
Power Consumption: 28W
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Pure White)
Luminous Flux: 18-24LM / LED
PCB Material: 1.2MM Thick Aluminum Base
Working Temperature: -30℃~65℃
Working Lifespan: 50,000 Hrs
● Detail Form:
| Input Voltage | Emitting Color | Beam Angle | CRI | IP Class |
| DC24V | WW/NW/PW/CW |
120° |
＞70 | IP20 |
| Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux |
| LVPCB12-1000-144LED4014-1P-24V | W12*L1000*T2 (mm) | 28W | 144PCS SMD4014 | 18-24LM / LED |
● Advantages:
Use Imported Epistar LED Chips, Super Long Working Lifespan1.2MM Thick Aluminum PCB Base, Gorgeous Heat Sink Effect
120° Big Beam Angle, Uniform Light Ray, Anti-glare
DC12V or DC24V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
● Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Counter, Corridor, Cafe, Hotel, Park, Warehouse, Advertising Backlight, etc.
● Certificates:
CE, RoHS
● Warranty:
2 Years
